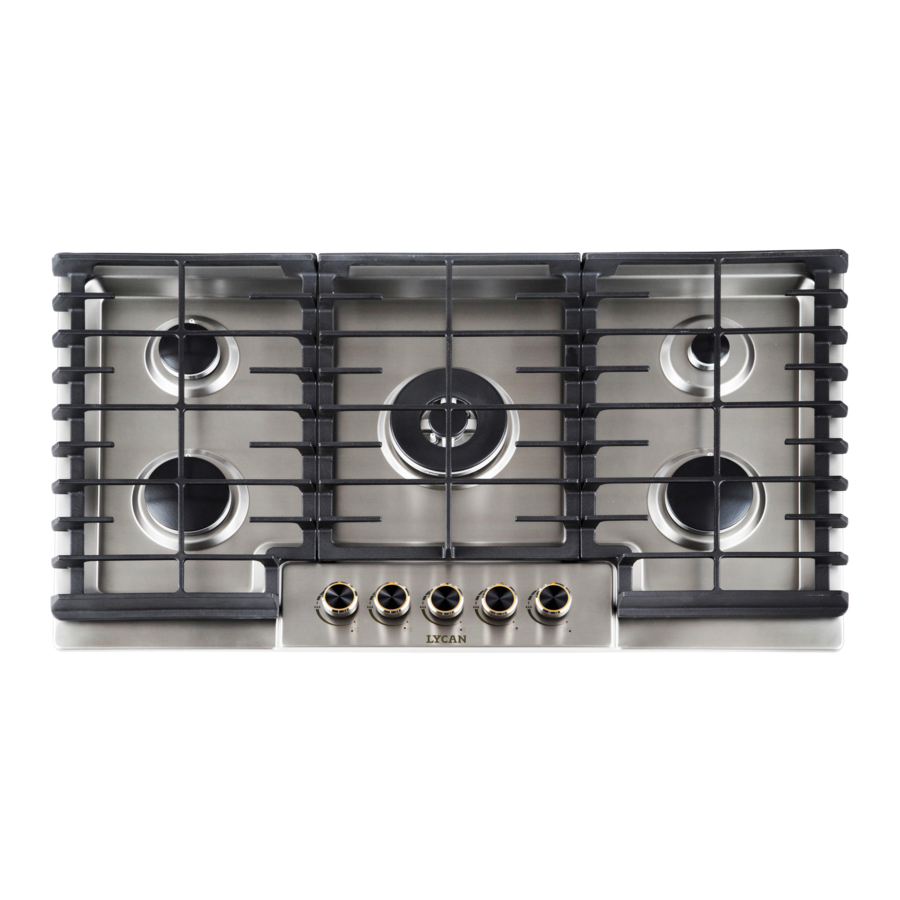

  • Page 1 NATURAL GAS COOKTOP ( LPG convertible ) AKT3620 AKT3020 USER INSTRUCTIONS...

  • Page 2: Table Of Contents

    READ AND SAVE THESE INSTRUCTIONS MANUAL CONTENTS 1. General..................1 2. Safety information..............1-2 3. Technical Specifications............3 4. Installing the gas cooker tops............ 4-6 5. Ventilation.................. 6-7 6. Operating the Appliance............. 7-8 7. Conversion Kits................8-16 8. Warning..................16 9.
  • Page 3 CAUTION Provide ample ventilation. This gas appliance consumes air (oxygen). Do not use this appliance in an unventilated space to avoid endangering your life. If still more gas appliances and/or occupants using gas are added to the space, additional ventilation must be provided. IMPORTANT Read these instructions carefully before using this appliance.
  • Page 4 WARNING NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven. WARNING Electrical Grounding Instructions This appliance is equipped with a (three-prong) (four- prong) grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded receptacle.

  • Page 5: General

    1. General • The gas cooker top is an economic gas appliance designed for an optimal cooking experience using natural gas. This appliance can also convert to LP gas with changing the orifice, hose and regulator. Please refer to section 7 the conversion kit for details. This gas appliance conforms to ANSI Z21.1-2016.
  • Page 6 General safety precautions • Please read all the instructions and warnings on the appliance before use. • If the appliance has any visible damage or is defective, do not operate the appliance. • Do not do any repairs or modifications on the appliance. •...

  • Page 7: Technical Specifications

    3. Technical Specifications Destination American (USA) Model number AKT3620 AKT3020 AC Electricity 120V, 50/60Hz 120V, 50/60Hz Type of Gas 4 i.w.c 4 i.w.c Gas inlet Pressure Rating 10,200 BTU / hr 10,200 BTU / hr Left front 1.53 mm / 0.06 inch 1.53 mm / 0.06 inch...

  • Page 8: Installing The Gas Cooker Tops

    4. Installing the gas cooke tops • We accept no liability for this service and the installation is the buyers responsibility. • The installation, including gas connections, must be carried out by a registered gas installer. • Installations by unauthorized persons will void any warranty by us and any third party.
  • Page 9 • It is good practice to ensure that the control knobs on the hob are off when not in use. • Open the valve on the pipe to check for leaks, with the control knobs in the "off " position. •...

  • Page 10: Ventilation

    Cut Out Details Dimensions A-Width of B-depth of C-depth of D-Wodth of E-To front of cooktop cooktop cooktop basc cooktop basc countcrtop 76 cm/30” 51 cm/20.1” 48 cm/18.9” 73 cm/28.74” 2” /5.1 cm 90 cm/36” 51 cm/20.1” 48 cm/18.9” 87 cm/34.25” 2“...

  • Page 11: Operating The Appliance

    If there is no window or door available for room ventilation, extra ventilation must be installed for your safety. Do not install this appliance in a room below ground level. Room size Ventilation opening Smaller than 5m³ min. 100cm² 5m³ and >10m³ min.

  • Page 12: Conversion Kits

    After lighting, adjust the control knob to the desired cooking power. Reset all control knobs to the "OFF" position after using a programmable timing operation. No attempt should be made to operate the appliance during power failure. Keeping appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
  • Page 13 Please note the chart below as an easy reference for the various orifice opening sizes for the different valves in the grill. Destination American (USA) Model number AKT3620 AKT3020 120V, 50/60Hz 120V, 50/60Hz AC Electricity Type of Gas 4 i.w.c...
  • Page 14 Before conversion, please ensure all necessary parts and tools are present. Ensure all burner control knobs are in the "OFF" position, the pipe valve is closed, and the pipe is disconnected from the regulator and removed from the cooker top. Unplug any electrical connections.
  • Page 15 Step 4. Save the orifices removed from the appliance for future use. And then put the right burner caps onto the burner base. Step 5. Connect the electric plug and the pipe, then open the valve on the pipe, ignite all the burners and then see if the flame looks normal works on the maximum flame position or not.
  • Page 16 Step 7. Re-assembly the washer, knob and pot stand onto the cooker top and then you finish the conversion steps and enjoy to use this appliance with LP gas. 7.2 LPG to NG Conversion If you want to convert the appliance back to NG, please use the NG orifices you stored with your manual from the previous conversion.
  • Page 17 Destination American (USA) Model number AKT3620 AKT3020 AC Electricity 120V, 50/60Hz 120V, 50/60Hz Type of Gas 4 i.w.c 4 i.w.c Gas inlet Pressure Rating 10,200 BTU / hr 10,200 BTU / hr Left front Orifice 1.53 mm / 0.06 inch 1.53 mm / 0.06 inch...
  • Page 18 Step 1. Convertible regulator under the cooktop, remove cap and pop out the Pin. Step 2. Pull out pin and flip it to the NG position as below picture shows. Step 3. Take off the burner caps from the burner and then replace the orifice to NG orifice.
  • Page 19 Step 5. Connect the electric plug, pipe and then open the valve on the pipe, ignite all the burners and then see if the flame looks normal works on the maximum flame position or not. If not, then turn off all the control knob. Wait until the burner cool down, and then re- assembly the jet by seals.

  • Page 20: Warning

    Step 7. Re-assembly the washer, knobs and pot stand onto the cooker top and then you finish the conversion steps and enjoy to use this appliance with LP gas. 8. Warning • Do not let unauthorized persons interfere with your hob. •...

  • Page 21: Cleaning

    9. Cleaning • Allow the appliance to cool down before you clean it. • Use a damp cloth wrung out in a solution of soapy water to clean the exterior and cylinder storage area of your hob. • Make sure that no water gets onto the burners or pilot/light area. Wipe the hob completely dry before use.

  • Page 22: Returning The Appliance For Repair, Service & Warranty

    12. Returning the appliance for Repair, Service & Warranty If your appliance needs to be returned under warranty, ensure that a gas practitioner removes the appliance. • Do not modify the appliance. This may cause the appliance to become unsafe. Any modifications will render the Hallman warranty null and void.

  • Page 23: Wiring Diagrams

    13. Wiring diagrams...
  • Page 24 AKT3620 Description Part# Cast Irom Grill(left) HZ10001 Cast Irom Grill(right) HZ10002 Cast Irom Grill(middle) HZ10003 1# Big burner cap HZ10004 1# small burner cap HZ10005 1# big burner HZ10006 2# Burner cap HZ10007 2# Aluminum burner HZ10008 3# Burner cap...
  • Page 25 AKT3020 Description Part# Cast Irom Grill(left) HZ10001 Cast Irom Grill(right) HZ10002 Cast Irom Grill(middle) HZ10003 1# Big burner cap HZ10004 1# small burner cap HZ10005 1# big burner HZ10006 2# Burner cap HZ10007 2# Aluminum burner HZ10008 3# Burner cap HZ10009 3# Aluminum burner HZ100010...
  • Page 26 The warranty does not apply to damage result ng from abuse, accident, natural disaster, loss of electrical power to the product for any reason, alterat on, outdoor use, improper installat on, and improper operat on, repair or service of the product by anyone other than an authorized Lycan Group, service agency or representative.
  • Page 27 Lycan Group is not responsible for incidental or consequental damages. Under no circumstances will Lycan Kitchen’s liability exceed the cost that you paid for the product. Some states do not allow the exclusion or limitation ofincidental or consequential damages, so the above limitations or exclusion may not apply to you.
  • Page 28 You can register to activate your product warranty online to receive full benefit of Lycan Group warranty service support@lycankitchen.com Please rest assured that under no conditions will Lycan Kitchen sell your name or any of the information your provide to us. We are very grateful that you have chosen Lycan Kitchen products for your home.
