MOUNTING

The Lindgren-Pitman Line Setter should be mounted on or near the transom of the boat such that the line will fall

overboard as it leaves the exit. The line setter may be mounted from the deck with optional mounting stand or

mounted to existing rigging if available.

HYDRAULIC REQUIREMENTS

12 GPM @ 1,500 PSI Maximum operating requirements

* The hydraulic source must be stable and uninterrupted. Additional equipment operating on this circuit may cause

pulsations unacceptable for smooth line setter operation. Hydraulic pulsations may cause the line to escape from

the rollers and contribute to accelerated roller wear.

LINDGREN-PITMAN, INC.

LS-5 Line Setter

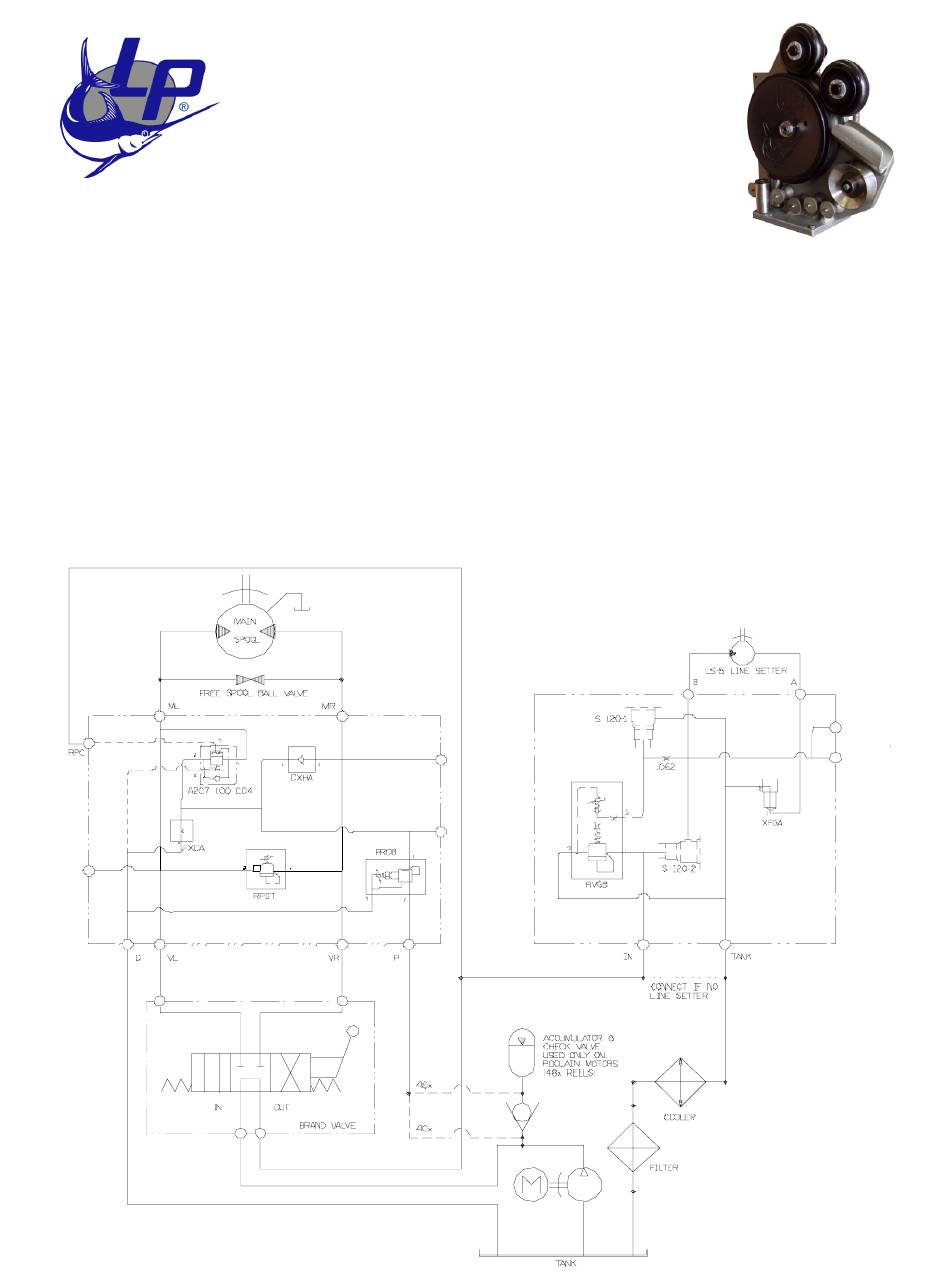

Hydraulic Diagram - Super Spool III - LS-5 Line Setter

Table of Contents

Need help?

Do you have a question about the LS-5 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lindgren-Pitman LS-5 Series

Page 1 MOUNTING The Lindgren-Pitman Line Setter should be mounted on or near the transom of the boat such that the line will fall overboard as it leaves the exit. The line setter may be mounted from the deck with optional mounting stand or mounted to existing rigging if available.
Page 2 Correct freewheeling conditions are normally obtained by utilizing a Lindgren-Pitman direct drive monofilament long line drum with a line setter pilot input circuit installed at the factory. Lindgren-Pitman monofilament type long line spools not factory supplied with this circuit can be field retrofited. Monofilament long line spools with drives not similar to Lindgren-Pitman equipment may or may not work properly with a line setter.
Page 3 Speed Indicator (optional] The Lindgren-Pitman line setter has a speed indicator programmed to display the line exit speed in knots and tenths of a knot. It is powered by the magnetic pickup and requires no external power. With the use of an extension cable from the magnetic pick up to the display unit it can be remote mounted.
Page 4 Install the new drive element noting that the tapered inner surface of the drive element and the outer surface of the drive wheel slope the same way. ADJUSTMENT PROCEDURE FOR LINDGREN-PITMAN SPOOLS USING LINE SETTERS ìCounterbalance Adjustmentî...
Page 5 Hook Depth Calculation Chart For Use With Lindgren-Pitman LS-Series Line Setters To find the line setter speed setting, you must know the distance between float buoys and the desired sag of the main line be- tween those floats. 1) Divide the desired sag by the...
