Summary of Contents for pro master NP-F770

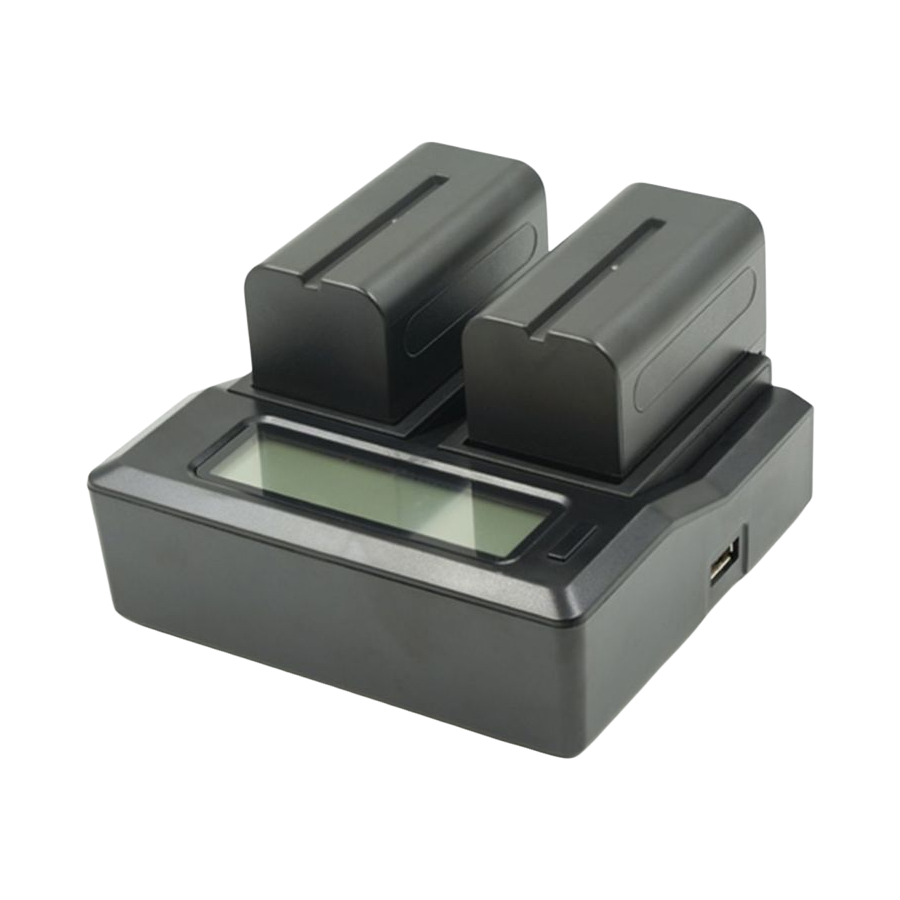

- Page 1 Please read and follow all instructions before using this product. User Manual Thank you for purchasing the ProMaster 9498 Dual Charger Kit. Please read these instructions carefully before operating the product and keep this manual for future reference. n Parts Diagram...
- Page 2 n Charger Specifications: Input: AC 100 V - 240 V 50 - 60 Hz 1.5 A (max) DC 12 - 24 V 3000 mA (min) Output Voltage: DC 8.4 V/12.6 V/16.8 V Output Current: L 1,000 mA x 1 | 500 mA x 2 H 1500 mA x 1 | 800 mA x 2 USB Output: 5 V 2100 mA n Battery Specifications (each): 7.4 V 4400 mAh 32.5 Wh n Instructions for Use 1. Choose either the AC cable for household use or the DC cable for use in a vehicle. Connect just one of them to the dual charger and then connect the other end of the cable to the appropriate power receptacle. The LCD display will illuminate to show the unit has power. 2. Install the batteries which need charging into the unit by sliding them into the charging slot(s). You can charge one battery in either slot or use both slots at the same time. After installing the batteries, the charger will detect the load and start pre-charging. The LCD graphic will blink gradually.
- Page 3 Icon Definition Function Declaration High current When the H icon appears, high current charging charging mode mode is engaged. For 1 battery the current is 1.5 A and for 2 batteries the current is 0.8 A Low current When the L icon appears, low current charging charging mode mode is engaged. For 1 battery the current is 1.0 A and for 2 batteries the current is 0.5 A Battery icon This icon appears to show a battery is installed in the corresponding charging slot. Battery This percentage will appear for each battery slot as capacity a battery is being charged. It provides an percent rate approximate charged amount and changes in units of 10 at a time. USB power When the USB Power symbol displays, the dual charger is charging a USB device. Car Charger If this symbol appears blinking, it means there is not icon enough electrical input for the battery or batteries installed. Switch to AC input or a car receptacle with higher voltage /amperage. n Precautions 1. Only use NP-F type batteries with compatible connections. 2. Remove batteries when their charging cycle is complete. 3. Avoid exposing the dual charger to moisture including rain and snow. 4.
