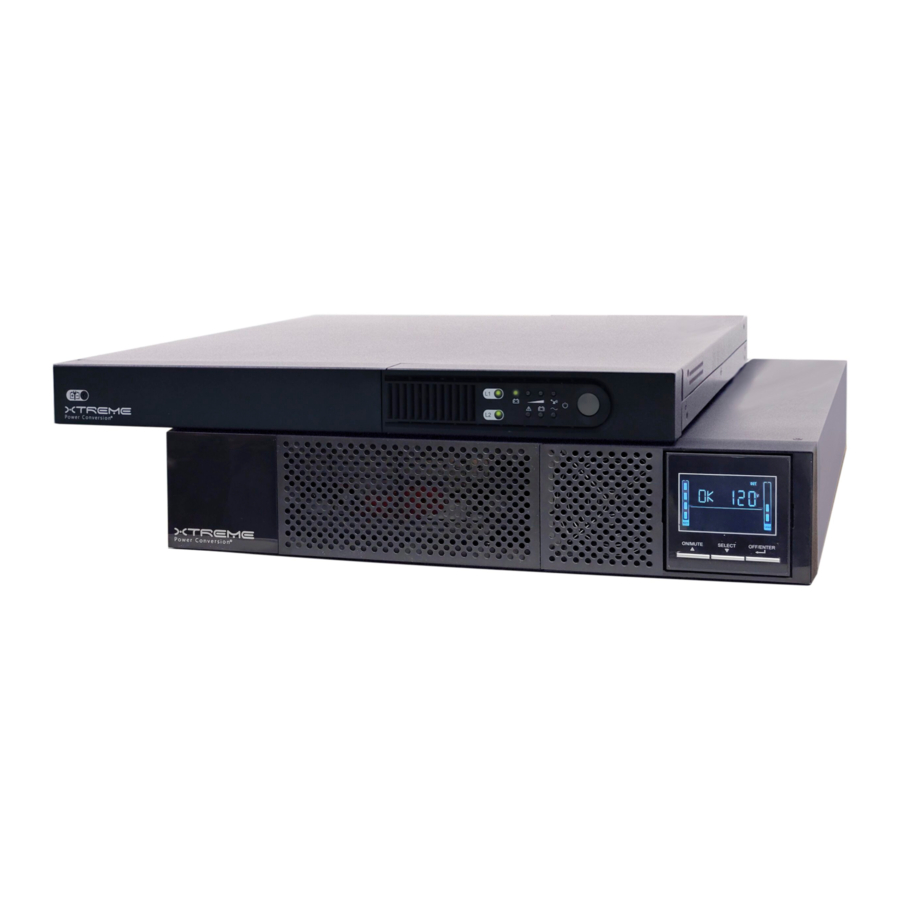

Xtreme P91g-1.5kLi User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P91/P91g Li UPS
1.5K/2K/3K
Uninterruptible Power Supply System
Version: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P91g-1.5kLi and is the answer not in the manual?

Questions and answers

Summary of Contents for Xtreme P91g-1.5kLi

  • Page 1 P91/P91g Li UPS 1.5K/2K/3K Uninterruptible Power Supply System Version: 1.0...

  • Page 2: Table Of Contents

    Table of Contents 1. Important Safety Warning ................... 1 1-1. Transportation ........................... 1 1-2. Preparation ..........................1 1-3. Installation ..........................1 1-4. Operation ..........................2 1-5. Maintenance, service and faults ....................2 2. Installation and setup ..................4 2-1. Rear panel view ........................4 2-2.

  • Page 3: Important Safety Warning

    1. Important Safety Warning Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

  • Page 4: Operation

    1-4. Operation Do not disconnect the mains cable on the UPS system or the building wiring outlet ⚫ (shockproof socket outlet) during operations since this would cancel the protective earthing of the UPS system and of all connected loads. The UPS system features its own, internal current source (batteries). The UPS output ⚫...
  • Page 5 When changing batteries, install the same number and same type of batteries or ⚫ battery packs. Manufacturer Type Rated LIFE-485000 48 V dc, 5.0 Ah 76.8 V dc, 2.5 Ah LIFE-722500 Please replace the fuse only with the same type and amperage in order to avoid fire ⚫...

  • Page 6: Installation And Setup

    2. Installation and setup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1. Rear panel view IEC Type 1.5K NEMA Type 1.5K 1.
  • Page 7 8. Emergency power off function connector (EPO) 9. External battery connection...

  • Page 8: Operating Principle

    2-2. Operating principle The operating principle of the UPS is shown as below Output Input Dynamic Bypass The UPS is composed of mains input, EMI/RFI Rectifier Inverter EMI/RFI filters, rectifier/PFC, Filters /PFC inverter, battery charger, DC-to-DC converter, battery, dynamic bypass and DC-to-DC Converter UPS output.

  • Page 9: Setup The Ups

    National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1". Model P91-1.5kLi/P91g-1.5kLi P91-2kLi/P91g-2kLi P91-3kLi/P91g-3kLi Note: Check if the site wiring fault indicator lights up in LCD panel. It will be illuminated when the UPS is plugged into an improperly wired utility power outlet (Refer to Troubleshooting section).
  • Page 10 non-critical devices to the programmable outlets and critical devices to the general outlets. During power failure, you may extend the backup time to critical devices by setting shorter backup time for non-critical devices. Step 3: Communication connection Communication port: USB port RS-232 port Intelligent slot To allow for unattended UPS shutdown/start-up and status monitoring, connect the...

  • Page 11: Battery Replacement

    Step 6: Turn on the UPS Press the ON/Mute button on the front panel for two seconds to power on the UPS. Note: The battery charges fully during the first five hours of normal operation. Do not expect full battery run capability during this initial charge period. Step 8: Install software For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown.
  • Page 12 front panel. Step 4 Step 5 Step 6 After replacing the batteries, Re-connect the battery Put the front panel back to the put the battery box back to wires. unit. original location and screw it tightly.

  • Page 13: Operations

    3. Operations 3-1. Button operation Button Function ➢ Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS. ➢ Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at least 3 seconds to disable or enable the alarm ON/Mute system.
  • Page 14 Function Display Backup time information Indicates the estimated backup time. H: hours, M: minute, S: second. Configuration and fault information Indicates the configuration items, and the configuration items are listed in details in section 3-5. Indicates the warning and fault codes, and the codes are listed in details in section 3-7 and 3-8.

  • Page 15: Audible Alarm

    3-3. Audible Alarm Battery Mode Sounding every 5 seconds Low Battery Sounding every 2 seconds Overload Sounding every second Fault Continuously sounding Bypass Mode Sounding every 10 seconds 3-4. LCD display wordings index Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Active open...

  • Page 16: Ups Setting

    3-5. UPS Setting There are three parameters to set up the UPS. Parameter 1 Parameter 1: It’s for program alternatives. Parameter 2 Refer to below table. Parameter 2 is the setting options or values for each program. 01: Output voltage setting ⚫...
  • Page 17 04: ECO enable/disable ⚫ Interface Setting Parameter 2: Enable or disable ECO function. You may choose the following two options: ENA: ECO mode enable DIS: ECO mode disable (Default) 05: ECO voltage range setting ⚫ Interface Setting Parameter 2: Set the acceptable high voltage point and low voltage point for ECO mode by pressing Down key or Up key.
  • Page 18 For 120 Models 85-115: setting the low voltage point in parameter 3 from 85Vac to 115Vac. (Default: 85Vac) 08: Bypass frequency range setting ⚫ Interface Setting Parameter 2: Set the acceptable high frequency point and acceptable low frequency point for Bypass mode by pressing the Down key or Up key.

  • Page 19: Operating Mode Description

    Interface Setting Parameter 2: Set up the charger maximum current. 1/2/4/6/8: setting the charger maximum current 1/2/4/6/8 in Ampere. (Default: 4A) Recharge time VS charging current is as below table. Unit: hours 1500VA 2000VA 3000VA 11.4 16: EPO logic setting ⚫...

  • Page 20: Faults Reference Code

    Online mode When the input voltage is within acceptable range, UPS will provide pure and stable AC power to output. The UPS will also charge the battery at online mode. ECO mode Energy saving mode: When the input voltage is within voltage regulation range, UPS will bypass voltage to output for energy saving.
  • Page 21 Sounding every 2 seconds Over Charge Sounding every 2 seconds Site wiring fault EPO enable Sounding every 2 seconds Over temperature Sounding every 2 seconds Charger failure Sounding every 2 seconds Sounding every 2 seconds Battery fault (At this time, UPS is off to remind users something wrong with battery) Out of bypass voltage range Sounding every 2 seconds...

  • Page 22: Troubleshooting

    4. Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm even The AC input power is not Check if input power cord though the mains is normal. connected well.

  • Page 23: Storage And Maintenance

    Symptom Possible cause Remedy Fault code is shown as 14 on LCD The UPS shut down Check output wiring and if display and alarm is continuously automatically because connected devices are in sounding. short circuit occurs on the short circuit status. UPS output.

  • Page 24: Specifications

    6. Specifications 2U P91 Li models MODEL P91-1.5kLi P91-2kLi P91-3kLi CAPACITY 1500VA (1350W) 2000VA (1800W) 3000VA (2700W) INPUT 55–150VAC* / 50/60Hz auto-sensing Voltage 100**/110/115/120/127 Vac selectable Waveform <=2% THD (linear load), <=4% THD (non-linear load) OUTPUT Frequency 50/60Hz +/-0.1Hz Efficiency Up to 98% Overload capacity >...
  • Page 25 2U P91g Li models MODEL P91g-1.5kLi P91g-2kLi P91g-3kLi CAPACITY 1500VA (1350W) 2000VA (1800W) 3000VA (2700W) INPUT 110-300 VAC* / 50/60Hz auto-sensing Voltage 200**/208**/220/230/240 Vac selectable Waveform <=2% THD (linear load), <=4% THD (non-linear load) OUTPUT Frequency 50/60Hz +/-0.1Hz Efficiency Up to 98% Overload capacity >...
  • Page 26 Output Power Rating Table (only for 100/110/115/120/125 VAC system) Model name Input rating Output rating 100-125Vac, 50/60Hz, 100/110/115/120/125Vac, 50/60Hz, 1Ø P91-1.5kLi 12A, 1Ø 1500VA/1350W,12A (@125Vac input) ; 1500VA/1300W,12.5A (@120Vac input) ; 1500VA/1270W,13A (@115Vac input) ; 1500VA/1200W,13.6A (@110Vac input) ; 1350VA/1040W,13.5A (@100Vac input) 100-125Vac, 50/60Hz, 100/110/115/120/125Vac, 50/60Hz, 1Ø...
