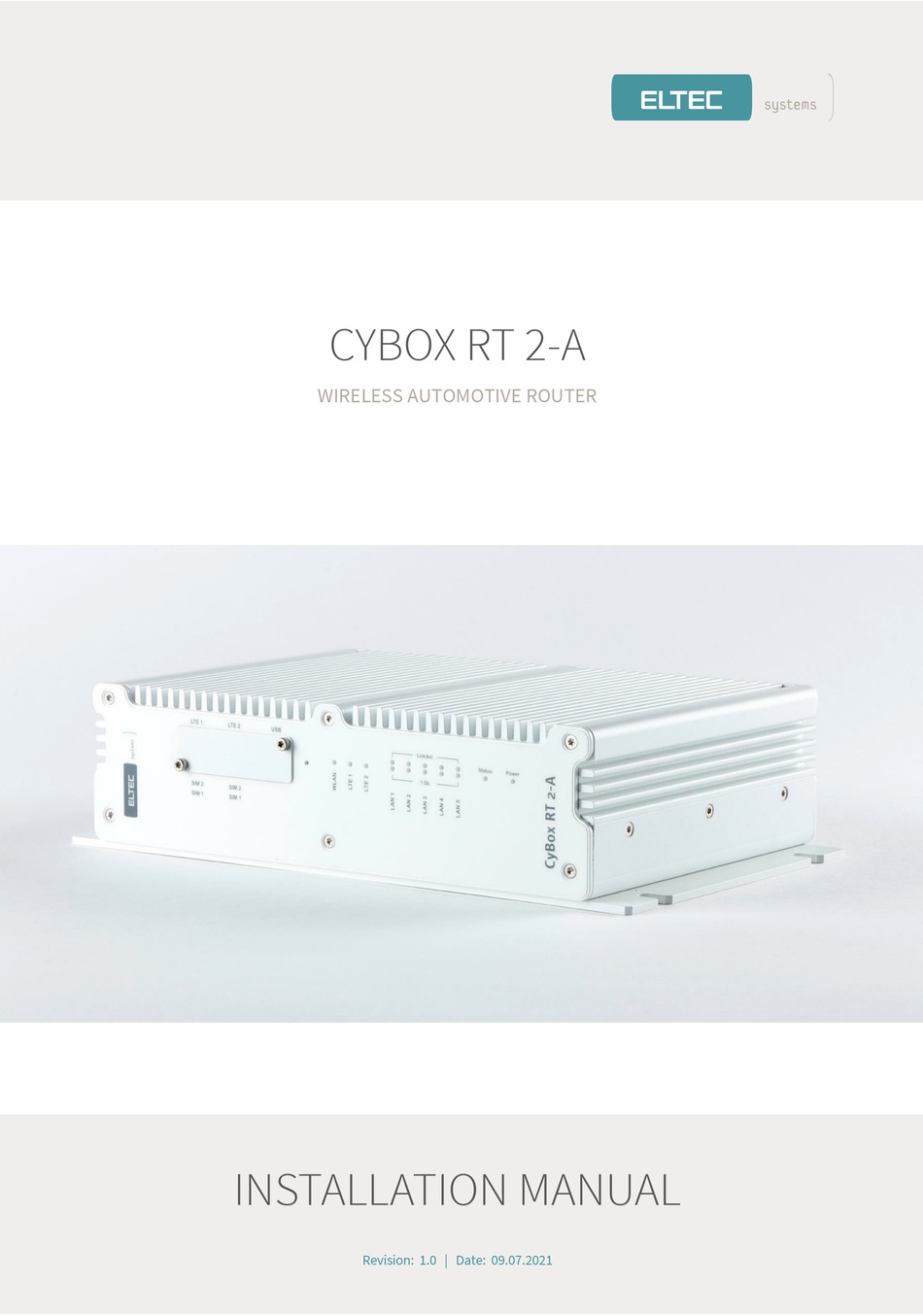

- Page 1 CYBOX RT 2-A WIRELESS AUTOMOTIVE ROUTER INSTALLATION MANUAL Revision: 1.0 | Date: 09.07.2021...
- Page 2 CYBOX RT 2-A LIST OF CHANGES ISSUE CHANGE DESCRIPTION DATE Initial version 2021-07-09...
- Page 3 The complete risk inherent in the utilization of this document or in the results of its utilization shall be with the user; to this end, ELTEC Elektronik AG shall not accept any liability. Regardless of the applicability of respective copyrights, no portion of this document...
- Page 4 EU DECLARATION OF CONFORMITY ELTEC Elektronik AG herewith declares that the device is compliant to the basic requirements of the directive 2014/53/EU. The full text of the EU declaration of conformity is available in the Download Center at www.eltec.com.
- Page 5 CYBOX RT 2-A CONTACT ELTEC Elektronik AG Galileo-Galilei-Straße 11 55129 Mainz Germany +49 6131 918 100 +49 6131 918 195 Email info@eltec.com www.eltec.com...
-
Page 6: Table Of Contents
CYBOX RT 2-A CONTENTS ABOUT THIS DOCUMENT OVERVIEW Product HARDWARE Device Connectors 3.1.1 Power Supply Connectors 3.1.2 Ethernet Interfaces 3.1.3 CAN Interfaces 3.1.4 Antenna Connectors Power Supply 3.2.1 Power Input Front and Back Panel Distribution 3.3.1 Front Panel Service Cover 3.3.2... - Page 7 CYBOX RT 2-A LIST OF TABLES Table 1 Pin Assignment of Power Supply Connector (PWR) Table 2 Pin Assignment of RJ45 Ethernet Connectors (LAN 1..5) Table 3 Pin Assignment of CAN Connectors Table 4 Front Panel Service Cover Table 5...
- Page 8 CYBOX RT 2-A LIST OF FIGURES Figure 1 Picture of CyBox RT 2-A Front Figure 2 Picture of CyBox RT 2-A Back Figure 3 Front Panel Overview Figure 4 Back Panel Overview Figure 5 SIM Slot Assignment per Modem Figure 6...
-
Page 9: About This Document
CYBOX RT 2-A ABOUT THIS DOCUMENT This installation manual is intended only for system developers and integrators; it is not intended for end users. It describes the hardware functions of the product, connection of peripheral devices and integration into a system. Additional information on special applications and the configuration of the product is available in a separate configuration manual which can be downloaded from the Download Center at www.eltec.com. -
Page 10: Overview
CYBOX RT 2-A OVERVIEW PRODUCT This installation manual comprises all information to set-up the following product. Figure 1 Picture of CyBox RT 2-A Front Figure 2 Picture of CyBox RT 2-A Back... -
Page 11: Hardware
Table 1 Pin Assignment of Power Supply Connector (PWR) 3.1.2 ETHERNET INTERFACES The LAN ports of the CyBox RT 2-A are utilizing RJ45 connectors with the pin assignment as shown in Table 2 below. Mating connectors are available from several manufacturers. SIGNAL NAME... -
Page 12: Can Interfaces
CAN INTERFACES The CAN interfaces of the CyBox RT 2-A are utilizing D-Sub 9 connectors. Two CAN connectors are available (in and out) to connect one CAN device only. Both CAN connectors provide the same CAN signals so that a CAN-typical bus topology connection can be realized. -
Page 13: Power Supply
FRONT PANEL SERVICE COVER The CyBox RT 2-A is equipped with a USB 2.0 Type A service port and 4 SIM slots, which are located behind the service cover as shown in Figure 3 and described in Table 4. The USB port can be used to attach a memory device to update the firmware or to configure the device. -
Page 14: Back Panel Distribution
CYBOX RT 2-A 3.3.2 BACK PANEL DISTRIBUTION The figure below provides an overview of the back panel. Figure 4 Back Panel Overview CONNECTOR FUNCTION DESCRIPTION Earthing Bolt Shield The earthing bolt can be found on the lower left side of the front panel... -
Page 15: Led Indicators
CYBOX RT 2-A LED INDICATORS The LEDs on the front panel of CyBox RT 2-A provide quick indication of the device status. 3.4.1 POWER LED STATUS LED COLOR STATE DESCRIPTION Green Device is receiving correct input power Green Device is not powered... -
Page 16: Reset Switch
SIM CARDS The CyBox RT 2-A provides 2 SIM slots per LTE modem. Only one slot per modem can be active at any time. To install SIM cards the service cover has to be removed using a suitable torx 10 screwdriver. After installing the SIM cards the service cover must be closed and the screws tightened to a maximum torque of 0.55 Nm. -
Page 17: Mounting
CYBOX RT 2-A MOUNTING When mounting the CyBox RT 2-A please take the following aspects into account. Do not install the device close to any sources of heat such as radiators or heat registers. • Keep the device away from any liquids and avoid exposure to dripping or splashing. The protection •... -
Page 18: Connecting An Earthing Cable
CYBOX RT 2-A CONNECTING AN EARTHING CABLE A M6 earthing stud on the front panel of the device (also refer to Figure 3) for protective earth connection is essential for the device security. Carry out the following steps to connect an earthing cable.
