- Page 1 OPERATING and MAINTENANCE INSTRUCTIONS SUMNER PALLET TRUCKS (PJ20/PJ27) READ AND UNDERSTAND ALL INSTRUCTIONS AND SAFETY INFORMATION IN THIS MANUAL BEFORE OPERATING OR SERVICING THIS TOOL 09/20 (PJ20/PJ27 )
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY FIRST Important Safety Information ..........2-4 Safety is essential in the use and maintenance of Southwire Con- tractor Equipment. This instruction manual and any markings on the Introduction.................5 tool provide information for avoiding hazards and unsafe practices Dimensions………………….……………………..……………...5-6... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION • Never leave a loaded pallet truck unattended in the raised position. Always lower load to the floor. • Do not load pallet truck beyond its rated capacity. • Secure load before transporting. WARNING •... -
Page 4: Introduction

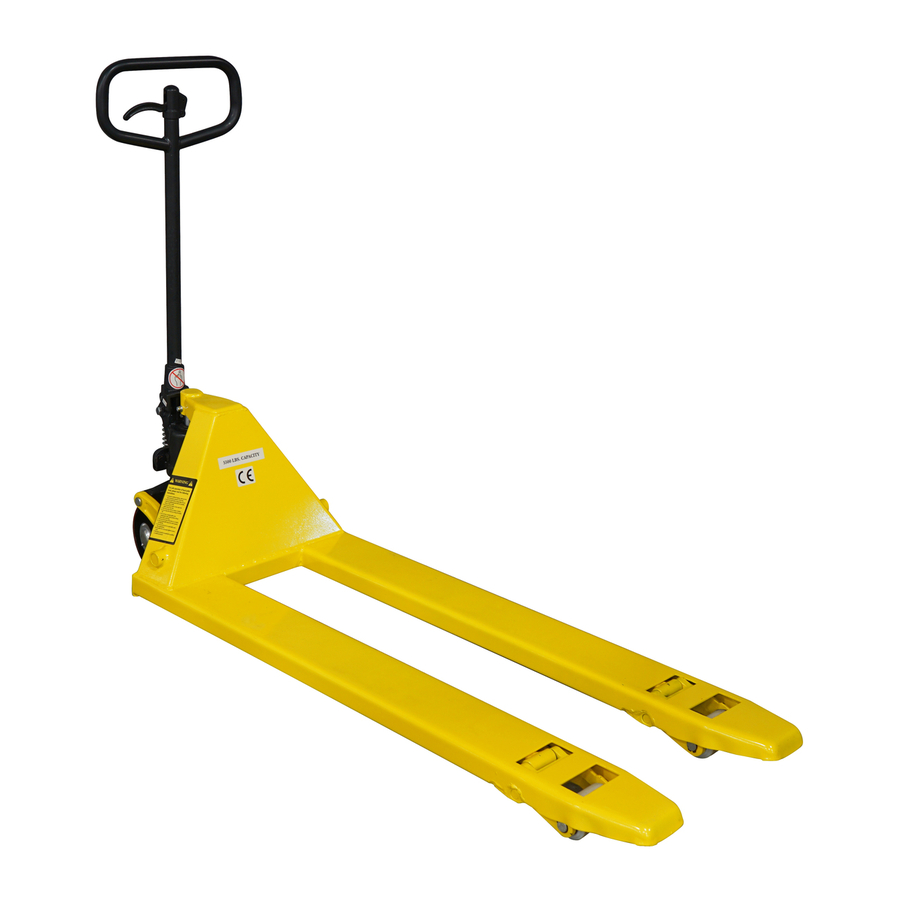

INTRODUCTION Description of Operation To better understand the proper use and safe operation of your All Models Sumner Pallet Truck, please take a few minutes to carefully read and follow the instructions contained in this manual. When Number of Strokes to Reach Maximum Height: finished reading and understanding the manual, please file in a safe and convenient location for the life of the pallet truck. -
Page 5: Setup And Operation
SETUP AND OPERATION SETUP AND OPERATION Step 2. - Stage hard ware kit (out of bag) & Manual on work table Step 5. - Insert Silver pin on either side of handle and base holes - Align silver pin holes with base receiver holes, with hammer tap silver pin inward, till flush with receiver base Step 3. - Page 6 SETUP AND OPERATION SETUP AND OPERATION Step 8. – Position Chain Bolt Chain Bolt Positioning Pic. 1- If dowel does not set Pic. 2- Using a crescent Pic. 3- Base dowel hole correctly, you will need to wrench, claim and rotate and silver pin hole should adjust silver pin silver pin in any direction,...
- Page 7 SETUP AND OPERATION SETUP AND OPERATION Step 11. – Test Lowered Position Pallet Jack Test - Down position Pic. 3- Using pliers, raise Pic. 4- Insure chain bolt is the cylinder lever, slip firmly set and nut is chain bolt into cylinder suppporting cylinder lever lever notch.
-
Page 8: Servicing
SERVICING TROUBLESHOOTING LUBRICATION TROUBLE PROBABLE CAUSE REMEDY Make sure there is no oil leakage from valve, Check the oil level annually by unscrewing oil fill plug (FIG 10). Low oil level in reservoir. and add oil. When changing or adding oil, fill the reservoir through the top plug Hydraulic unit does not lift. -
Page 9: Warranty
THAN THE RELEVANT WARRANTY SPECIFICALLY SET FORTH IN THIS WARRANTY more information about servicing for Sumner Products. SECTION. SOUTHWIRE WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES FOR ANY BREACH OF THIS LIMITED LIFETIME WARRANTY.
