Page 3
Horizontal Resolution Means 800 Pixel Means 1024 Pixel Means 1280 Pixel Means 1440 Pixel Means 1920 Pixel Vertical Resolution Means 480 Pixel Means 600 Pixel Means 768 Pixel Means 800 Pixel Means 900 Pixel Means 1024 Pixel Means 1080 Pixel...
Means Embedded PC or Panel PC Means Embedded PC without Case Means Panel PC with Case Means Touch Type Means Resistive Touch Means Capacitive Touch Means LCD Brightness Means Common Brightness Means High Brightness PCB Version Baseboard PCB Version Number...
Page 5
3 x USB 2.0 Host,1 USB OTG 1 Channel 1000M LAN 3.5mm Audio In/Out Connector, 2W Speaker Audio Internal Buzzer RS232 2 Channels RS485 2 Channels * 2 Channels GPIO None WiFi/BT On Board WiFi/BT HDMI 1 Channel SATA II...
Page 6
2*RS232+2*RS485+Bluetooth. The UART can be changed between RS232 and RS485 easily. If you want different RS232 and RS485 setting, please contact us. CS10600F070E- C131 www.chipsee.com...
Page 7

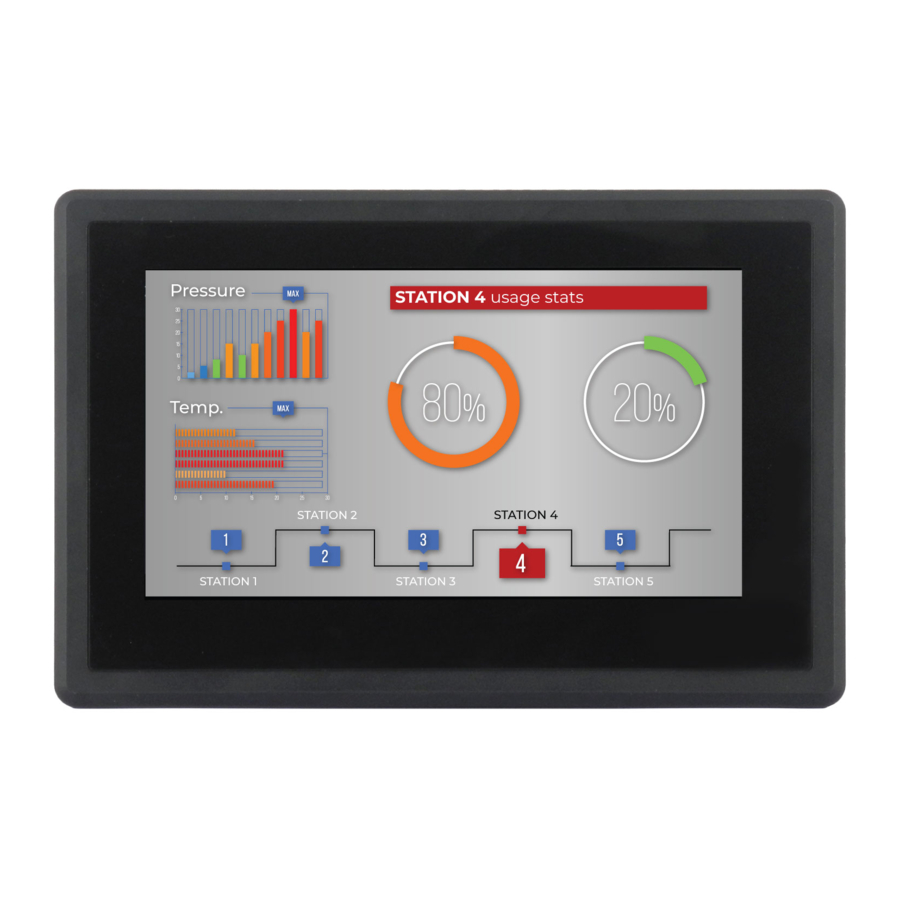

Figure 1 Top View (Android) www.chipsee.com...
Figure 2 Back View Power Input Connector The product CS10600F070E/CS10600F070P uses a wide range power input: 6~36V. The total power consumption is about normally. The Power Input Connector is 3 Pin 3.81mm Screw Terminal Connector as Figure 5 shows. The Character “+” means...
Page 9
The Character “G” means system Ground. Table 1 has detailed descriptions about the connector definition. Figure 3 Power Input Connector Table 1 Power Input Pin Definition: Pin Number Definition Description Connect to DC Power Positive Pin 1 Positive Input...
Page 10
The CAN+RS485+RS232 connector is a 16 Pin 3.81mm Screw Terminal Connector, as Figure 6 shows. As for the definition of every pin, please refer to Table 2. This product has 5 channels of UART in total, they can be configured as RS232 or RS485 freely.
Page 11
Pin 16 CAN2_H CPU CAN Channel 2 H signal Pin 15 CAN2_L CPU CAN Channel 2 L signal Pin 14 CAN1_H CPU CAN Channel 1 H signal Pin 13 CAN1_L CPU CAN Channel 1 L signal Pin 12 RS485_2- CPU UART2, RS485 –(B) signal...
Page 12
Capacitive Touch product CS10600F070E/CS10600F070P uses ten-point capacitive touch, as Figure 7 shows. Figure 7 Capacitive Touch Connector ATTENTION: Capacitive touch panels are very sensitive to power noise. Ripple voltage/current from the power adapter will cause the LCD ripples, and will also cause the capacitive touch malfunction: If you use the APK Multi-Touch under Android to test, you can find the touch point float.
“Power System Ground”. This method can eliminate the problem totally. User can also use another method to test this problem: touch the GND of CS12800F101P-C111 by one hand, the other hand operates on the capacitive touch screen. In this case, user’s body acts as the Power System Ground.
Figure 9 USB OTG Connector LAN Connector The product CS10600F070E/CS10600F070P has one channel 1000Mbit Ethernet Connector, as Figure 10 shows. www.chipsee.com...
Page 15
Figure 10 LAN Connector TF Card The product CS10600F070E/CS10600F070P has one TF (uSD) card connector as Figure 11 shows. This device supports TF (uSD) card up to 32GB. www.chipsee.com...
Figure 11 TF Card Connector ATTENTION: The TF card slot is NOT mounted with any TF card by default. Audio Connector The product CS10600F070E/CS10600F070P has one Audio Input (“Line-in”) and one Audio (“Line-out”) output, as Figure 12 shows. And the product has an internal 2W speaker.
HDMI Connector The product CS10600F070E/CS10600F070P has one HDMI connector as Figure 13 shows. The HDMI output resolution can be configured by software. Figure 13 HDMI Connector WiFi+BT The product CS10600F070E/CS10600F070P has one WiFi+BT. It uses www.chipsee.com...
Realtech RTL8723 which integrates WiFi and BT, as Figure 14 shows. For CS10600F070P, there is a connector on the backside case which can connect external WiFi/BT Antenna, as Figure 15 shows. Figure 15 WiFi+BT Antenna Boot Switch The product CS10600F070E/CS10600F070P has a boot switch which can be used to change boot sequence, as Figure 16 shows.
Boot Config Select: Mode TF Card eMMC Download Expansion Connector The product CS10600F070E/CS10600F070P has one Expansion Connector, as Figure 17 shows. This connector is labelled as P21 on the PCB, and it has connected to CPU GPIO/Camera/I2C signals. As for the definition of every Pin, please refer to Table 4.
Page 21
Measurements of CS10600F070E The measurement of CS10600F070E -C131 is 190*107.8*27.7mm, as Figure 18 shows. Mounting of CS10600F070E The product CS10600F070E can be mounted using the 4 screw holes on the PCB as shown in Figure 14.Please make sure the display is not exposed to high pressure when mounting into an enclosure.
Page 22
Measurements of CS10600F070P The measurement of CS10600F070P -C131 is 206*135*30.1mm. Mounting of CS10600F070P This product CS10600F070P can be mounted using the mounting set, as Figure 20 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure.
Figure 20 Mounting Method How to Get Support Chipsee assumes no responsibility for any errors, which may appear in this manual. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein.
