Summary of Contents for Santacary SA80

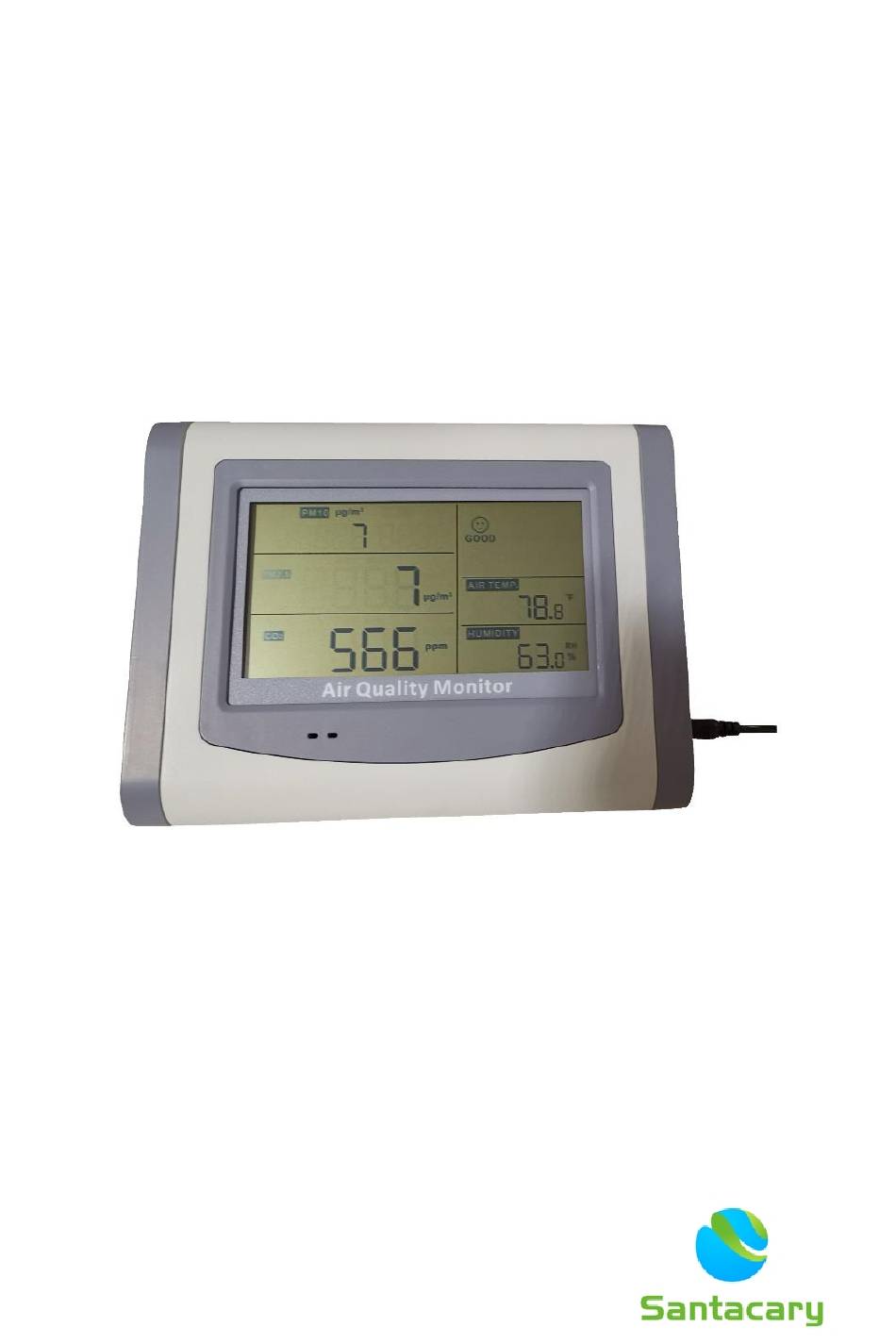

- Page 1 User Manual R1.0 Santacary Technology Co., Ltd. Indoor Air Quality Monitor SA80...
- Page 2 SA80 is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please read this manual carefully before use. This user manual will provide you with all the necessary information for the correct use of your SA80 Air Quality Monitor. Health Disclaimer...
-
Page 3: Unit Description
While the SA80 can detect levels of airborne particulates it cannot determine the health impact for any given individual. Respiratory ailments and allergic symptoms are caused by a variety of factors. The SA80 is not meant to be used in the treatment or mitigation of any medical condition. - Page 4 LCD Display Trend Change Arrows (Up or Down) PM10 PM2.5 CO2 concentration in ppm or x.xx% (>9,999 ppm) Air Quality Indicator Icon 6. Air Temperature...
- Page 5 7. % Relative Humidity Display with All Elements Shown in below figure. Trend Icons icon indicates that the reading is on the rise. The icon indicates that the reading is declining. Air Quality Icons There are faces icons showing the current air quality. They indicate Good, Normal, and Harm air quality respectively.
-
Page 6: Installation
µg/m3. <50 Installation Install the SA80 at a location and height in the room where you want to test the air quality. Be aware that particulate concentrations and CO2 concentration can vary dramatically from one location to another within the same house. -
Page 7: Operation
Automatic Background Calibration (ABC) is disabled. Theory of PM2.5 and PM10 Measurement: SA80 uses a laser scattering theory to obtain the number of particles in the equivalent particle size and volume units of different size through the algorithms based on MIE theory. -
Page 8: Button Operation
Button Operation 1. Fahrenheit and Celsius switching Button Press Fahrenheit and Celsius switching button to select two temperature units (℃ and ℉). 2. Minimum and Maximum Readings The monitor automatically records minimum and maximum CO2 levels. To view the minimum and maximum readings while in Normal Display: 1) Press MAX/MIN button to display the maximum reading. -
Page 9: Temperature Specification
SPECIFICATIONS PM2.5 Specification: Measurement range 0.3 to 2.5 μm particles Particle count efficiency 50% @ 0.3 μm; 98% @ ≥0.5 μm; Measurement range 0 to 1000 µg/m3 Resolution 1.0 µg/m3 Consistency of mass ±10 µg/m3 @ 0~100 µg/m3; concentration of particles ±10% @ 100~500 µg/m3 Temperature Range -10 to 50°C (14 to 122°F) -
Page 10: Maintenance
Temperature Range -10.0~60.0°C (14~140°F) display Display Resolution 0.1°C (0.1°F) Display Options °C/°F switchable Accuracy ±0.5°C (±0.9°F) Response Time 5~30 seconds (device must equilibrate with environment) RH Specification: Measurement Range 0.0~99.9%RH Display Resolution 1%RH Accuracy ±4.5%RH Response Time <8 seconds for 63% of step change General Specification: Operating 0°C~50°C (32°F~122°F), <95% RH... -
Page 11: Troubleshooting
Take care not to drop the unit; this could cause malfunctions which require service. WARRANTY The SA80 is warranted to be free from defects in material and workmanship for a period of one year from the date of purchase. This warranty covers normal operation and does not cover misuse, abuse, alteration, neglect, improper maintenance. - Page 12 Santacary Technology Co., Ltd. Zhaobei Building B, The 7th Industrial Road 75#, Shekou, Shenzhen, 518067, Guangdong, China Email: info@santacary.com Copyright © 2019-2022 Santacary Technology Co., Ltd. All rights reserved including the right of reproduction in whole or in part in any form.
