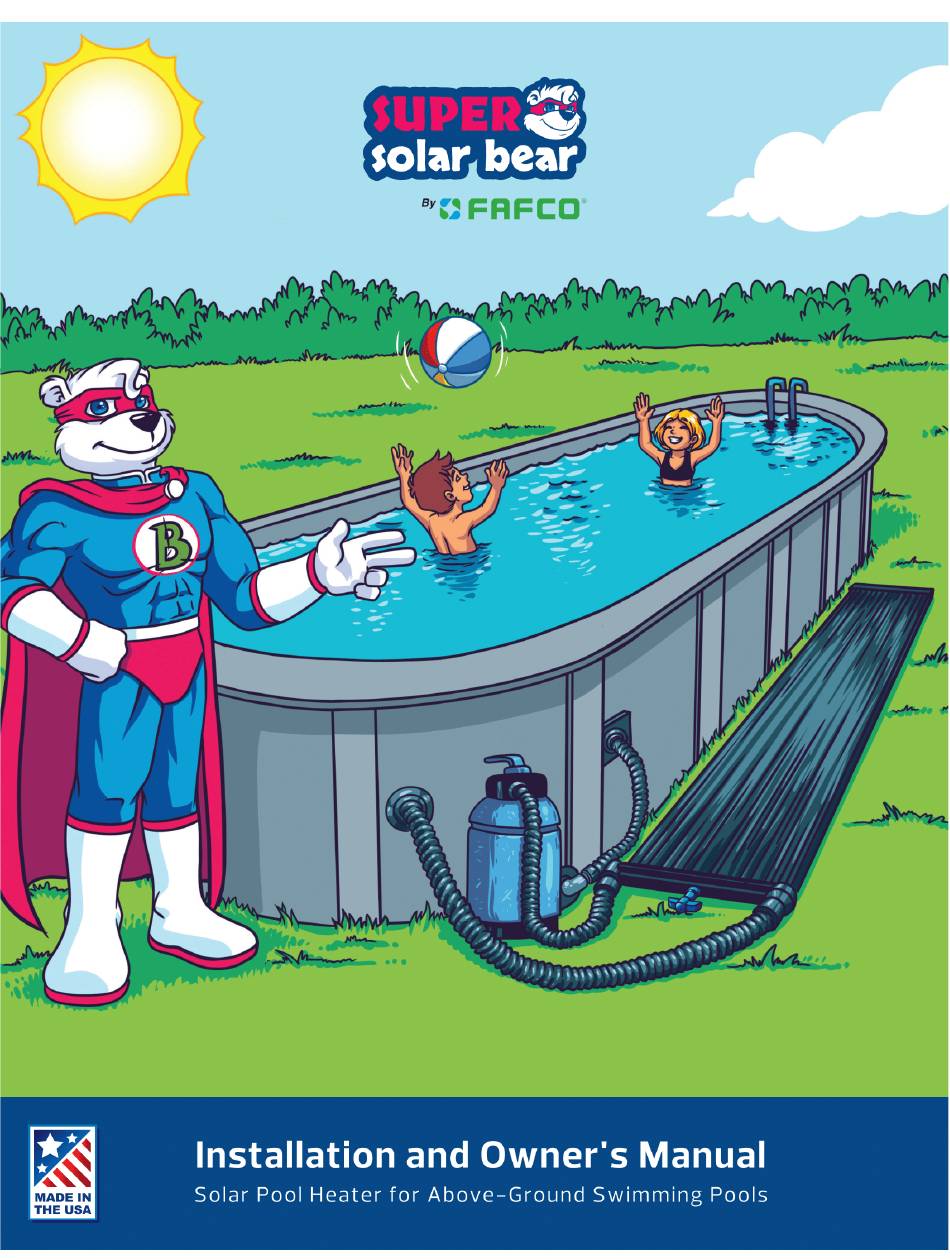

Summary of Contents for FAFCO SUPER solar beat
- Page 2 Troubleshooting… ..............8 Overview Thank you for choosing FAFCO for your solar swimming pool heating solution. This Solar Collector is proudly manufactured in the United States. Since 1969, we have provided high-quality, long- lasting products that help our customers save money on energy costs and reduce the environmental impact associated with traditional energy sources.
- Page 3 Overview (continued) Contents Your system includes one solar collector, along with mounting hardware, connection hardware, an integrated bypass valve and valve handle. See the list below for the contents of your exact system: Collector Kit Solar Collector with Handle Installation Kit (required) 1-1/2”...
-
Page 4: Installation
Installation 1) Determine location to install solar collector Select an unshaded location on the ground near the pool that is 1 foot wider and 1 foot longer than your collector’s footprint and receives full sun for most of the day. The solar collectors operate most efficiently when tilted 10 to 30 degrees towards the South, although they are still effective when facing West, East, or mounted flat. - Page 5 Installation (continued) 2) Roll out solar collector Lay the box containing the solar system near the selected installation location. Ensure there are no rocks or other sharp objects lying on the ground that could puncture the solar collector. Remove the contents and verify quantities using list shown in the overview.
- Page 6 Installation (continued) which case either end can be the inlet. Place a hose clamp on the end of the hose and push the hose onto solar collector end at least one inch past the raised ribs. Slide the hose clamp into place and tighten. Note: You may need to warm the hose end by placing it in hot water for several seconds to make it more pliable.
- Page 7 Installation (continued) Turn your pump on and check the hose clamps and plumbing for leaks. If there’s a leak, you may have to loosen the clamp, then push the hose further up onto the barb. Then tighten the hose clamps or couplers again. After the pump is on and has run for about 5 minutes, slowly turn the red handle (‘Solar On’...
-
Page 8: Operation
Operation WARNING: If the solar collector is full of water and has been sitting in the sun without the pump running, the water can get very hot. Hot water can cause burns, so be sure that everyone is away from the pool inlet each time the solar is turned on. When the solar system is running efficiently, the solar collector will be cool to the touch. -
Page 9: Troubleshooting Guide
A tube leak can be repaired if damage is located at least 2” away from the my solar collector header. Contact your local dealer, where you purchased the product or email service@fafco.com for more information on how to repair the solar collector. - Page 10 For above-ground swimming pool use only. Don’t forget, if you need more solar heat, you can always add another Solar Collector. (Check your product spec sheet for more information) For more information on your FAFCO product visit www.fafco.com/online-support P/N 10102 2/21...
