- Page 1 Silvus SC4200 – Triad RF Systems BDA Integration Manual Document Number TIM-61518 Version Date 06/15/2018 Triad RF Systems Confidential Triad RF Systems, Inc. 11 Harts Ln Suite i East Brunswick, NJ 08816...
- Page 2 Notice Triad RF Systems reserves the right to make changes to its products or discontinue any of its products or offerings without notice. Triad warrants the performance of its products to the specifications applicable at the time of sale in accordance with Triad’s standard warranty.
-
Page 3: Table Of Contents
2.2 Data Link Distance ................... 4 2.3 BDA Support Setting ..................4 DC and RF Connections .................... 5 3.1 Wiring Harness – Silvus SC4200 to Triad BDA Connections ......5 3.2 RF Connections ....................6 Troubleshooting ......................7 Triad RF Systems, Inc. Confidential... -
Page 4: Overview

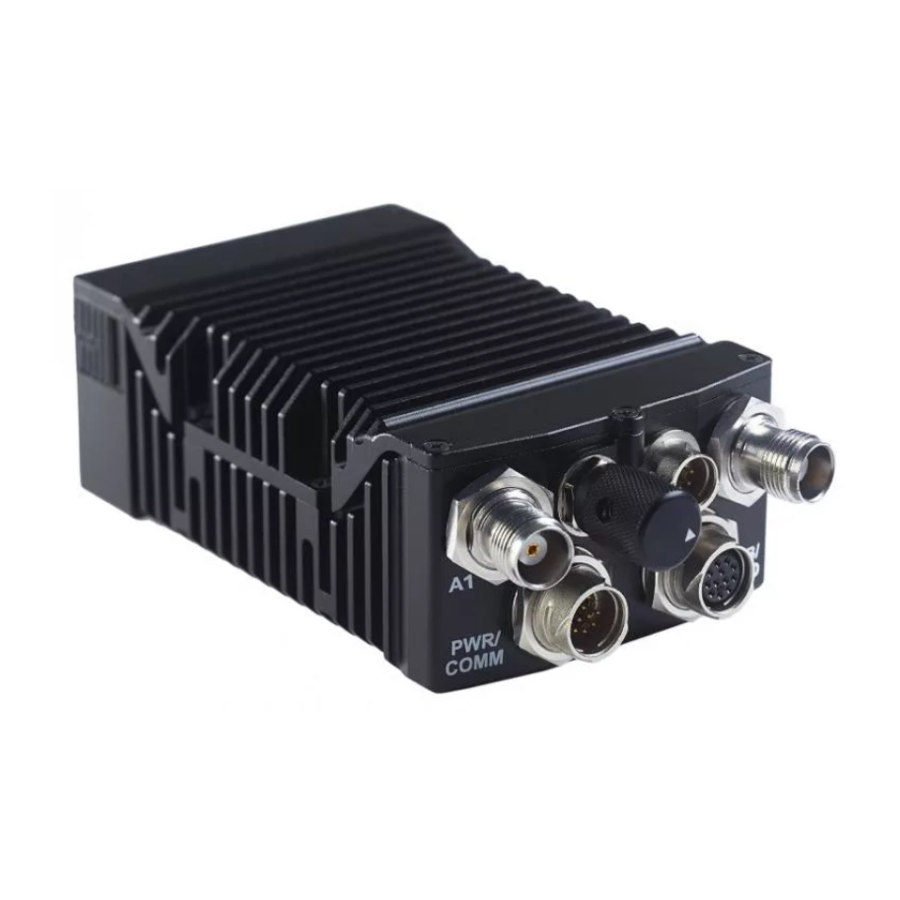

Overview This document details the integration and setup of a Silvus SC4200 data link radio with a compatible Triad RF Systems Bi-Directional Amplifier. This will include instructions for wiring connections as well as initial and ideal radio settings to maximize data link performance. -
Page 5: Initial Radio Configuration
Initial Radio Configuration Below is an outline of recommended settings for the Silvus SC4200, to be set prior to connecting to the Triad RF Systems BDA. Frequency Set the radio operating frequency within the range of the Triad BDA frequency range. -
Page 6: Dc And Rf Connections
Be sure to inspect both wire harnesses and connectors for damage or debris before connecting. Wiring Harness – Silvus SC4200 to Triad BDA Connections Below is a visual representation of the SC4200 wiring harness as well as a table of the required connections between the SC4200 and Triad BDA. -
Page 7: Rf Connections
Refer to the specification sheet for those limits. However, it is good practice to avoid operating the amplifier into an open circuit for an extended period of time. Triad RF Systems, Inc. Confidential Page 6... -
Page 8: Troubleshooting
Reduce radio output power in 0.5 dB steps until data than desired. power - EVM too high rate improves. For continuing issues, or to request any clarifications or additions to this document, please contact support@triadrf.com Triad RF Systems, Inc. Confidential Page 7...
