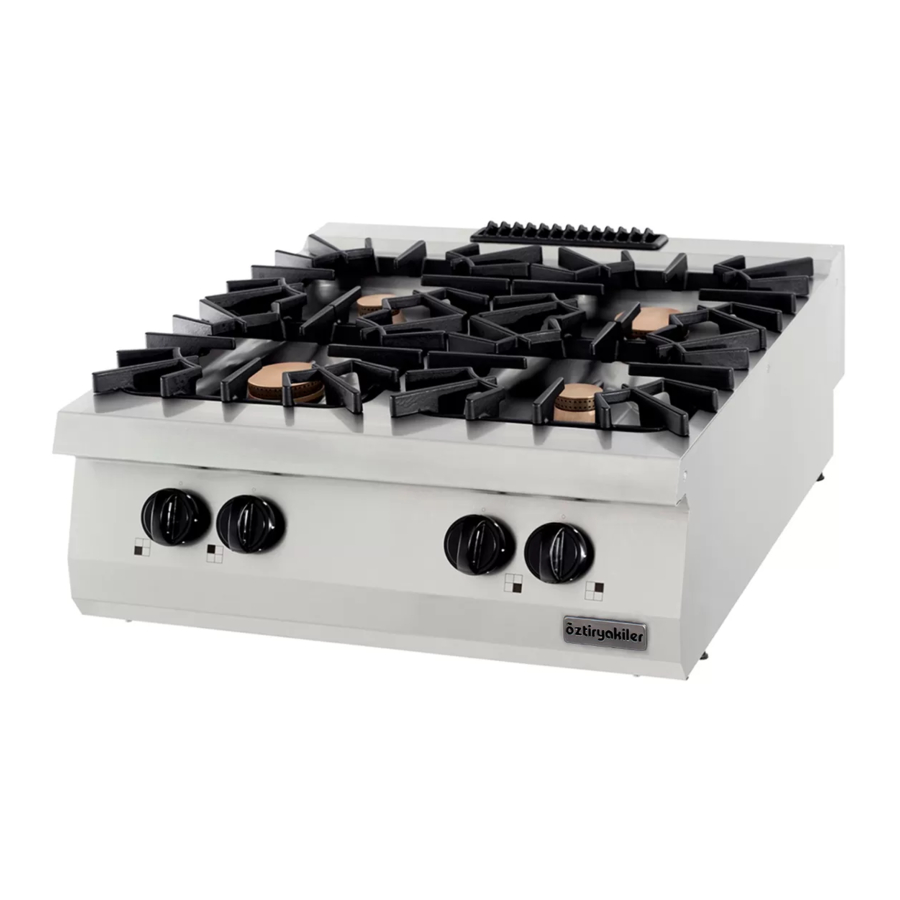

OVER BENCH COOKER ( WITH GAS )
USER'S MANUAL
PRODUCTION YEAR:
SERIAL NR:
-
1783
: ÖZTİRYAKİLER MADENİ EŞYA SAN. VE TİC A.Ş.
MANUFACTURER
PRODUCTION SITE : Beylikdüzü Eski Hadımköy Yolu 1.Km Büyükçekmece Istanbul/TURKEY
Phone: 0090 212 886 78 00 (8 Lines) Fax : 0090 212 886 66 29
Web :
www.oztiryakiler.com
e-mail: export@oztiryakiler.com.tr
1/16
VER:V13.01
: 01.01.2013
Published on :
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for OZTI OSOG 4090
- Page 1 OVER BENCH COOKER ( WITH GAS ) USER’S MANUAL PRODUCTION YEAR: SERIAL NR: 1783 : ÖZTİRYAKİLER MADENİ EŞYA SAN. VE TİC A.Ş. MANUFACTURER PRODUCTION SITE : Beylikdüzü Eski Hadımköy Yolu 1.Km Büyükçekmece Istanbul/TURKEY Phone: 0090 212 886 78 00 (8 Lines) Fax : 0090 212 886 66 29 Web : www.oztiryakiler.com e-mail: export@oztiryakiler.com.tr...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NR. TOPICS COVER PAGE TABLE OF CONTENTS INTRODUCTION TECHNICAL DATA MAIN DIMENSIONS AND WARNING SIGNS SAFETY DETAILS TRANSPORTING AND MOVING 10-11 INSTALLATION OF THE APPLIANCES CONTROL BOARD OPERATION OF THE APPLIANCES CLEAN-UP AND MAINTENANCE CHANGING THE GAS SYSTEM TERMS OF WARRANTY 2/16... -
Page 3: Introduction
INTRODUCTION Dear User, Thank you for purchasing our appliance and for your reliance upon our company. Our appliances are used in professional kitchens in 75 countries. Our appliances are produced in compliance with international standards. Important notice: Please read and ensure that the users read this user’s manual in order to achieve the desired performance in line with your expectations and to use your appliance for long years. -
Page 4: Technical Data
TECHNICAL DATA 4/16... - Page 5 TECHNICAL DATA 5/16...
-
Page 6: Main Dimensions And Warning Signs
MAIN DIMENSIONS AND WARNING SIGNS HOT SURFACE SAMPLE LABEL Figure 1: Main Dimensions and Warning Signs 6/16... -
Page 7: Safety Details
SAFETY DETAILS ☞ Do not leave the appliances under direct sunlight. ☞ The appliances should only be operated under a chimney hood. ☞ If the appliances is operated using a LPG gas cylinder, the distance between the appliances and gas cylinder should be minimum 50 cm. - Page 8 SAFETY DETAILS ☞ The appliances should not be handled by unauthorized persons except for the manufacturer or authorized service. ☞ In case of fire or flame in the area where the appliances is operated, act without panic, close gas valves, turn off the power switches and use a fire extinguisher.
-
Page 9: Transporting And Moving
TRANSPORTING AND MOVING CHANGING THE LOCATION; Machines installed by an authorized service CANNOT BE MOVED ELSEWHERE, ITS CONNECTION HOSES AND CABLES CANNOT BE EXTENDED OR REPLACED except by an authorized service. ☞ The appliances can be moved with supplementary vehicles like fork lift ☞... -
Page 10: Installation Of The Appliances
INSTALLATION OF THE APPLIANCES THE DISTANCE BETWEEN THE GAS CYLINDER AND THE APPLIANCES SHOULD BE MIN. 50 cm If this appliances located near to any wall, separation, kitchen furniture, decorative coating etc. the distance in between should be min. 20 cm. and if those are coated with fireproof heat insulating material, the distance should be min. - Page 11 INSTALLATION OF THE APPLIANCES ☞ Gas connection inlet dimensions are defined at the table of TECHNICAL DATA. ☞ After the appliances is connected to the system gas usage should be checked with soap bubble method. ☞ Air inlet adjustment is done by the authorized personnel if necessary, after checking the appliances.
-
Page 12: Control Board
CONTROL BOARD Front Cooker Back Cooker A- SAFETY VALVE 12/16... -
Page 13: Operation Of The Appliances
OPERATION OF THE APPLIANCES A. GENERAL INFORMATION • Open burner hob is used in kitchens of restaurants, fast food stands, canteens, hospitals etc. In order to grill meat like material fish, chicken, meatball, hamburger, steak etc. Before initial use of the appliances, whole outer surface should be wiped with a cloth soaked in warm water and soap. -
Page 14: Clean-Up And Maintenance
CLEAN-UP AND MAINTENANCE 1. CLEAN-UP: Before initial use, and before and after subsequent uses, of the appliances, entire outer surface should be wiped with a sponge and liquid detergent. After such clean-up, the plate surface should be smeared with fat/oil as a thin layer. Do not use CHEMICAL CLEANING AGENTS like hydrochloric acid etc. -
Page 15: Changing The Gas System
TYPE POWER ( KW ) PRESSURE=21 mbar PRESSURE=30 mbar 1,68 m³/h 1,25 kg/h OSOG 4090 2,1 m³/h 1,57 kg/h OSOG 4090 P OSOG 4090 S 1,26 m³/h 0,94 kg/h 3,35 m³/h 2,51 kg/h OSOG 8090 1,04 m³/h 0,78kg/h OSOG 8090 C 4,19 m³/h... -
Page 16: Terms Of Warranty
TERMS OF WARRANTY 1- Documents without sales date, factory and sales company approval on, are not valid. In order to benefit from the warranty, warranty document should be presented. 2- If the appliance is installed and operated following the instructions in the installation, maintenance and user's manual, it is warranted for failures sourcing from materials and workmanship .
