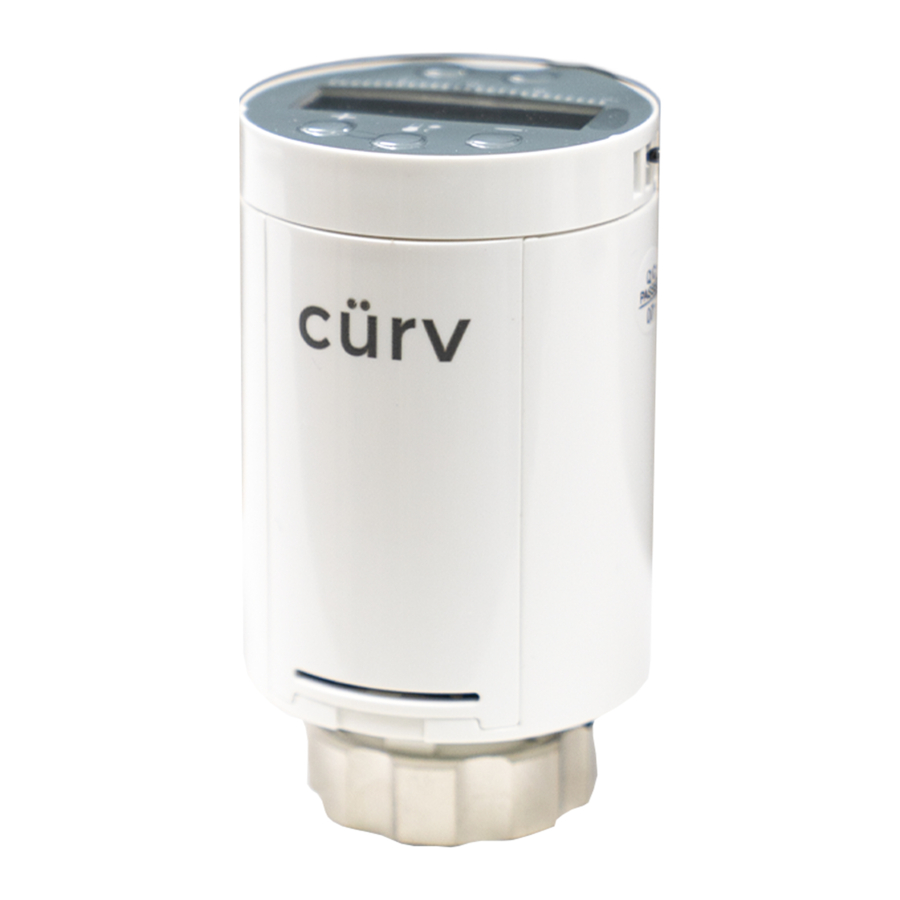

  • Page 1 Curv Smart Advanced TRV Kit...
  • Page 2 Content Instructions Adapter Introduction Timer Introduction Wiring Diagram Gateway Introduction Pairing Controller Settings Link APP...
  • Page 3 Controller button description Controller Appearance Model switch button:switch work mode, automatic mode or manual mode,automatic mode is programming run. (1) Auto / Manual Programmable button Programmable button:short press the button to enter the programming interface;press the (3) UP (5) DOWN button for more than 3 seconds to enter the button button time setting interface.

  • Page 4: Controller Specifications

    Controller specifications Controller Power Method Power source: 2 AA batteries Open battery cover (Don’t use the rechargeable battery) After installing the battery then put the battery cover back on Battery lifetime: Up to 1 year (subject to use) Temperature setting range：5 ~30 Temperature setting accuracy: 0.5 Temperature display range: 0 ~50 Operation temperature range 0 ~50...

  • Page 5: Controller Installation

    Controller Installation Adapter Selection Install the batteries Display show Pls confirm valve diameter flushing Danfoss 1/2 valve 3/4 valve （RA） long plunger （RAV） Install controller with When push road is M30*1.5 screw thread flush with base Interface of valve . Tighten the copper ring Caleffi...

  • Page 6: Adapter Installation

    Adapter Installation Caleff 1/2 valve (RA) 1/2 valve Adapter, please put directly on the valve, forced to press the accessories and valves can be stuck. Giacomini 3/4 valve（RAV） 1/2 valve Danfoss 3/4 valve need install long Giacomini 1/2 valve need install short plunger at plunger at the buttom of controller.

  • Page 7: Button Descriptions

    Button Descriptions RF Boiler Receiver Relay Indicator: LED1:Water heating indicator: ON mode :the green light keep bright AUTO mode:the blue light keep bright (in output) the blue light flash(no output) OFF mode:the light is not no LED2:Heating indicator: ON mode :the green light keep bright AUTO mode:the blue light keep bright (in output) the blue light flash(no output) Antenna...

  • Page 8: Specifications

    Specifications Timer wiring diagram Power source：100-240VAC , 50/60Hz IP Rating：IP21 100-240V,0.15A Input power Operation temperature range：0~50 ， Shipping & storage temperature：-10 〜60 Output ： 1 channel passive linkage ( Water heating ) COM1 NC1 NO1 COM2               Max load 250VAC 10(6)A            1 channel active linkage (He ating)  ...
  • Page 9 230V Combi boiler Low voltage/dry contact combi boiler Power Power supply supply for Heat for Heat Link Link COM1 COM2 COM1 COM2 100-240V 100-240V 0.15A 0.15A Boiler Boiler...
  • Page 10 S-plan Y-plan Power Power supply supply for Heat for Heat Link Link COM1 COM2 COM1 COM2 100-240V 100-240V 0.15A 0.15A GR BW GR BW 1 Com BL GR Boiler Heating Water Boiler Zone valve Hot water valve valve water tank tank...
  • Page 11 District heating with electrical control valve Gateway Appearance Power 125mm supply for Heat Link LED1 LED2 AP/WIFI LED3 80mm COM1 COM2 POWER 100-240V 0.15A Reset button Power Switch button 26mm District heating valve...
  • Page 12 Gateway indicator/button description Gateway specifications Indicator: Power source : Connect DC 5~12V 1A LED1:WIFI indicator : AP/WIFI IP Rating : IP21 AP direct hot spot mode status: The green light flashing fast Operation temperature range：0 ~50 WIFI status: The blue light keep bright Shipping &...

  • Page 13: Temperature Setting

    Weekly Period Setting Temperature Setting Press “+”or “-” to adjust the temperature ,short press Short press “PROG” button to enter the programming setting ,press “+” “-” to select week , “PROG” and switch to the time setting in the next when finish set, press “PROG” button to switch period of time.

  • Page 14: Pairing Setup

    Pairing Setup Controller Default Setting Long press “PROG” button to choose month/date/ Gateway: year,press “+” “-” to set ,when set finished will during After the gateway is powered on , long press the controller display interface . switch button for 5Sto enter the code matching mode , and the yellow light is always bright.

  • Page 15: Time Setting

    Time Setting Link APP-Login Press “+” “-” button to select the period of time ,short Download: press the “PROG” button to switch to the temperature Click App store or Android application market to setting in the period of time. download “Tuya Smart”APP. There are 4 periods each day by default(including time setting and temperature setting), it is required to complete the setting of time and temperature in 4 ...
  • Page 16 Link APP-Add devices Add gateway: Long press gateway “RESET” for Enter your wifi name 4s until the green light flash quickly. and password,then click “Confirm”. Enter the “HOME” interface of the app,Click the “+” in the upper right corner . Wait for few seconds.
  • Page 17 Add controller / timer: Click “Confirm indicator rapidly blink”on APP, the app automatically Click the “+Add subdevice” search the device and for enter the device list wait a few seconds until after the device is added the search progress is 100%. successfully .
  • Page 18 Curv Smart App Controls Temperature Setting Pown On/Off Setting After the controller is added successfully,we can       and drag to the right to achieve  Click “>> Slide off ” control the device through the APP. ower on”.  “slipping for power off ”or “slipping for  Press increase or decrease of the temperature.
  • Page 19 Programming Setting Multi-day Programming Setting Click the programming to enter Enter the programming interface the programming interface. and then click the “7-day” key. Selecting the period of time of 7-day programming,press Click the date to be edited and “ ”or “ ”to set temperatures confirm it.
  • Page 20 RF Boiler Relay Temporary Stay-out Setting Mode Selection: ON / AUTO / OFF If you need to stay out temporarily,please click “ ” key. The temperature can remain at 16℃,the energy-saving icon “ ” turns green and is on After you arrival at home,click “ ”...
  • Page 21 Timing programming: Select the day for 7-day independent timing setting or click“7day”for multi-day unified timing Set the operating status for a specific time setting. Timing function only exists in automatic mode of water heating. Select AUTO mode in Water heating ,and click Setting the time for ON/OFF,then click“...
