BC15S – BICYCLE COMPUTER 15 FUNCTIONS + SOLAR POWER
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the BC15S! Please read the manual thoroughly before bringing this device into service. If the
device was damaged in transit, don't install or use it and contact your dealer. Contents: bicycle computer, bracket with
cable and sensor, magnet with screw, rubber pad, cable clips, battery.
2. Functions
1. km/h: current speed (0~199.9 km/h)
2. D: trip distance (0~3999.9 km)
3. ODO: total distance (0~39999.9 km)
4. AVS: average speed (0~199.9 km/h)
5. TM: trip time (0~39:59:59)
6. Max.: max. speed (0~199.9 km/h)
7. 12/24 hour conversion
8. clock
3. Installation
Mounting the cycle computer main unit

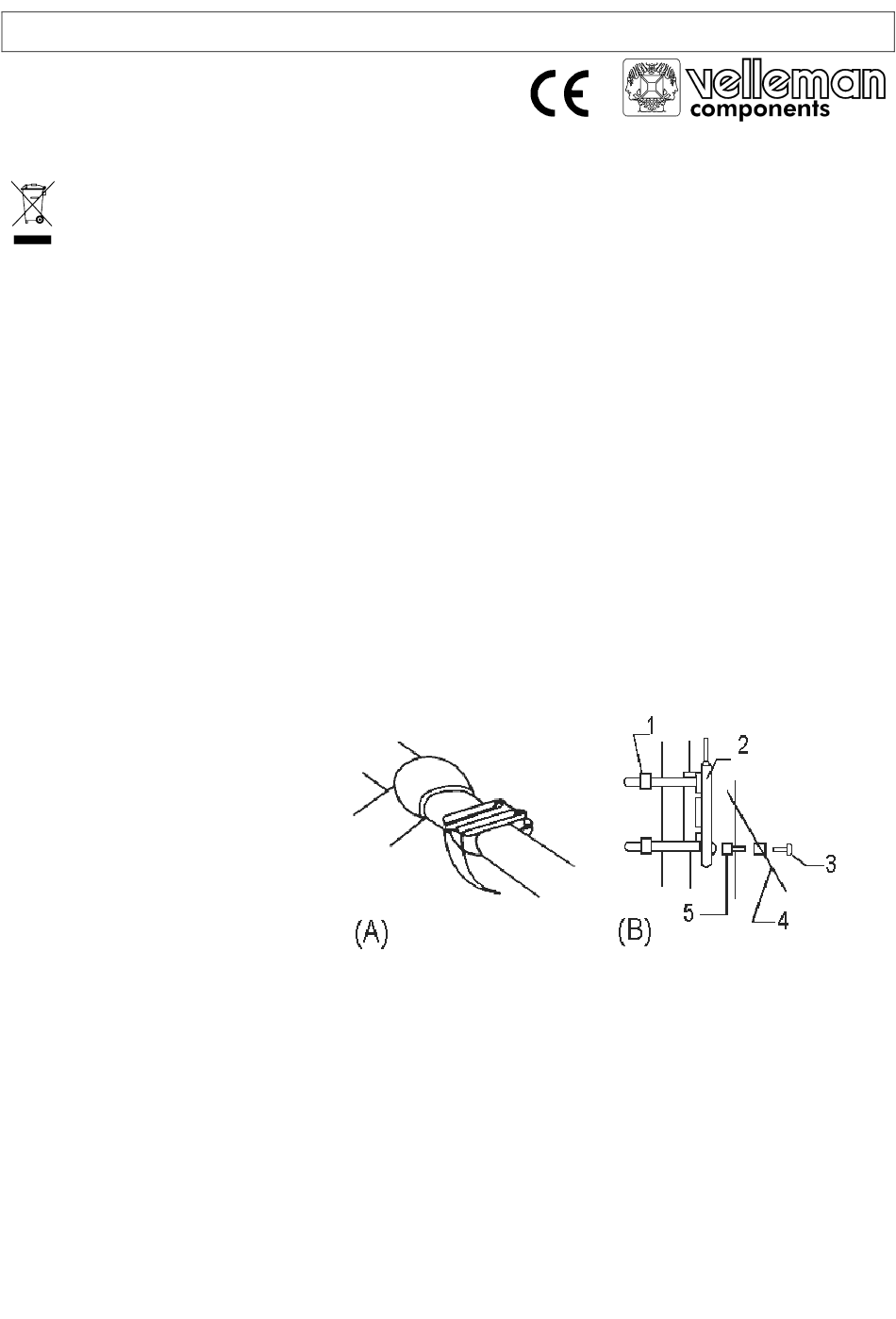

(see fig. A)
Attach the bracket to the handlebar by
means of the included screw. Use the
rubber pad if the bracket does not fit
onto the handlebar. Tighten the screw
and make sure the bracket does not
move.
Mounting the sensor and the magnet (see fig. B)
Remove the protective foil from the back of the sensor (2), fix it on the inner side of the front fork and strap the
sensor by fastening the cable clip (1) slowly to allow sensor adjustment.
Attach the magnet (5) to a spoke (4) on the front wheel with the included screw (3).
Adjust the magnet and sensor position. Ensure that the magnet is pointed directly at the bulge near the top of the
sensor. Align the magnet and the sensor so that the distance between them is less than 5mm when they cross each
other.
Tighten the cable clip and the screw to fix the system.
BC15S
9. kilometre/mile conversion
10. auto start/stop
11. manual start/stop
12. LCD auto clear
13. wheel circumference setting (1~399cm)
14. scan
15. auxiliary solar power
