Summary of Contents for Little Labs LL2A

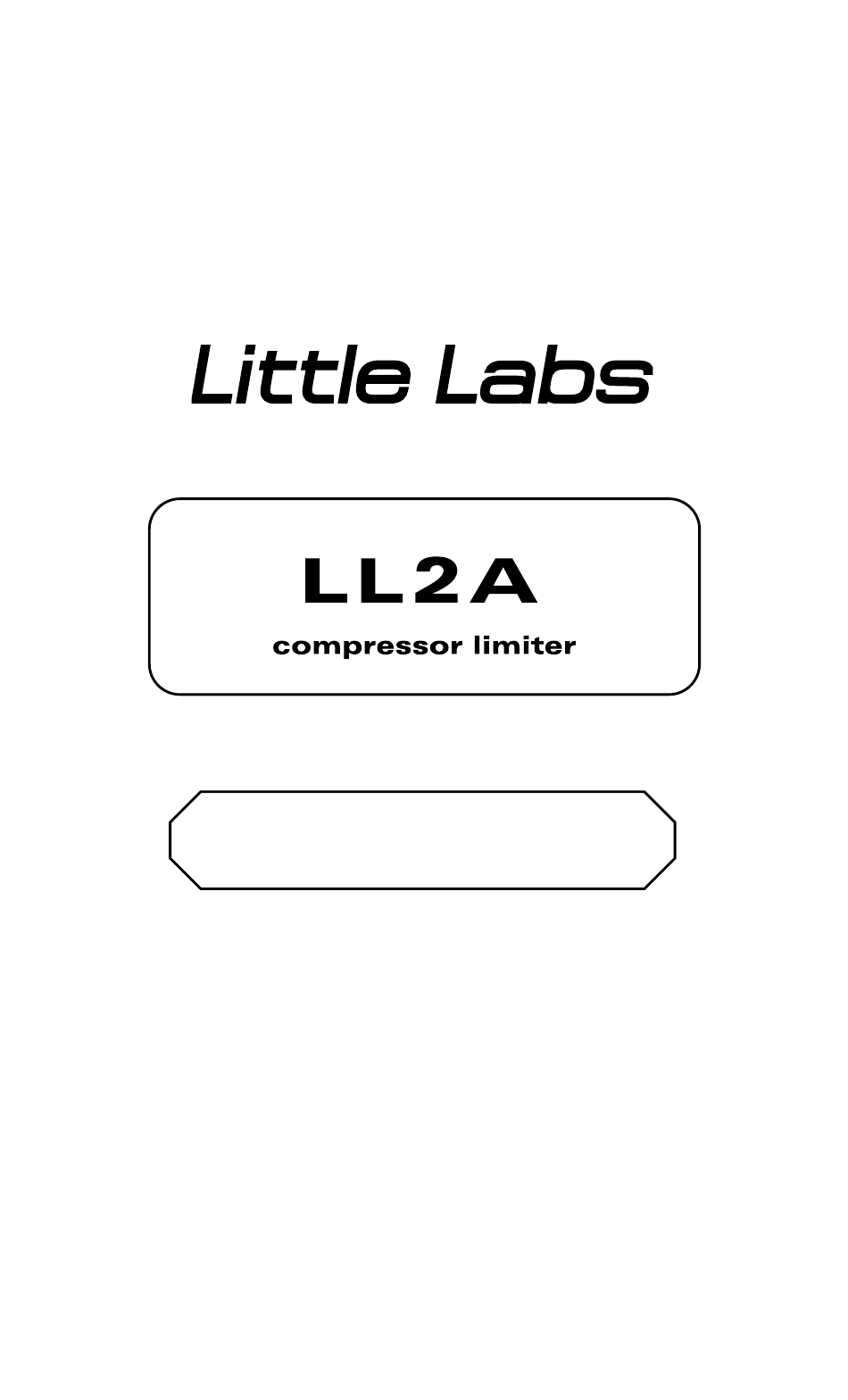

- Page 1 preliminary O p e r a t o r s M a n u a l...
- Page 2 & pdf formatting 04/2020. using this manual or any part of it without permission is a violation of copyright laws. LL2a™ is a registered trademark of little labs.
- Page 3 PCB traces and wires next to the Nixie tube. Please contact Little Labs for any service issues. The I/O of the LL2A is unique. It is balanced mono, but in a unique differential way, when fed a balanced signal, it remains balanced throughout the LL2A.
- Page 4 Thank you for purchasing the Little Labs LL2A™ compressor limiter. First of all, in case you are wondering, the LL2A has absolutely nothing to do with the classic Universal Audio Teletronix LA-2A Leveling Amplifier. The name is similar to grab your attention. The LL2A is a 100% original design.
- Page 5 LL2A is if you select the link button and do not have a link cable in place, it slows way down, creating a slow attack more suitable for bass.
- Page 6 Link button and jack When you have two LL2As, use a TS cable (tip sleeve, short guitar cable) and stick in each LL2A’ s link jack. The output will be controlled independently. The threshold will affect both, and whichever compressors threshold is set higher will be the domi- nant master.
- Page 7 . ing) just when they speak. Also useful for things where you don’t want the compressor to react to, for example, a kick drum, but you do on a loud snare. You can split the signal and use a high pass filter on the signal feeding the side chain insert so the compressor won’t react to the kick, only the higher frequency snare.
- Page 8 The Inputs, the Outputs, and the unique LL2A circuit topology The I/O circuit topology of the LL2A is unique. Most audio devic- es have transformers or active circuits to convert a balanced signal to single-ended signals where they then are internally processed then converted back to balanced on the output using more trans- formers or an active circuit.
- Page 9 The LL2A output For the output of the LL2A to have a title of its own, it must be unique, and it is. What is used on the output is part of what inspired me to create the LL2A. The Monotor headphone amp has been an enormous suc- cess for Little Labs, utilizing top-notch passive components and a single very low output impedance simple current driver.
- Page 12 other Input impedance Mono balanced input impedance: 20k Ω Stereo unbalanced input impedance: 10k Ω Output impedance Mono balanced output impedance:< 0.5Ω Stereo unbalanced output impedance: < 0.5 Ω Maximum output level In balanced mono +28dB In unbalanced stereo +22dB Dimensions 7.25”...
- Page 14 3/32” Allen key. Remove the front panel. Remove the plastic frame and save it, you might want to return the LL2A to a stand alone unit at a later date. The rack kit RAKA extrusion replaces the plastic frame piece.
- Page 16 6711 whitley ter los angeles ca 90068 e-mail: littlelabs@littlelabs.com web: littlelabs.com sales, service technical support 323-851-6860 manual printing & pdf formatting 04/2020...
