Summary of Contents for SPOTTUNE STREAM

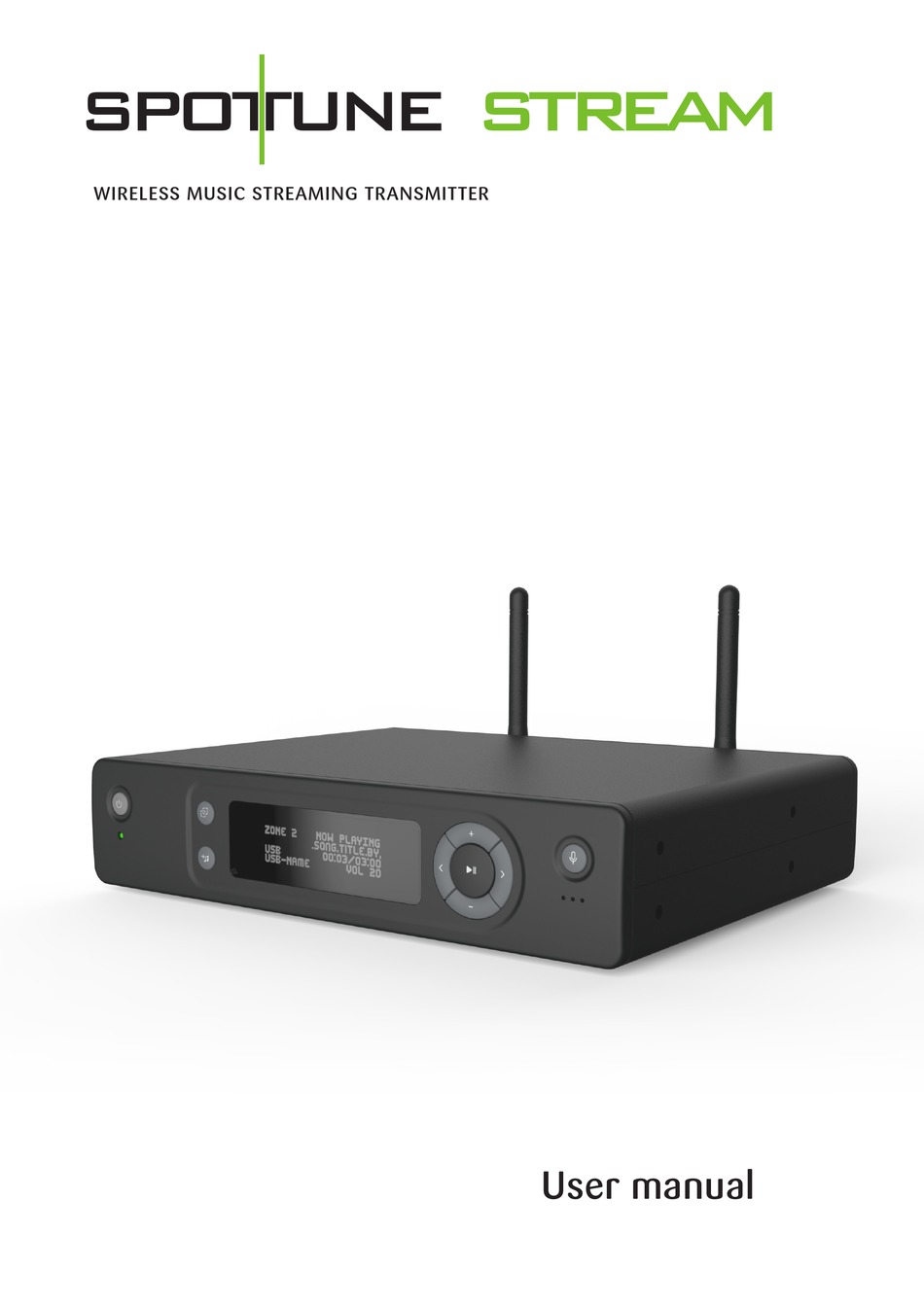

- Page 1 WIRELESS MUSIC STREAMING TRANSMITTER User manual...
-
Page 3: Table Of Contents
INDEX Important remarks Page 4 Important safety instructions Page 7 Introduction Page 8 Setting up Page 9 Packaging content Page 11 Technical specifications Page 12 Compliance & License Page 13... -
Page 4: Important Remarks
IMPORTANT REMARKS WARNING Risk of electric shock Do not open The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to per- sons. - Page 5 Take to the nearest electrical and electronic waste treatment centre. NOTE Spottune company accepts no liability for any damage that may be caused to people, ani- mal or objects due to failure to comply with the warnings above. 5 5 5 5...
-
Page 7: Important Safety Instructions
Disconnecting from mains: Switching off the POWER switch all the functions and light indicators of the Spottune Stream will be stopped, but fully disconnecting the Spottune Stream from mains is done unplugging the power cord from the mains input socket. For this reason, it always shall remain readily operable. -
Page 8: Introduction
INTRODUCTION Power ON/OFF button USB port Power ON/OFF indicator light Antenna 1 Zone button Ethernet port Music source button AUX IN Interface OLED display MIC IN Music navigation. Volume up/down, Previ- Antenna 2 ous/Forward, Play/pause Power source inlet Microphone activation button. Microphone FRONT This device complies with Part 15 of the FCC rules. -
Page 9: Setting Up
Start by placing and powering up your Spottune Omni speaker power at its final place ment. Connect Spottune Stream to your network via the LAN input on the backside of the Spottune Stream. You can also connect Spottune Stream to your network via WiFi, simply search for the Spottune Stream XX (MAC-ID) WiFi on your computer, tablet og mobiledevice and enter the IP address of the Spottune Stream (192.168.43.1) in you browser, then follow the... - Page 10 Spottune Omni speaker will provide an audio feedback and change the “Status LED” color to green when paired. When paired, press and hold the “Zone button” on Spottune Stream transmitter for 5 sec onds, to exit “PAIRING MODE”. Playing from music source Select “ZONE 1”, “ZONE 2”...
-
Page 11: Packaging Content
PACKAGING CONTENT Spottune Stream packaging contains: • Spottune Stream Transmitter • 2 x Wireless antennas • 5V DC 2A Power adaptor • User manual... -
Page 12: Technical Specifications
Audio Broadcasting Digital Technology RF Wireless Features band 1,8 - 1,9 GHz Range up to 50-100m (Condition dependent) Optional daisy chain Spottune Stream Ethernet Ports for multiple streaming services Input Mini jack, AUX IN Mini jack, MIC IN (external MIC / PA) USB 2.0 type A... -
Page 13: Compliance & License
COMPLIANCE & LICENSE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and - This device must accept any interference received, including interference that may cause undesired operation. - Page 14 This radio transmitter has been approved ( IC:7756A-DECT) by Industry Canada to oper- ate with the antenna types listed below with the maximum permissible gain and re- quired antenna im- pedance for each antenna type indicated. Antenna types not includ- in this list, having a gain greater than the maximum gain indicated for that type, are strictly pro- hibited for use with this device.
- Page 16 I Dänemark www.spottune.com...
