Nos NIN40003 Manual

Item NIN40003

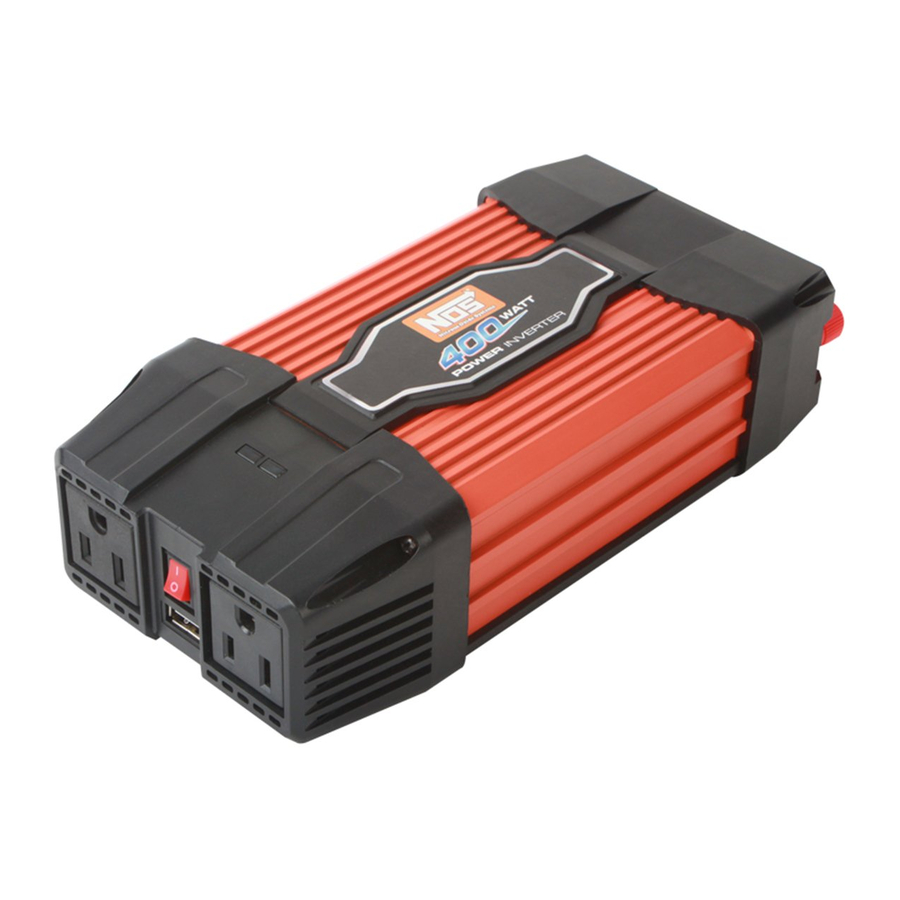

400 Watt Power Inverter
For Technical Questions, Call: 800-837-5994
CONTENTS

1. INTRODUCTION

2. IMPORTANT SAFETY INFORMATION

3. FEATURES AND ACCESSORIES

4. INVERTER USAGE CHART

5. Operating The Inverter
6. Troubleshooting
7. Specifications
1. INTRODUCTION
Thank you for purchasing this NOS ® inverter, a high performance solution
to using household power while on the road. When connected to a 12 volt
outlet, the inverter ef ciently and reliably supplies 115V/60Hz AC power for
a wide variety of loads, such as TV sets, gaming systems, cell phones and
portable entertainment devices. Our line of power inverters are designed to
international quality standards to meet and exceed your performance
expectations. With proper care and appropriate usage, this inverter will give
you years of dependable service in your car, truck, RV and boat.
2. IMPORTANT SAFETY INFORMATION
For safe and optimum performance, the inverter must be installed and used
11"
properly. Carefully read and follow the guidelines below:
Safety Definitions:
DANGER:
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING:
Indicates an imminently hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION:
Indicates an imminently hazardous situation which, if not
avoided, may result in minor or moderate injury.
CAUTION:
Indicates a potentially hazardous situation, if not avoided,
may result in property damage.
WARNING:
READ AND FOLLOW ALL INSTRUCTIONS
Read all instructions before operating product. Failure to follow all instructions
listed below may result in electric shock, re and/or serious injury.
• AVOID WET CONDITIONS Do not use in damp environments or expose the
unit to rain, water or any other liquids.
• PROPER CONNECTION Do not connect the unit to any utility power
distribution systems or branch circuits.
• PROPER TEMPERATURE Do not use the inverter in temperatures over
104ºF (40°C) or under 32°F (0°C).
• PROPER STORAGE Store inverter indoors and out of the reach of children
when not in use.
• DO NOT USE the inverter beyond its rated capacity.
• ONLY USE this appliance for the job it was intended for.
• PROPER COOLING is essential when operating the inverter. DO NOT place
the unit near the vehicle's heat vent or in direct sunlight. DO NOT restrict air
ow around the inverter.
• ALWAYS CHECK for damaged parts. Ensure all cables, insulation and
connectors are in good working condition.
• USE OF ACCESSORIES Only use accessories or attachments that are
intended for use with this product.
• EXTENSION CORDS When using an extension cord only use cords that are
rated to carry the current the connected appliance draws. Check to make
sure the cord is in good working condition. Refer to the appliance owners
manual for wattage information.
• CONNECTING APPLIANCES When connecting and using outdoor
appliances with the inverter, make sure that the extension cord used is
rated for outdoor use.
• DO NOT OPERATE inverter and appliances near flammable liquids or in
gaseous or explosive atmospheres.
WARNING:
TO REDUCE THE RISK OF FIRE
• DO NOT operate near flammable materials, fumes or gases.
• DO NOT expose to extreme heat or flames.
CAUTION:
TO REDUCE THE RISK OF INJURY OR PROPERTY
DAMAGE
• REMOVE appliance plug from outlet before working on the appliance.
• DO NOT attempt to connect or set up the unit or its components while
operating your vehicle. Not paying attention to the road may result in a
serious accident.
• ALWAYS use the inverter where there is adequate ventilation. Do not block
ventilation slots.
• ALWAYS turn the inverter OFF by disconnecting it from the power source
when not in use.
• MAKE SURE the nominal powering voltage is 12 volts DC.
• WHEN USING this unit in a vehicle, check the vehicle owner's manual for
maximum power rating and recommended output. Do not permanently
install in engine compartment. Instead install in a well ventilated area.
• DO NOT use with positive ground electrical systems*. Reverse polarity
connection will result in a blown fuse and may cause permanent damage to
the inverter and will void warranty. *The majority of modern automobiles,
RVs and trucks are negative ground.*
• KEEP IN MIND that this inverter may not operate very high wattage
appliances or equipment that produces heat. Refer to Inverter Usage
Chart in this manual.
• DO NOT open the inverter there are no user-serviceable parts inside.
• DO NOT use this inverter with medical devices. It is not qualified for
medical applications.
• KEEP AWAY from children. This is not a toy!
• INSTALL AND OPERATE unit only as described in this Instruction Manual.
WARNING:
This product or its power cord contains lead, a chemical
known to the State of California to cause cancer and birth defect or other
reproductive harm. Wash hands after handling.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK
• DO NOT connect to AC distribution wiring.
• DO NOT make any electrical connections or disconnections in areas
designated as IGNITION PROTECTED. This unit is NOT approved for
ignition protected areas.
• NEVER immerse the unit in water or any other liquid or use when wet.
• DO NOT insert foreign objects into the AC outlet or the USB outlet (if
provided).
CAUTION:
DO NOT USE THE UNIT ON THE FOLLOWING ITEMS:
• Small nickel-cadmium battery-operated appliances such as flashlights,
razors and night lights.
• Battery chargers for battery packs used in hand power tool that have a
warning label indicating dangerous voltages are present at the battery
terminals.
17"
Failure to follow these safety guidelines may result
in personal injury and/or the damage to the unit. It
CAUTION:
RECHARGEABLE DEVICES
• Certain rechargeable devices that are designed to be charged by plugging
them directly into an AC receptacle may damage the inverter or the
charging circuit.
• When using a rechargeable device be sure to monitor it's temperature for
the rst ten minutes.
• If excessive heat is produced the device should not be use with the inverter.
3. FEATURES AND ACCESSORIES
These advanced safety features are built into the
Power Inverter:
• Electronic overload protection with automatic shutdown
• Non-replaceable 40A slow-blow fuse
• Low battery voltage shutdown
• High input voltage protection with automatic shutdown
• Overheat protection with automatic shutdown
• Output short circuit protection.
BACK
POSITIVE (+) VENTILATION NEGATIVE (-)
DC TERMINAL OPENING DC TERMINAL
FRONT
AC OUTPUT: 120V AC OUTPUT: 120V
DC CABLE
DC BATTERY CLIP
LIGHTER PLUG
may also void the warranty.
4. INVERTER USAGE CHART
APPLICATION
PWR TOOL BATTERY PACKS
DIGITAL CAMERA
CD PLAYER
MP3 PLAYER
CELLULAR PHONE
14V CORDLESS DRILL CHARGER
CELL PHONE/CAMCORDER BATTERY
CAMCORDER
PORTABLE WORK LIGHT
DVD PLAYER
MINI STEREO SYSTEM
LAPTOP COMPUTER
COMPUTER/PRINTER/FAX
27" TV
3/8" VARIABLE SPEED DRILL
10-SPEED BLENDER
BELT SANDER
3/8" REVERSIBLE DRILL
HOUSEHOLD FOOD PROCESSOR
COMPUTER AND MONITOR
PORTABLE VACUUM
8-CUP COFFEE MAKER
1/2" HAMMER-DRILL
RECIPROCATING SAW
VACUUM CLEANER
ON/OFF
1-1/8" ROTARY HAMMER
SWITCH
1/6 H.P. SUBMERSIBLE SUMP PUMP
COMPACT MICROWAVE OVEN
2-SLICE TOASTER
HEAVY-DUTY WORKLIGHT
14" CHAIN SAW
42" FAN
*Remember to double your wattage when choosing the right size inverter.
* Wattage shown are approximate values.
WATTS
2
2
2
2
3
8
10
10
25
48
50
90
150
200
330
352
379
385
396
440
506
605
605
660
792
852
880
935
968
990
1100
1210
rev. 091112
