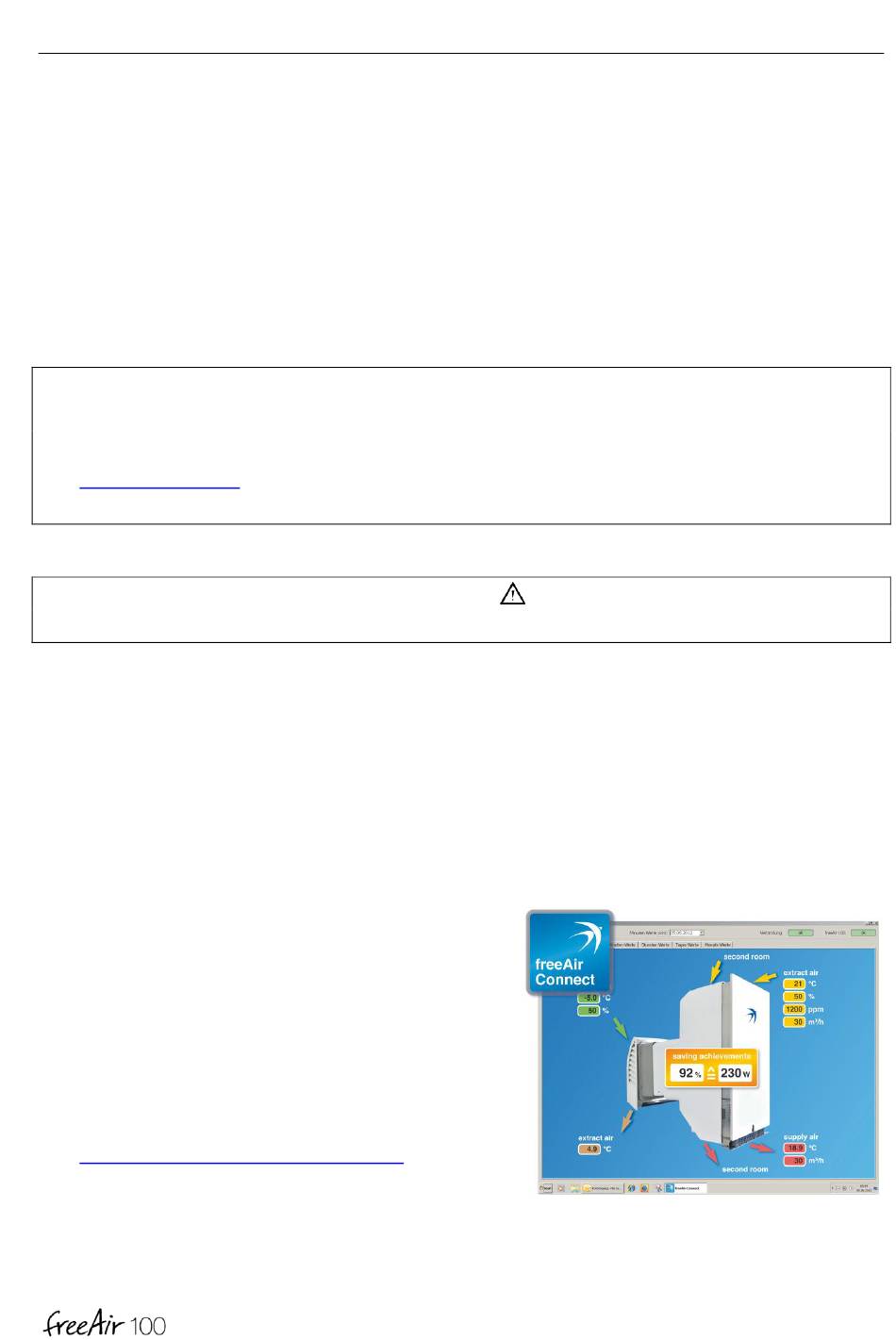

Service
•
The annual filter change does not require any tools.
•
Original bluMartin replacement filters are available from the installer, from us
(info@bluMartin.de) or from Amazon.
•
You need a Torx-10- and a Torx-20 screw driver for installation and service tasks.
Observe all references to safety and use of the freeAir100 in part General [G].
Device Test
After correct installation turn the freeAir100 on and wait a few minutes while the device
executes a test routine.
Test Turbo operation once either only blue LEDs or no LEDs are illuminated.
Connect Software
For control of device functions and for any update,
we recommend:
•
Laptop (Windows 7 or 8)
•
USB cable (A on B)
•
Our free software freeAir-Connect
and free updates for freeAir100
(www.bluMartin.de/service/downloads).
Notes
DANGER
Service
[ S ] 32
