BTC 3MOTION R User Manual

Podiatric chair

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

USER MANUAL

Podiatric Chair

1 / 10

Table of Contents

Need help?

Do you have a question about the 3MOTION R and is the answer not in the manual?

Questions and answers

Summary of Contents for BTC 3MOTION R

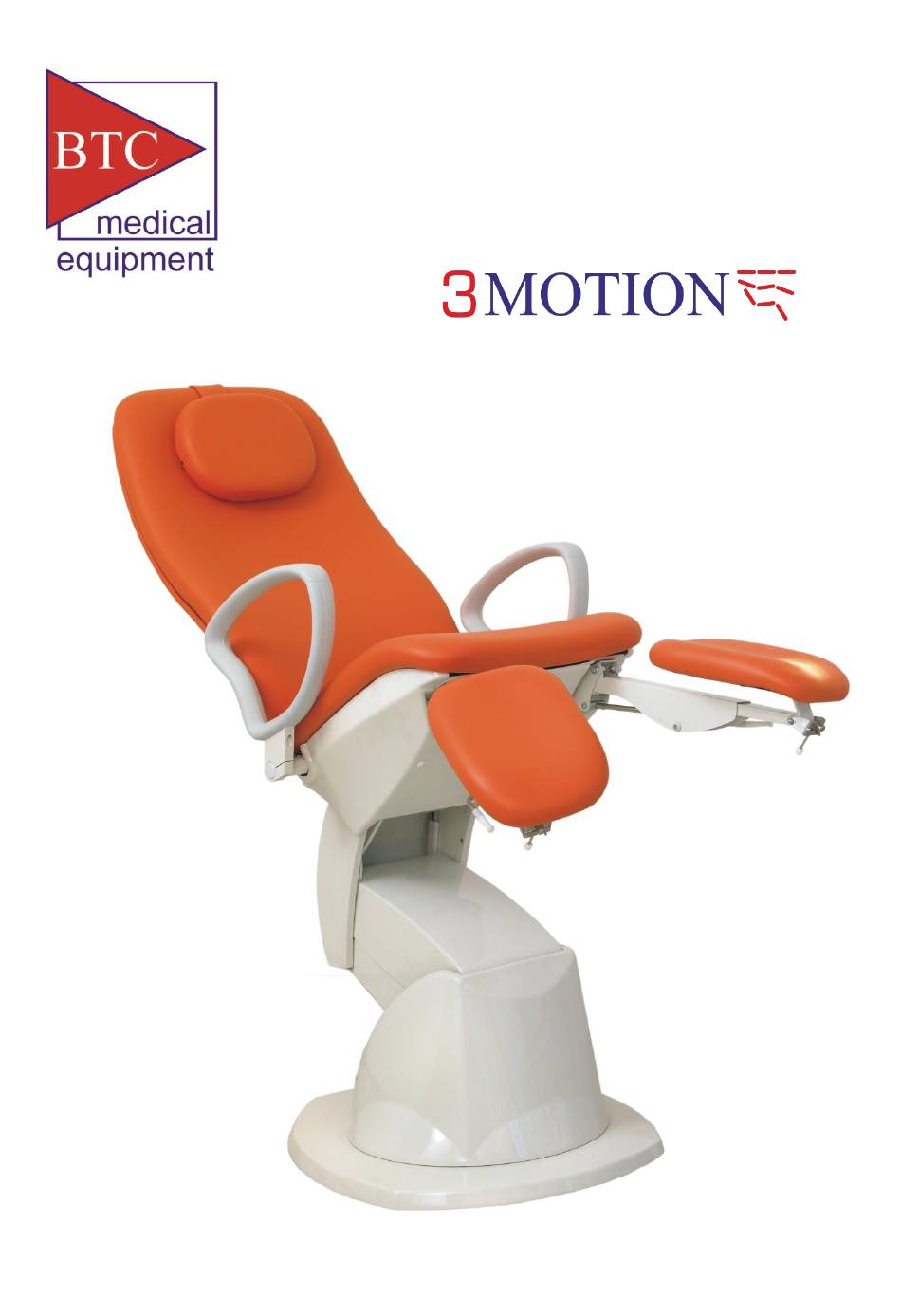

Page 1 USER MANUAL Podiatric Chair 1 / 10...
Page 2: Table Of Contents
CLEANING AND DISINFECTION ROUTINE MAINTENANCE DECLARATION OF COMPLIANCE Thank you for choosing BTC products . Before using the device, please read and keep this manual carefully: this will allow you to maintain over time the performance, safety and reliability of the equipment.
Page 3: Installation
Packaging and transportation Open the box on the upper side, pull and release the chair. Place the chair on pallets, duly directed, close to the its final location. The back-rest has been removed and leaning on the the seat to facilitate shipping. Store it in a safe location to await for the installation.
Page 4: Technical Specifications
Supply 230 V 50Hz Operating voltage 24 V Absorption 350W Maximum load 210 Kg. Maximum load on foot-rest 25 Kg Maximum load on arm-rest 35 Kg Maximum load on back-rest 65Kg Weight of the chair 105 Kg Package size 74 x 94 h90 cm 4 / 10...
Page 5: Symbols
High tension (230 V) Warning! Read this manual before the Complies with 93/42/CEE “MEDICAL DEVICES ” BTC Srl products are manufactured in compliance with international rules: Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the rules Waste Electrical and Electronic Equipment (WEEE).
Page 6: Warnings
BTC disclaims any liability for any damage resulting from failure to observe the warnings and instructions in this manual.
Page 7: Foot Control M3 Version
CONTROL OF THE CHAIR The foot control allows you to store a second position, just pressing the “A” button when the chair is at position 0. To change positions already locked, press button “A” or “B” for about 2sec. until the beep. Descent of the chair Ascent of the chair.
Page 8: Rotation
ROTATION The chair can rotate for 230 ° on the horizontal plane. The lever "5" allows you to release or lock the rotatation. LEG-REST Leg-rests are assembled on fractioned telescopic guides, they are spread apart by 30 ° +30 ° and have a vertical movement of 90 °...
Page 9: Cleaning And Disinfection
CLEANING AND DISINFECTION For cleaning and disinfection of the external surfaces of the chair (plastic parts, paint and upholstery) use the normal disinfectants available on the market verifying that the active substances listed are all present in the maximum concentrations indicated. WARNING! Do not exceed the concentrations indicated: Do not use products containing alcohol, ammonia, benzene or abrasives;...
Page 10 40026 Imola (BO) http//www.btc-med.it C.F./P.I. 02489471207 Email: btcmed@btc-med.it R.E.A.: 443644 Capitale sociale € 180.000 I.V. BTC Srl declares that all the medical devices Version Identification from  to 9110123-000000  9110123-999999 9110119-000000  9110119-999999 comply with the applicable requirements for Class 1 devices of 93/42/CEE...
