Summary of Contents for Twin Eagles TEVH36-C

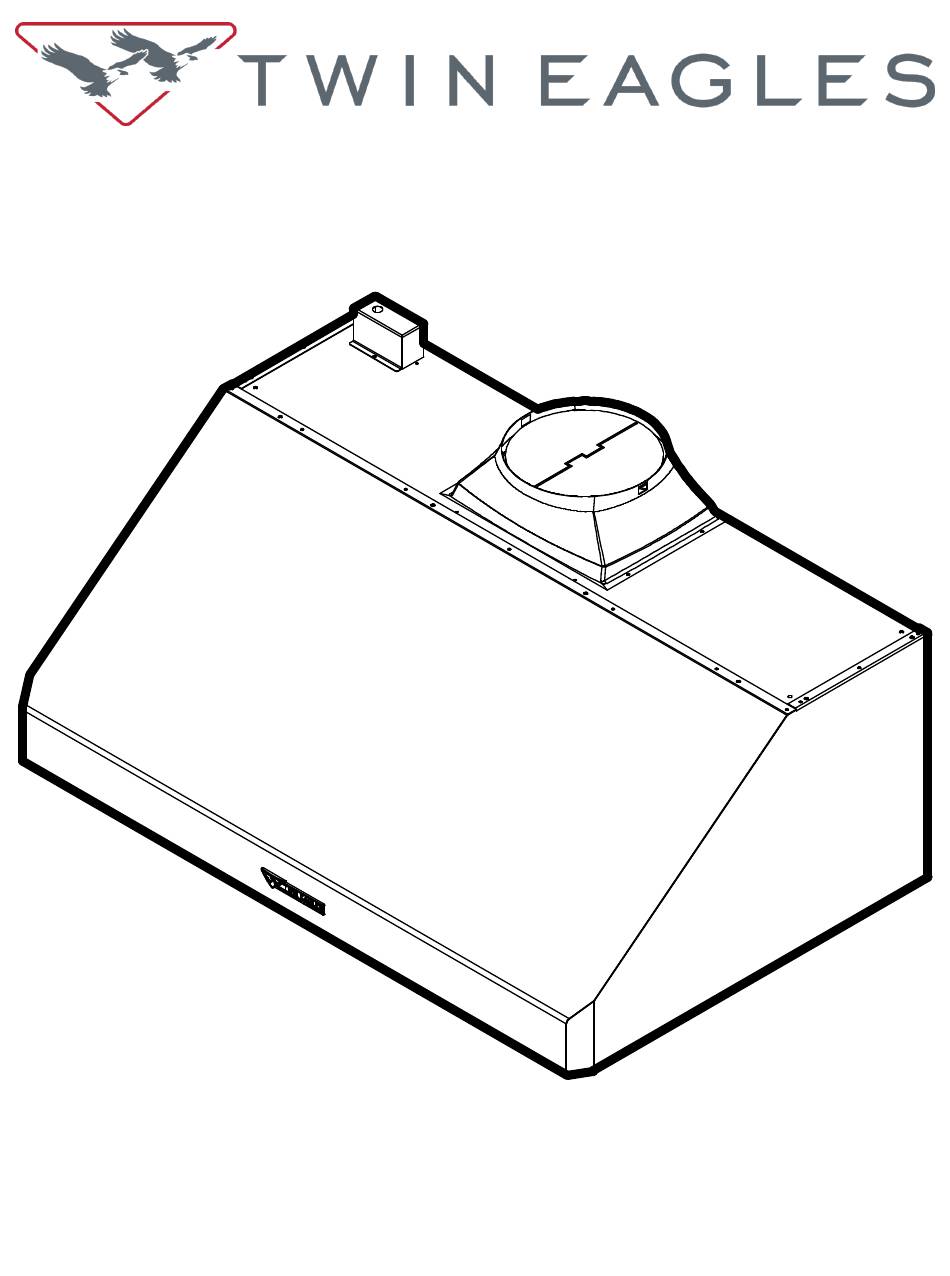

- Page 1 INNOVATION AND INSPIRATION ON FIRE™ TWIN EAGLES VENT HOOD INSTALLATION INSTRUCTIONS MODELS: TEVH36-C TEVH48-C FOR RESIDENTIAL USE ONLY. TEVH60-C...
- Page 2 Vent Hood. We recommend reading this manual before your first use to ensure safety, proper care and operation. At Twin Eagles, we want you to enjoy grilling and spending time together as much as we do – making memories that linger long after the grill cools down.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CUSTOMER CARE IMPORTANT SAFETY INSTRUCTIONS Please record the product information below and GETTING STARTED refer to it when contacting Twin Eagles. ELECTRICAL REQUIREMENTS VENT HOOD KNOCK-OUTS AND MOUNTING This information is found on the data nameplate, LOCATIONS located on the left hand inside face of the vent hood. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: Read this manual carefully and completely before using your Vent Hood to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: A. -
Page 5: Getting Started
To clean the hood surface use only mild soap or detergent solutions. Wipe to dry surfaces using a soft cloth. If a stainless surface is being cleaned, always wipe in the direction of the brush surface. Cleaning aids such as “Stainless Steel Magic” are available. Never us abrasive cleaners, pads or cloth. Twin eagles Service (562) 263-3600 | 2... -
Page 6: Electrical Requirements
ELECTRICAL REQUIREMENTS: The appliance should only be taken apart by a qualified technician, or electrical shock may occur. It is rated at 120V, 5.4 Amps, 60Hz. REMINDER: Keep any electrical supply cord away from any heated features. Unit comes with three-pronged power cord pre-installed. Vent hood must be plugged into a GFCI protected branch circuit. -
Page 7: Vent Hood Knock-Outs And Mounting Locations
See FIG 1A for knock-out locations. FOR TOP EXHAUST FOR REAR EXHAUST FIG 1A CAUTION: When knock outs are removed the edges will be sharp!!! Sharp edges should be filed or covered with metal tape. Twin eagles Service (562) 263-3600 | 4... - Page 8 VENT HOOD KNOCK-OUTS AND MOUNTING LOCATIONS -cont: Installation of the Vent Hood should also take into account the unit that the Vent Hood is to be installed above. For best ventilation of smoke and heat, make sure the vent hoof is centered above the appliance and a min- imum of 36 inches above the cooking surface.
-
Page 9: Top Exhaust
ROTATE 3” 18” INTO POSITION & SECURE WITH 2 ALL HOODS 30” SCREWS 10” DISCHARGE WITH TRANSITION WILL BE ON THE CENTER LINE OF HOOD WIDTH AND ON CENTER LIE OF 12” DIMENSION. Twin eagles Service (562) 263-3600 | 6... -
Page 10: Rear Exhaust
REAR EXHAUST FIG 5 BOTTOM VIEW OF CABINET HOOD DIM A WIDTH 36” 8 3/8” 48” 17 1/2” 60” 23 7/16” WIRING ACCESS BACK WALL ADD FURRING STRIPS TO PROVIDE AN EVEN BOT- TOM SURFACE FOR THE HOOD MOUNTING. FIG 7 FIG 6 SECURE TRANSITION TO HOOD USING #10 SHEET METAL SCREWS. -
Page 11: Mounting The Transition
= CENTER OF ROUND DUCT USING CUT HOLE IN DRYWALL TO ACCEPT TWIN EAGLES TRANSITION TRANSITION MOUNTING THE TRANSITION: FIG 9 FIG 10 TOP EXHAUST REAR EXHAUST #10-24 METAL CUTTING SCREWS #10-24 METAL CUTTING SCREWS Twin eagles Service (562) 263-3600 | 8... -
Page 12: Outside Patio Or Lanai Installation
The Twin Eagles hood with stainless steel canopy is approved for installation in an outside patio or lanai area if the area is covered with a protective roof over the hood (wall style hoods are to be also mounted to a solid protective rear wall) and installed with a GFCI protected branch circuit. -
Page 13: Baffle Filter Installation, Use, And Care
FIG 10 ROOF 12” EXHAUST A = 42” MINIMUM B = 30” MINIMUM * = TOTAL OVERALL FRONT VIEW SIDE VIEW WIDTH WITH HOOD Twin eagles Service (562) 263-3600 | 10... - Page 14 BAFFLE FILTER INSTALLATION, USE AND CARE INSTALLER: Please leave these installation instructions with unit for the owner. 1. Remove all packaging and the productive plastic covering from filters. 2. Grasp the filter by the center baffle, see FIG 11, with the spring end facing you and the grease collector channel is facing down and toward the rear of the hood.
-
Page 15: Tevh-C Exploded View
TEVH-C EXPLODED VIEW * - #12 AND #13 SOLD SEPARATELY Twin eagles Service (562) 263-3600 | 12... -
Page 16: Tevh-C Replacement Parts List
S21173 SWITCH PANEL S21164Y BAFFLE FILTER ASSEMBLY S16477 BLOWER MOTOR ASSEMBLY (SOLD SEPARATELY) S13166 VENT HOOD DAMPER (SOLD SEPARATELY) S13203 TWIN EAGLES EMBLEM S16494 HALOGEN LIGHT S13501 HIGH TEMP CONTROL KNOB S16493 3-POS ROTARY SWITCH S16492 4-POS ROTARY SWITCH S14536-24... -
Page 17: Tevh-C Wiring Diagram
TEVH-C WIRING DIAGRAM Twin eagles Service (562) 263-3600 | 14... -
Page 18: Warranty
Twin Eagles will repair or replace parts found to be defective at no cost to the original purchaser. Warranty service must be performed by a Twin Eagles authorized representative during normal business hours. -
Page 19: How To Obtain Service
SERVICE HOW TO OBTAIN For service, please contact your Twin Eagles dealer or call Twin Eagles direct at (562) 263-3600 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13259 East 166th Street Cerritos, CA 90703 Visit us at www.twineaglesgrills.com Please provide: •... - Page 20 CUT HERE P/N: 24379B 05/21 Place Postage Here INNOVATION AND INSPIRATION ON FIRE™ Customer Service ATTN: Warranty Department 13259 East 166th Street Cerritos, CA 90703 Fax no. (562) 802-3391...
