Ⅰ. Software Downloading
Ⅱ. Remote Controlling Operation
1. Mobile APP controlling manual
2. Computer Program controlling manual (WAN mode)
Ⅲ. Local Controlling Operation (LAN mode)
Ⅰ. Software Downloading
1. Use mobile phone to scan the below QR code to download the APP
2. KC868-H16 software (Phone APP QR code, PC Program, Vircom Network Tool) downloading link:
www.kincony.com/download/Disk_KC868-H16.rar
Please download the file to have the software firstly, as below, it is default you already have and know them.
KC868-H16 Device User Manual (V0508)
Advertisement
Summary of Contents for KinCony KC868-H16

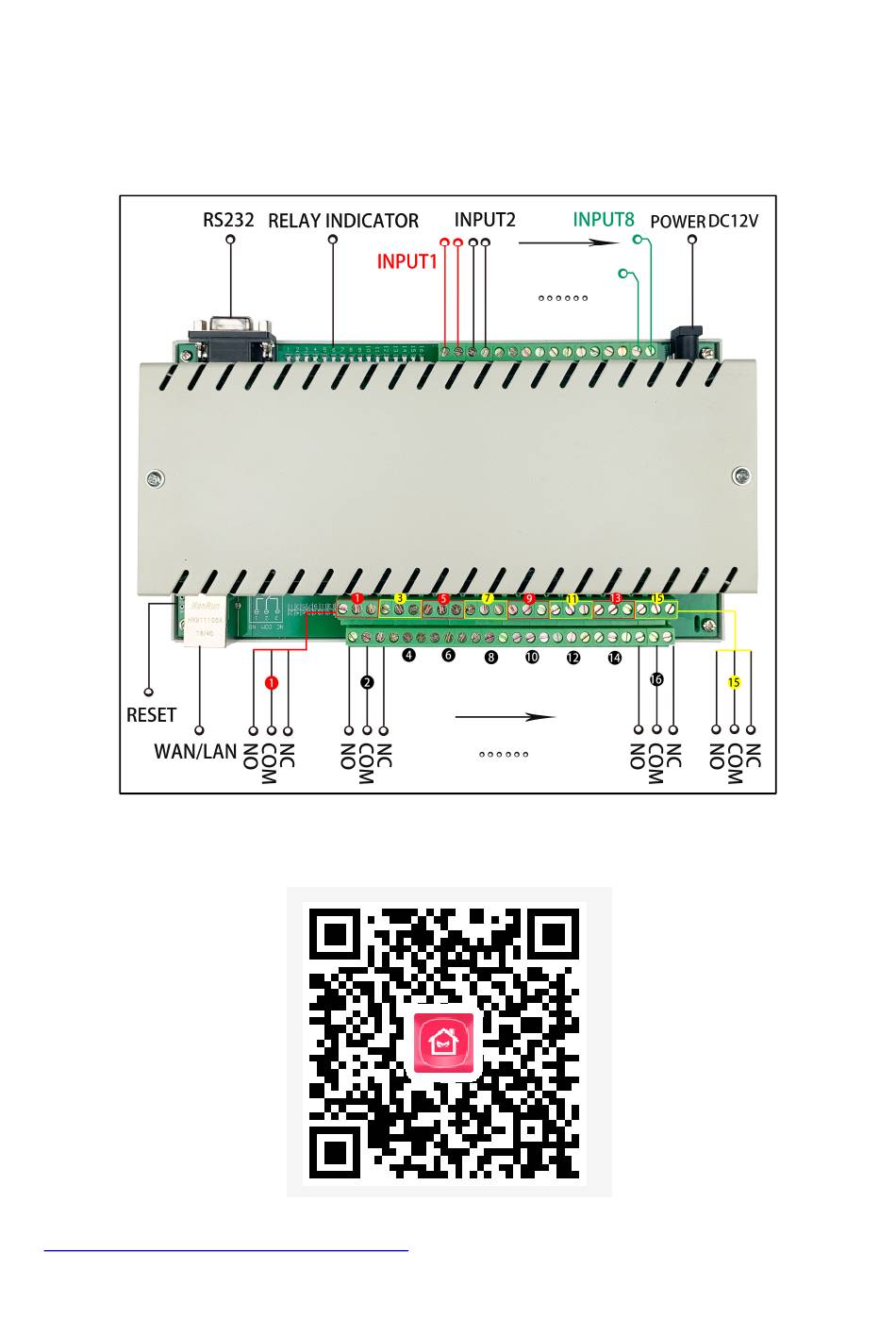

- Page 1 Ⅰ. Software Downloading 1. Use mobile phone to scan the below QR code to download the APP 2. KC868-H16 software (Phone APP QR code, PC Program, Vircom Network Tool) downloading link: www.kincony.com/download/Disk_KC868-H16.rar Please download the file to have the software firstly, as below, it is default you already have and know them.
- Page 2 Ⅱ. Remote Controlling Operation 1. Mobile APP controlling manual 1.1 Power on the device and connect the internet cable 1.2 Register After downloading and installing the APP, Register your account (11 digitals) and password, (Pls make a note for your password in case forgotten). 1.3 Adding device Login in, choose 【...
- Page 3 Click M ine M y Device U nclassified , Hold pressing the ICON to choose one room 【 】 【 】 【 】 And give a name for the device. Hold pressing the number of the relay, the name can be renamed. Now adding device is completed, the device can be controlled by mobile APP.
- Page 4 Time setting Optional(Function of timing), at 【 M ode setting 】 , input the actions you want to control, click 【 S ave 】 see below pic4-2 p ic4-3 p ic4-4 p ic4-5 ， ， ， 。 Pic4-2 Add Scene Pic4-3 Add Scene 2 Pic4-4 Time setting (Optional) Pic4-5Mode setting (Actions controlled)
- Page 5 4. Press ‘Save’ See Pic4-6, Pic4-7 P ic4-8 ， 。 1. Open light1 2. Press the name to save the action Set light1 opened successfully Pic4-6 Pic4-7 Pic4-8 II. Inputting terminals trigger linkage of the scene mode Click M ine - --- S etting S afe set...
- Page 6 When inputting terminals are triggered, the phone will receive A larm 【 message 】 And the actions of the scene mode will be opened. T urn on the alarm button 、 、 S tart 00-23 and Arming (00-23 means Arming the whole day.
- Page 7 2. Computer Program controlling manual (WAN mode) 2.1 Power on the device and connect the internet cable 2.2 The first time to use the program, double click to install the ActiveX Installer. 2.3 Then double click to open the program and setup the configuration Step 1: Choose 【...
- Page 8 Step 2: click S ystem P arameter Config 【 】 【 】 Step 3: Input Serial Number of the device at the right bottom, and then click S ave 【 】 (Serial Number is the 24 digitals on the QR code on the device) Here, you can give new name for each relay if required.
- Page 9 1.2 Make sure your computer and the device are belonging to the same local internet 1.3 Open the “Vircom Network Tool”, and setup the configuration of the device Step 1: Click D evice 【 】 Step 2: Click A uto Search 【...
- Page 10 Step 4: Choose “TCP Server” for the W ork Mode i nstead of “UDP” 【 】 ， Step 5: Make sure keeping the others unchanging, meanwhile remember the IP Address and Port The IP and port will be required as following; you can open the tool and check back when you forget. Step 6: Click M odify Setting t o finish the setup, then power off the device and power on again.
- Page 11 Step 2: Input the IP number and Port number as remembered from the Vircom network tool. Then click 【 S ave 】 t o return Step 3: Click 【 L ocal Control 】 【 L AN Connect 】 【 C onnect OK! 】...
