Exaco Endura Clay FM-300 Manual

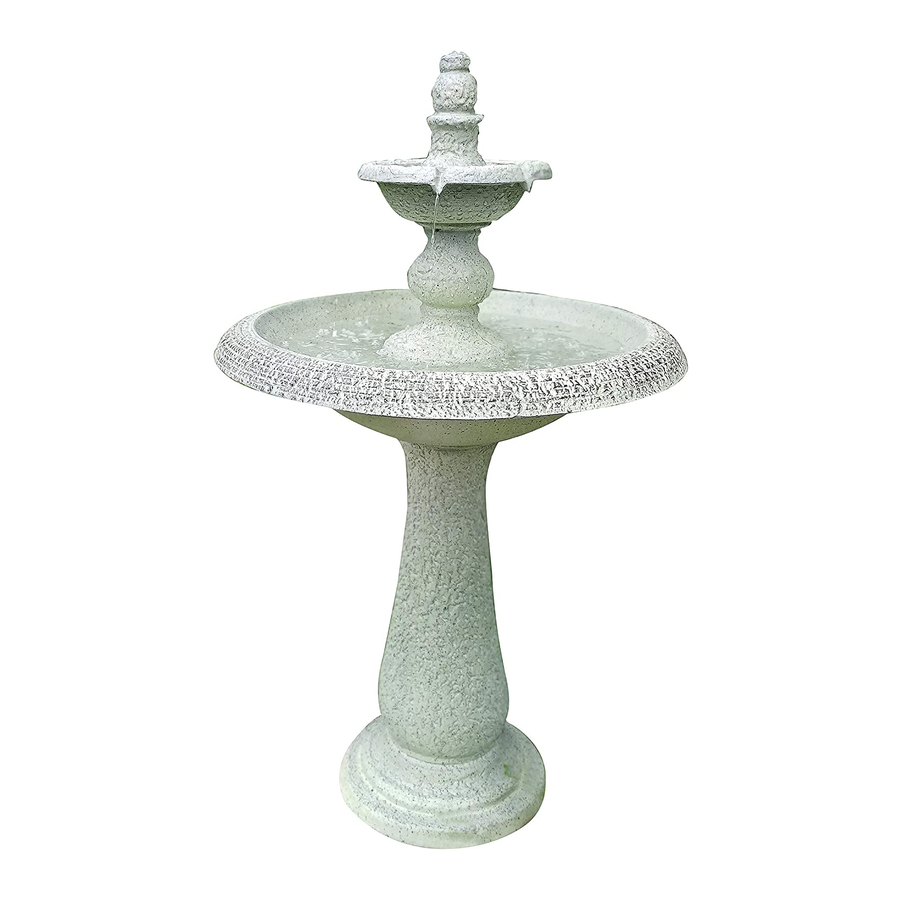

36" tiered fountain
Hide thumbs

Advertisement

Quick Links

Download this manual
Endura Clay
36" Tiered Fountain
FM-300

Advertisement

loading
Need help?

Need help?

Do you have a question about the Endura Clay FM-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Exaco Endura Clay FM-300

Summary of Contents for Exaco Endura Clay FM-300

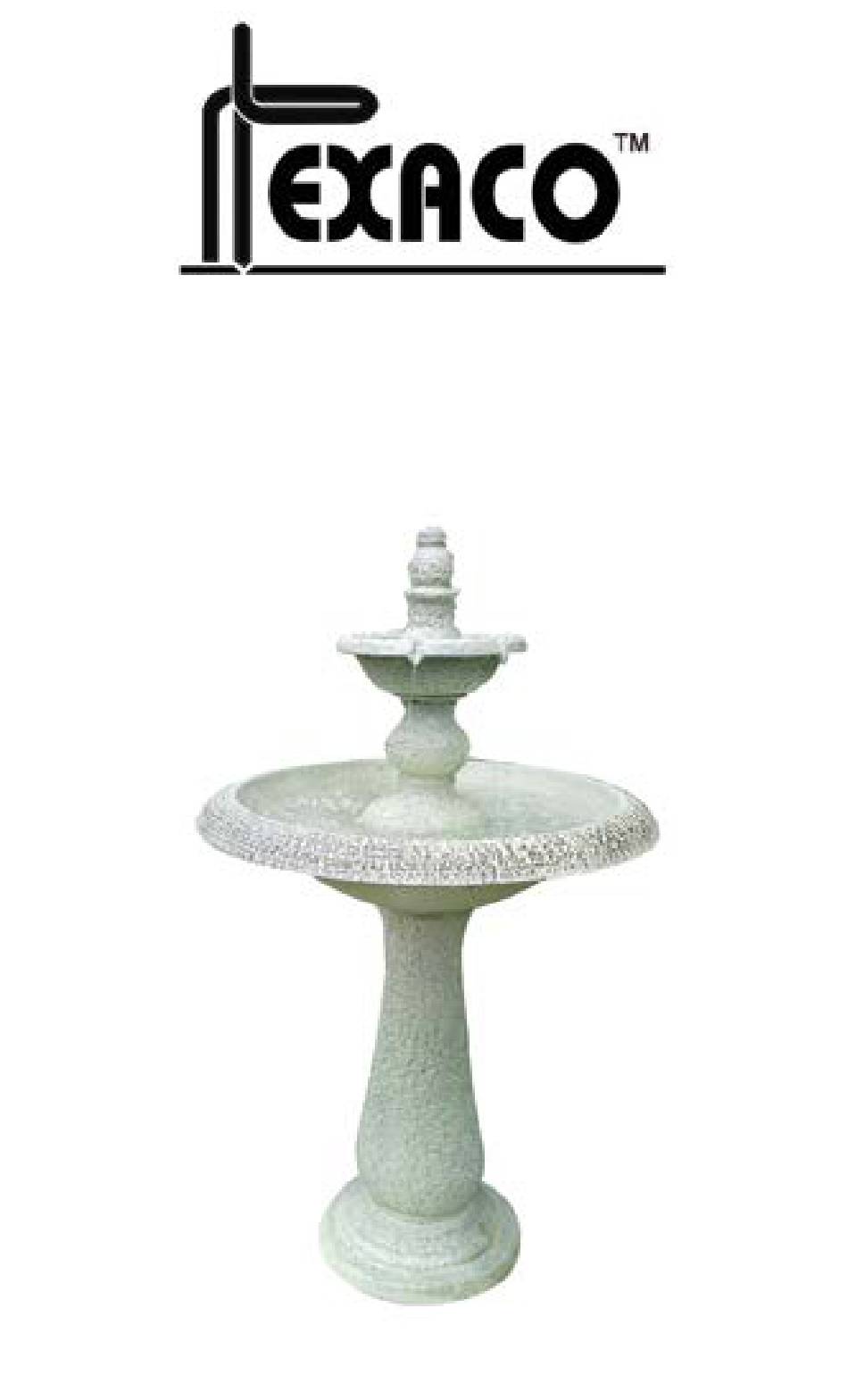

  • Page 1 Endura Clay 36” Tiered Fountain FM-300...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Topic Page Carton Contents Assembly Instructions Maintenance & Trouble Shooting About Your Fountain 1-877-760-8500 ext.701 • customerservice@exaco.com...

  • Page 4: Carton Contents

    CARTON CONTENTS Basin Fountain Top Pump Pedestal Pedestal ballast shield Base Shim Exaco Trading™ Co.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Place BASE on a flat surface. Twist the bottom of the PEDESTAL into the BASE until snug (do not over tighten). 1-877-760-8500 ext.701 • customerservice@exaco.com...
  • Page 6 ASSEMBLY INSTRUCTIONS Insert PUMP cord plug into the pipe on the top of the BASIN. Leave about 8 inches of cord in the BASIN with the PUMP. Exaco Trading™ Co.
  • Page 7 ASSEMBLY INSTRUCTIONS Set the BASIN down near the BASE/ PEDESTAL and feed the PUMP cord through the top of the PEDESTAL and out the bottom of the BASE. 1-877-760-8500 ext.701 • customerservice@exaco.com...
  • Page 8 ASSEMBLY INSTRUCTIONS Place the PEDESTAL BALLAST SHIELD around the PUMP cord at the bottom of the Optional inside of the PEDESTAL. Add rocks (or other ballast) to the PEDESTAL to add weight and increase stability. Exaco Trading™ Co.
  • Page 9 ASSEMBLY INSTRUCTIONS With the BASE/PEDESTAL on a flat surface, twist the BASIN into the PEDESTAL until snug (do not over tighten). 1-877-760-8500 ext.701 • customerservice@exaco.com...
  • Page 10 ASSEMBLY INSTRUCTIONS Route the PUMP cord through the notch on the bottom of the BASE. Exaco Trading™ Co. -10-...
  • Page 11 BASE. d. Set the FOUNTAIN TOP right-side-up over the BASIN pipe and the PUMP. Twist the FOUNTAIN TOP about one quarter turn to lock the FOUNTAIN TOP into place. 1-877-760-8500 ext.701 • customerservice@exaco.com -11-...
  • Page 12 ASSEMBLY INSTRUCTIONS Fill the FOUNTAIN TOP with water until it overflows into the BASIN. Fill the BASIN until water is about 1 inch from the top of the BASIN. Exaco Trading™ Co. -12-...
  • Page 13 BASIN to release air bubbles caught in the PUMP. If water is not flowing evenly around the FOUNTAIN TOP, level the fountain by placing SHIMS under the edge of the BASE, then break off any extra SHIM material. 1-877-760-8500 ext.701 • customerservice@exaco.com -13-...

  • Page 14: Maintenance

    2) Submerge pump in water in Basin and shake pump to release air bubbles. 3) Plug in fountain and let pump run for 10 seconds, then unplug fountain. 4) Reassemble the pump with the Fountain Top and Reinstall Fountain Top on fountain. Exaco Trading™ Co. -14-...

  • Page 15: Trouble Shooting

    7) Rinse impeller, impeller cover, and impeller chamber to remove all debris. 8) Replace impeller and replace impeller cover. BE SURE TO REPLACE IMPELLER COVER COM- PLETELY OR WATER WILL NOT FLOW. 9) Replace filters and front panel. 10)Reassemble Fountain. 1-877-760-8500 ext.701 • customerservice@exaco.com -15-...

  • Page 16: About Your Fountain

    ABOUT YOUR FOUNTAIN Congratulations on your purchase of an Exaco Endura Clay fountain! Your fountain is made of Endura Clay. Endura Clay is a mixture of clay and recycled polymer that is combined and formed under high temperature and extremely high pressure.
