THERMOMETER
Model : PTM-816
OPERATION MANUAL
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529
mrc@mrclab.com
Your purchase of this
METER marks a step
forward for you into the
field
of
precision
measurement.
Although this METER is
a complex and delicate
instrument, its durable
structure
will
many years of use if
p r o p e r
o p e r a t i n g
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
and always keep this
manual
within
reach.
MRC.7.21
allow
a r e
carefully
easy
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MRC PTM-816
Summary of Contents for MRC PTM-816

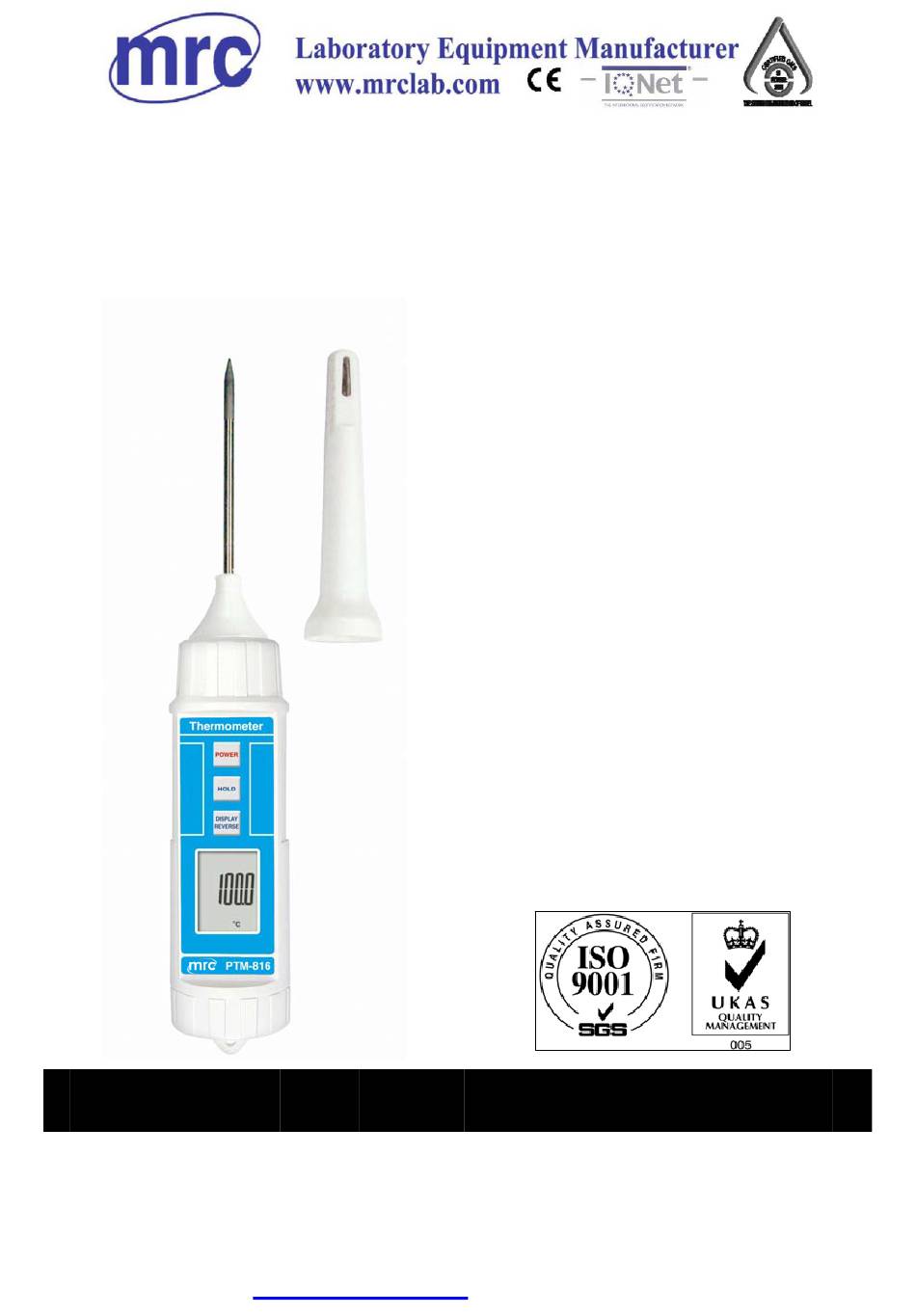

- Page 1 THERMOMETER Model : PTM-816 Your purchase of this METER marks a step forward for you into the field precision measurement. Although this METER is a complex and delicate instrument, its durable structure will allow many years of use if...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............1 2-1 General Specifications..........1 2-3 Electrical Specifications ........3 3. FRONT PANEL DESCRIPTION........4 3-1 Temp. Probe Cover..........4 3-2 Temp. Probe Sensing Head........4 3-3 Power Button............4 3-4 Hold Button............4 3-5 Display Reverse Button........4 3-6 LCD Display............ -
Page 3: Features
1. FEATURES * Heavy duty and all in one pen type thermometer. / , 0.1 degree. ℃ ℉ * Meter can default the measuring unit to ℃ ℉ * Two type display, normal or reverse, easy for operation. * IP67, water proof and protection. * Data hold to freeze the display value. - Page 4 Data Hold Freeze the display reading. Sampling Time Approx. 1 second. Protection IP67, water proof. Operating 0 to 50 ℃ * Meter only. Temperature Operating Less than 80% R.H. * Meter only. Humidity Power Supply DC 1.5 V battery ( UM4/AAA ) x 4 PCs, Power Current Approx.
-
Page 5: Electrical Specifications
2-2 Electrical Specifications (23± 5 ℃ Resolution Range Accuracy 0.1 ℃ -40.0 to 230.0 ℃ ± ( 0.4 % + 0.8 ℃ 0.1 ℉ -40.0 to 446.0 ℉ ± ( 0.4 % + 1.5 ℉ Above specification tests under the environment RF Field Strength less than 3 V/M &... -
Page 6: Front Panel Description
3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Temp. Probe Cover 3-2 Temp. Probe Sensing Head 3-3 Power Button 3-4 Hold Button 3-5 Display Reverse Button 3-6 LCD Display 3-7 Battery Compartment/Cover... -
Page 7: Measuring Procedure
4. MEASURING PROCEDURE 4-1 Probe installation " Temp. Probe Sensing Head " ( 3-2, Fig. 1 ) is packed sepeartely with the main meter's body. Before the measurement, should install the " Temperature Probe " into the meter's body, the installation procedures please refer to the following Fig. -
Page 8: Temperature Measurement
4-2 Temperature measurement 1)Turn on the meter by pressing the " Power Button " ( 3-3, Fig. 1 ) momentarily. * Press the " Power Button " ( 3-3, Fig. 1 ) momentarily again will turn off the meter. 2)Insert the '" Temp. Probe Sensing Head " ( 3-2, Fig. 1 ) into the material that intend to measure the temperature. -
Page 9: Change The ℃ ℉ , Unit
Normal Reverse display display 4-5 Change the unit ℃ ℉ 1)Refer to Fig. 3 , open the " Battery Cover " ( 3-7, Fig. 1 ), use the finger ( middle finger ) to hold the battery cover and let the snap contact the batteries completely. 2)Turn on the meter by pressing the "... -
Page 10: Battery Replacement
5. BATTERY REPLACEMENT * Replace the batteries when the left corner of the LCD displays the low battery icon " ", using 4 fresh 1.5 V ( UM4, AAA ) batteries. * To change the batteries, open ( rotate clockwise direction ) the "...
