Allen Engineering Corporation RS832 Operations & Parts Manual

Roller screed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

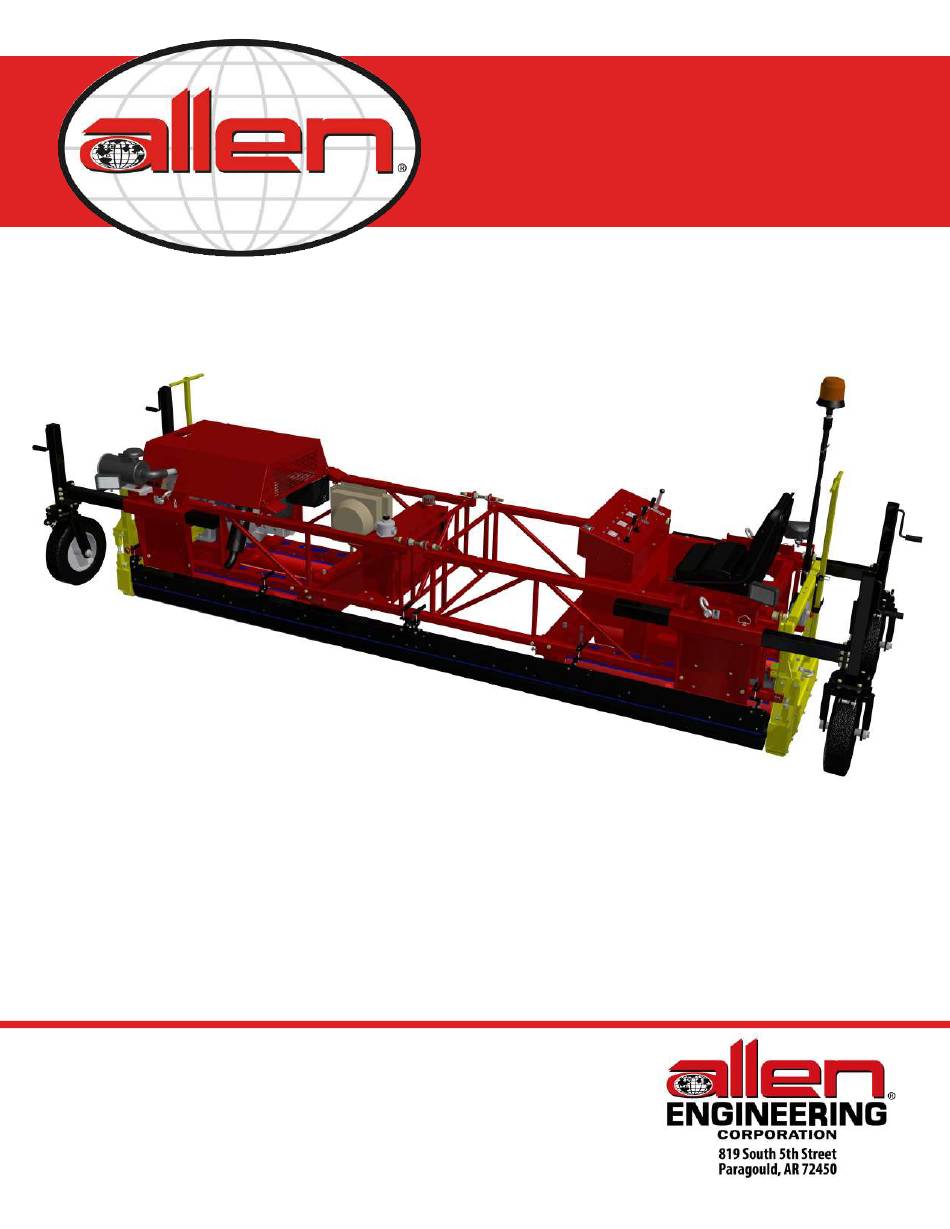

OPERATIONS-PARTS
MANUAL
RS832
Roller Screed
056840 - 10/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS832 and is the answer not in the manual?

Questions and answers

Related Manuals for Allen Engineering Corporation RS832

Summary of Contents for Allen Engineering Corporation RS832

  • Page 1 OPERATIONS-PARTS MANUAL RS832 Roller Screed 056840 - 10/2012...
  • Page 2 This manual, or a copy of it, must be kept with the machine at all times. There is a manual storage container located on the machine for your convenience. 056840 - 10/2012...
  • Page 3 Allen Engineering Corporation (AEC). AEC assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
  • Page 4 Limited Warranty LIMITED WARRANTY and LIMITATION OF LIABILITY Allen Engineering Corporation (“Allen”) warrants its products to be free of defects in material or workmanship for the following periods: New Machines and Parts....................One Year Warranty period begins on first day of use by End User. This first day of use is established by the date of a completed Allen Warranty Card or a Bill of Sale to the End User.

  • Page 5: Table Of Contents

    Table of Contents Sect No. Title Page Limited Warranty Table of Contents Information Contained In This Manual Dealer Information Ordering Parts Model Number - Serial Number Codes viii Unit Identification Technical specifications Engine Specifications Machine Dimensional Specifications Safety State Regulations Federal Regulations General Safety Information Safety Symbols...

  • Page 6: Table Of Contents

    Table of Contents - Continued Sect No. Title Page Parts Factory Service Information Replacement Part Procedure Rear Walkway and Ballast Assembly Paving Tube Motor Assembly Paving Tube Idle Assembly Drive Tube Frame Assembly 4-10 Drive Tube Assembly 4-12 Drive Tube Scraper Assembly 4-14 Drive Tube Idle Assembly 4-16...

  • Page 7: Information Contained In This Manual

    Complete any warranty requirements as specified by the engine manufacturer in their instructions found inside the manual box located on the operator’s control panel. Your engine is not manufactured by Allen Engineering Corporation, Inc, and therefore is not covered under Allen Engineering Corporation, Inc warranty.

  • Page 8: Dealer Information

    Dealer Information Your Dealer has Allen Engineering Corporation trained mechanics and original Allen replacement parts. Always contact the Allen Dealer who sold you this machine for Allen Certified repairs and replacement parts. Place Allen Dealer information below for future reference.

  • Page 9: Ordering Parts

    Ordering Parts Section 4.0 contains illustrated parts lists for help in ordering replacement parts for your machine. Fol- low the instructions below when ordering parts to insure prompt and accurate delivery: All orders for service parts - include the serial number for the machine. Shipment will be delayed if this information is not available.

  • Page 10: Model Number - Serial Number Codes

    Below is the terminology when refering to the RS Series Roller Screeds. This terminology will explain the machine, engine size, length and whatever options are installed. Example: RS832-28-S-F-R-B-C-PL-PD-A Roller Screed 800 Series - 8” Diameter Concreting Tube - 1/4” (.25”) Wall Thickness - 20.69 lbs/ft.

  • Page 11: Unit Identification

    Unit Identification Unit Identification Plate Location: An identification plate listing the model number and the serial number is attached to each unit and is located on the top left hand corner of the operator control panel. See image below for serial number plate number location.

  • Page 12: Technical Specifications

    Technical Specifications - RS832 MODEL RS832 Available Lengths 14’ (4.26M) - 34’ (10.4M) {2’ (.6M) increments} Working Width 12’ (3.65M) - 32’ (9.75M) Paving Tube Diameter 8” (203mm) Paving Tube Thickness .25” (6.35mm) Paving Tube Speed 165 RPM Maximum Steerable Polyurethane Covered Drive Tube 8”...

  • Page 13: Engine Specifications

    Engine Specifications - RS832 Kubota V1105-T-E3B Emission Regulation Interim Tier4 /Stage lllA Type Vertical 4-cycle liquid cooled Diesel Number of Cylinders Bore mm(in) 78.0(3.07) Stroke mm(in) 78.4(3.09) Displacement L (cu.in) 1.123(68.53) Combustion System Intake System Turbocharged Maximum Speed 3000 Output: 24.5...
  • Page 14 Dimensional Specifications This is the dimension for a 14’ machine. Increments of 2’ up to 34’ are applicable. 056840 - 10/2012 Page xii...

  • Page 15: Safety

    SECTION 1 SAFETY Section 1 SAFETY Page 1-1 056840 - 10/2012...

  • Page 16: State Regulations

    State Regulations SECTION 1 Proposition 65 Warning SAFETY Page 1-2 056840 - 10/2012...
  • Page 17 Federal Regulations SECTION 1 Respiratory Hazards SAFETY Page 1-3 056840 - 10/2012...
  • Page 18 1.1 Safety Information SECTION 1 SAFETY Do not operate or service the equipment before reading the entire manual. Safety precautions should be followed at all times when operating this equipment. Failure to read and understand the safety mes- sages and operating instructions could result in injury to yourself and others. SAFETY NOTES The four safety notes shown below will inform you about potential hazards that could injure you or oth- ers.
  • Page 19 1.2 Safety Symbols SECTION 1 SAFETY Potential hazards associated with the operation of this equipment will be referenced with hazard symbols which may appear throughout this manual in conjunction with safety notes. Page 1-5 056840 - 10/2012...

  • Page 20: General Safety

    1.3 General Safety SECTION 1 SAFETY ● NEVER operate this equipment without proper protective clothing, shatterproof glasses, respiratory protection, hearing protection, steel-toed boots and other protective devices required by the job or city and state regulations. ● ALWAYS avoid wearing jewelry or loose fitting clothes that may snag on the controls or moving parts as this can cause serious injury.
  • Page 21 1.3 General Safety (cont’d) SECTION 1 SAFETY ● ALWAYS know the location of the nearest phone or keep a phone on the job site. Also, know the phone numbers of the nearest ambulance, doctor and fire department. This information will be invalu- able in the case of an emergency.
  • Page 22 1.3 General Safety (cont’d) SECTION 1 SAFETY ● ALWAYS keep the machine in proper running condition. ● Fix damage to machine and replace any broken parts immediately. ● ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children and unauthorized personnel.
  • Page 23 1.3 General Safety (cont’d) SECTION 1 SAFETY ● DO NOT start the engine near spilled fuel or combustible fluids. Fuel is extremely flammable and its vapors can cause an explosion if ignited. ● ALWAYS refuel in a well-ventilated area, away from sparks and open flames. ●...
  • Page 24 1.3 General Safety (cont’d) SECTION 1 SAFETY ● ALWAYS recharge the battery in a well-ventilated environment to avoid the risk of a dangerous con- centration of combustible gases. ● If the battery liquid (dilute sulfuric acid) comes into contact with clothing or skin, rinse skin or clothing immediately with plenty of water.
  • Page 25 1.4 Transportation Safety SECTION 1 SAFETY ● NEVER allow any person or animal to stand underneath the equipment while lifting. ● Ride-on screeds are very heavy and awkward to move around. Use proper heavy lifting procedures. ● Machine can be transported on a flatbed truck of proper weight capacity. ●...

  • Page 26: Transportation Safety

    1.4 Transportation Safety (cont’d) SECTION 1 SAFETY ● Make sure the hitch and coupling of the towing vehicle are rated equal to, or greater than the trailer “gross vehicle weight rating.” ● ALWAYS inspect the hitch and coupling for wear. Never tow a trailer with defective hitches, couplings, chains, etc.

  • Page 27: Operations

    SECTION 2 OPERATIONS Section 2 OPERATIONS Page 2-1 056840 - 10/2012...

  • Page 28: General Information

    2.1 General Information SECTION 2 OPERATIONS The RS Series Roller Screeds are self-propelled and are hydraulically driven and require only one op- erator, two laborers and two concrete placers. The screed is expandable from 14 ft. (4.26 m) to 34 ft. (10.36 m).
  • Page 29 The power unit is powered by Kubota diesel engines, a 32HP on the RS832 and a 44 HP on the RS844. Coupled to the diesel engine is a hydraulic drive pump which provides the hydraulic pressure neces- sary to rotate the drive and paving tubes.
  • Page 30 2.1 General Information (continued) SECTION 2 OPERATIONS Wood forms are not a preferred method of screed support. Because of the concentrated bearing loads by the screed, wood is not a good support material. Nominal 2 X 1-1/2 No. 2 Douglas Fir is calculated to support a maximum of 1000 lbs.
  • Page 31 2.1 General Information (continued) SECTION 2 OPERATIONS CHUTE OPERATOR PAVING FORM FORM VISIT US!!! www.alleneng.com LIKE US!!! www.facebook.com/AllenEngineering FOLLOW US!!! @alleneng www.youtube.com/AllenMachinery WATCH US!!! Page 2-5 056840 - 10/2012...
  • Page 32 2.1 General Information (continued) SECTION 2 OPERATIONS This equipment was designed with user safety in mind; however it can present hazards if improperly operated or misused. The application of this roller screed is to strike off the surface of the concrete at a predetermined grade. This equipment is to be used only for its intended application and for no other purpose.
  • Page 33 2.2 Operational Controls SECTION 2 OPERATIONS Page 2-7 056840 - 10/2012...

  • Page 34: Operational Controls

    2.2 Operational Control (continued) SECTION 2 OPERATIONS The definitions below describe the controls and functions of the Roller Screed. 1. Operators Seat — Provides an unobstructed view of the work area. Seat is adjustable. 2. Control Panel — Contains all operating controls. 3.
  • Page 35 2.2 Operational Control (continued) SECTION 2 OPERATIONS 17. Paving Tube Adjustment — Located on the frame ends. Required for the adjustment of paving tube. 18. Pull Handle — When maneuvering of the screed is required for small distances, insert the hooks on the pull handle into to the wheel pins, then pull on handle to move screed to desired location.

  • Page 36: Before Starting

    2.3 Before Starting SECTION 2 OPERATIONS The following instructions are intended as a basic guide for machine start-up and operation. Following these instructions will help preserve and maintain the life of this equipment. Fuel Check DO NOT smoke while refuling, diesel fuel is highly flammable and can be dangerous if mishandled. 1.

  • Page 37: Starting

    2.4 Starting SECTION 2 OPERATIONS 1. On the power unit place the operation valve lever in the screed position 2. Sit down in operator’s seat. 3. Place the two drive tube directional control levers in the middle position. 4. Place the drive tube speed control lever in the OFF position. 5.

  • Page 38: Operating

    2.5 Operating SECTION 2 OPERATIONS 1. Fully engage the operator end directional drive tube control levers in the forward direction. 2. Move the drive tube speed control lever slightly forward(a few rpm’s) and verify that both drive tubes rotate. 3. Fully engage the operator end directional drive tube control lever in the reverse (pull back) direction.

  • Page 39: Service

    SECTION 3 SERVICE Section 3 SERVICE Page 3-1 056840 - 10/2012...

  • Page 40: General Maintenance

    3.1 General Maintenance SECTION 3 SERVICE When performing maintenance on the roller screed or engine, follow all safety messages and rules for safe operation stated at the beginning of this manual. See the engine manual supplied with your machine for appropriate engine maintenance schedule and troubleshooting guide for problems.
  • Page 41 3.2 Air Cleaner SECTION 3 SERVICE This machine is equipped with a replaceable, high-density paper air cleaner element. Check the air cleaner daily or before starting the engine. Check for and correct heavy buildup of dirt and debris along with loose or damaged components. 1.

  • Page 42: Engine Oil And Oil Filter

    3.3 Engine Oil and Oil Filter SECTION 3 SERVICE 1. Change the engine oil and filter after the first 5 hours of use, then change oil every 6 months or 150 hours. 2. Remove the oil filler cap and fill engine crankcase with recommended type oil as listed in the table below.
  • Page 43 3.4 Engine Fuel Filter SECTION 3 SERVICE 70000-43081 Replace the engine fuel filter every 800 hours. Refer to your engine manual for specific details to perform this operation. Check the oil and fuel lines and connections regularly for leaks or damage. Repair or replace as necessary.

  • Page 44: Battery And Charging System

    3.5 Battery and Charging System SECTION 3 SERVICE Mishandling of the battery shortens its service life and adds to maintenance cost. 1. Check and clean battery terminals for corrosion often. 2. Check the battery regularly and make sure that each electrolyte level is to the bottom of the vent well.

  • Page 45: Bearing Lubrication

    3.6 Bearing Lubrication SECTION 3 SERVICE Paving tube and drive tube bearings require lubrication daily. Lubricate all bearing grease fittings with EP3 grease or equivalent. Failure to lubricate bearing grease fittings daily will cause rotation of drive and paving tubes to stiffen. To prevent contamination of the bear- ing, always insert cap onto zerk fitting.

  • Page 46: Hydraulic System

    3.7 Hydraulic System SECTION 3 SERVICE The hydraulic system consists of a hydraulic pump directly coupled to the engine. Hydraulic oil is filtered by a screen filter located in the tank filler neck, a return filter that is located on top of the hydraulic tank, and a suction filter that screws in to the bottom of the hydraulic tank.

  • Page 47: Hydraulic System Filters

    3.8 Hydraulic System Filters SECTION 3 SERVICE 1. Place the machine on a clean flat work area. 2. Remove the hydraulic oil drain plug and drain the hydraulic oil. Dispose of the used oil in an environmentally friendly manner. Replace the drain plug and tighten. 3.
  • Page 48 Notes SECTION 3 SERVICE Page 3-10 056840 - 10/2012...

  • Page 49: Parts

    SECTION 4 PARTS Section 4 PARTS Page 4-1 056840 - 10/2012...

  • Page 50: Factory Service Information

    Factory Service Information SECTION 4 PARTS This section contains the illustrated drawings and parts list for help in identifying and/or ordering re- placement parts for your machine. Follow the instructions in the front section of this manual “Ordering Parts” when ordering replacement parts to insure prompt and accurate delivery. The FRONT and/or REAR orientations are defined from the operator’s view of sitting on machine (SOM).

  • Page 51: Replacement Part Procedure

    Replacement Parts Procedures SECTION 4 PARTS We recommend AEC quality replacement parts, available from the AEC Customer Service Department or your nearest AEC Dealer. Part numbers are subject to change without notice. Part numbers might be different outside of the United States of America.
  • Page 52 Rear Walkway and Ballast Tube SECTION 4 Illustration PARTS Page 4-4 056840 - 10/2012...
  • Page 53 Rear Walkway and Ballast Tube SECTION 4 Parts List PARTS ITEM PART # DESCRIPTION 010023 FSTN, HHCS 5/16-18 X 1-3/4 010036 FSTN, HHCS 3/8-16 X 1 010068 FSTN, HHCS 1/2-13 X 1-1/4 GR 5 010076 FSTN, HHCS 1/2-13 X 3 GR 5 010082 FSTN, FW 5/16 010083...

  • Page 54: Paving Tube Motor Assembly

    Paving Tube Motor Assembly SECTION 4 Illustration PARTS Page 4-6 056840 - 10/2012...
  • Page 55 Paving Tube Motor Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010001 FSTN, HHCS 1/4-20 X 1/2 GR 5 010036 FSTN, HHCS 3/8-16 X 1 010067 FSTN, HHCS 1/2-13 X 1 010068 FSTN, HHCS 1/2-13 X 1-1/4 GR 5 010083 FSTN, FW 3/8 010089...

  • Page 56: Paving Tube Idle Assembly

    Paving Tube Idle Assembly SECTION 4 Illustration PARTS Page 4-8 056840 - 10/2012...
  • Page 57 Paving Tube Idle Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010036 FSTN, HHCS 3/8-16 X 1 010037 FSTN, HHCS 3/8-16 X 1-1/4 GR 5 010067 FSTN, HHCS 1/2-13 X 1 010083 FSTN, FW 3/8 010091 FSTN, LW 3/8 010106 FSTN, NUT HEX 1/2-13 029222...

  • Page 58: Drive Tube Frame Assembly

    Drive Tube Frame Assembly SECTION 4 Illustration PARTS 1 13 Left Hand Shown Page 4-10 056840 - 10/2012...
  • Page 59 Drive Tube Frame Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010001 FSTN, HHCS 1/4-20 X 1/2 GR 5 010036 FSTN, HHCS 3/8-16 X 1 010037 FSTN, HHCS 3/8-16 X 1-1/4 GR 5 010043 FSTN, HHCS 3/8-16 X 2-3/4 010083 FSTN, FW 3/8 010089...

  • Page 60: Drive Tube Assembly

    Drive Tube Assembly SECTION 4 Illustration PARTS Page 4-12 056840 - 10/2012...
  • Page 61 Left Drive Tube Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 011791 KEY, 1/4 SQ X 1 LG MACHINE 020542 FSTN, NUT STOVER LOCK 1/4-20 033711 FSTN, HHCS 1/2-13 X 4 1/2” 033936 SPRING, SCRAPER ASSEMBLY TRTP 057045 SCRAPER ASSSEMBLY FOR 5’...

  • Page 62: Drive Tube Scraper Assembly

    Drive Tube Scraper Assembly SECTION 4 Illustration PARTS Page 4-14 056840 - 10/2012...
  • Page 63 Drive Tube Scraper Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010002 FSTN, HHCS 1/4-20 X 3/4 010081 FSTN, FW 1/4 020542 FSTN, NUT STOVER LOCK 1/4-20 057030 WELDMENT, 5’ SCRAPER 057032 SCRAPER, TIVAR FOR RS800 SERIES VISIT US!!! www.alleneng.com LIKE US!!! www.facebook.com/AllenEngineering...

  • Page 64: Drive Tube Idle Assembly

    Drive Tube Idle Assembly SECTION 4 Illustration PARTS Page 4-16 056840 - 10/2012...
  • Page 65 Drive Tube Idle Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010036 FSTN, HHCS 3/8-16 X 1 010037 FSTN, HHCS 3/8-16 X 1-1/4 GR 5 010067 FSTN, HHCS 1/2-13 X 1 010083 FSTN, FW 3/8 010091 FSTN, LW 3/8 010093 FSTN, LW 1/2 010193...

  • Page 66: Manaul Jack Assembly

    Manual Jack Assembly SECTION 4 Illustration PARTS Page 4-18 056840 - 10/2012...
  • Page 67 Manual Jack Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 011490 FSTN, FW HARDENED 1/2 037798 FSTN, HHCS 1/2-13 X 1 1/2 GR8 040208 FSTN, 1/2-13 STOVER NUT 053448 DECAL, LIFT HERE ONLY (SP) 055039 FSTN, LW 1/2 GR8 YELLOW ZINC 055040 FSTN, NUT HEX 1/2-13 GR8 YELLOW ZINC 055310...
  • Page 68 Manual Jack Assembly (cont’d) SECTION 4 Illustration PARTS Page 4-20 056840 - 10/2012...
  • Page 69 Manual Jack Assembly (cont’d) SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 057681 ASSEMBLY, 18” WHEEL & YOKE F/ PNEUMATIC 051629 COTTERS, HAIRPIN 057675 FSTN, HHCS 1 1/4-7 X 9” LONG GR8 057679 CLEVIS PIN 5/8 X 3” LONG ZINC PLATED 057868 WHEEL AND TIRE ASSEMBLY 16”...

  • Page 70: Fuel Filter Replacement

    Fuel Filter Replacement SECTION 4 PARTS PART #: 70000-43081 PART #: 043920 Page 4-22 056840 - 10/2012...
  • Page 71 Oil Filter Replacement SECTION 4 PARTS PART #: 16271-32090 Page 4-23 056840 - 10/2012...

  • Page 72: Hydraulic Tank Assembly

    Hydraulic Tank Assembly SECTION 4 Illustration (057220) PARTS Page 4-24 056840 - 10/2012...
  • Page 73 Hydraulic Tank Assembly SECTION 4 Parts List (057220) PARTS ITEM PART NO. DESCRIPTION 001002-2 HYDRAULIC OIL, AW32 12 Gal. 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010090 FSTN, LW 5/16 032268 UNIT, CHROME LOCKABLE GAS-HYDRA TANK CAP 038949 FILTER, RETURN LINE 040072 STRAINER, SMALL HYD.

  • Page 74: Paving Tube Scraper Assembly

    Paving Tube Scraper Assembly SECTION 4 Illustration PARTS Left Hand Shown Page 4-26 056840 - 10/2012...
  • Page 75 Paving Tube Scraper Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010002 FSTN, HHCS 1/4-20 X 3/4 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010020 SCR, 5/16-18x1 HHC 010081 FSTN, FW 1/4 010082 FSTN, FW 5/16 010090 FSTN, LW 5/16 012612 FSTN, NUT HEX NYLOCK 5/16-18...

  • Page 76: Operator Control Panel Assembly

    Operator Control Panel Assembly SECTION 4 Illustration PARTS Page 4-28 056840 - 10/2012...
  • Page 77 Operator Control Panel Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010002 FSTN, HHCS 1/4-20 X 3/4 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010024 FSTN, HHCS 5/16-18 X 2 GR 5 010043 FSTN, HHCS 3/8-16 X 2-3/4 010083 FSTN, FW 3/8 010089...
  • Page 78 Operator Control Panel Assembly (cont’d) SECTION 4 Illustration PARTS INSIDE Page 4-30 056840 - 10/2012...
  • Page 79 Operator Control Panel Assembly (cont’d) SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010002 FSTN, HHCS 1/4-20 X 3/4 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010024 FSTN, HHCS 5/16-18 X 2 GR 5 010043 FSTN, HHCS 3/8-16 X 2-3/4 010083 FSTN, FW 3/8 010089...
  • Page 80 Strobe Light and Puller SECTION 4 Illustration PARTS Left Hand Shown Page 4-32 056840 - 10/2012...
  • Page 81 Strobe Light and Puller SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010045 FSTN, HHCS 3/8-16 X 3-1/4 010076 FSTN, HHCS 1/2-13 X 3 GR 5 010093 FSTN, LW 1/2 010106 FSTN, NUT HEX 1/2-13 020514 FSTN, NUT STOVER LOCK 3/8-16 035372 1/4 X 2 Quick Pin 057264...

  • Page 82: Power Unit Assembly

    Power Unit Assembly SECTION 4 Illustration (057500) PARTS 6 26 16 17 Page 4-34 056840 - 10/2012...
  • Page 83 Power Unit Assembly SECTION 4 Parts List (057500) PARTS ITEM PART NO. DESCRIPTION 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010021 FSTN, HHCS 5/16-18 X 1-1/4 GR5 010035 FSTN, HHCS 3/8-16 X 3/4 010036 FSTN, HHCS 3/8-16 X 1 010081 FSTN, FW 1/4 010082...
  • Page 84 Power Unit Assembly (cont’d) SECTION 4 Illustration PARTS 9 10 42 43 Page 4-36 056840 - 10/2012...
  • Page 85 Power Unit Assembly (cont’d) SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010021 FSTN, HHCS 5/16-18 X 1-1/4 GR5 010035 FSTN, HHCS 3/8-16 X 3/4 010036 FSTN, HHCS 3/8-16 X 1 010081 FSTN, FW 1/4 010082...
  • Page 86 Power Unit Assembly (cont’d) SECTION 4 Illustration PARTS Page 4-38 056840 - 10/2012...
  • Page 87 Power Unit Assembly (cont’d) SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010021 FSTN, HHCS 5/16-18 X 1-1/4 GR5 010035 FSTN, HHCS 3/8-16 X 3/4 010036 FSTN, HHCS 3/8-16 X 1 010081 FSTN, FW 1/4 010082...

  • Page 88: Idle End Assembly

    Idle End Assembly SECTION 4 Illustration PARTS Page 4-40 056840 - 10/2012...
  • Page 89 BUMPER, RUBBER ( 8884T21) MILL SPEC 3/4” DIA X 9/16 TALL 057264 PLATE, CONNECTING FOR HINGE PLATE FOR HOOD RS800 057265 PLATE, LATCH CONNECT FOR HOOD RS800 057266 ENGINE HOOD FOR RS832 ROLLER SCREED 057636 BRACKET, HYD. TANK MOUNT 057637 PLATE, COOLER MOUNT F/ POWER UNIT 057686...

  • Page 90: 5' Frame Section Assembly

    5’ Frame Section Assembly (057382) SECTION 4 Illustration PARTS Page 4-42 056840 - 10/2012...
  • Page 91 5’ Frame Section Assembly (057382) SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010001 FSTN, HHCS 1/4-20 X 1/2 GR 5 010024 FSTN, HHCS 5/16-18 X 2 GR 5 010087 FSTN, FW 3/4 010089 FSTN, LW 1/4 010090 FSTN, LW 5/16 010100 FSTN, NUT HEX 5/16-18 010112...

  • Page 92: 5' Scraper Assembly

    5’ Scraper Assembly (057386) SECTION 4 Illustration PARTS Page 4-44 056840 - 10/2012...
  • Page 93 5’ Scraper Assembly (057386) SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010002 FSTN, HHCS 1/4-20 X 3/4 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010020 FSTN, HHCS 5/16-18 X 1 010081 FSTN, FW 1/4 010082 FSTN, FW 5/16 010090 FSTN, LW 5/16 012612...

  • Page 94: Hydraulic Schematic

    Hydraulic Schematic SECTION 4 Illustration PARTS Page 4-46 056840 - 10/2012...
  • Page 95 HYD MOTOR F/ STRIKE OFF TUBE RS800 057226 TRIPLE PUMP RS 800 057227 KEP O SEAL FOR SHUTTLE VALVE 057276 HYD DRIVE TUBE MOTOR F/ RS 800 057813 HYDRAULIC HOSE KIT FOR RS832-14 057814 FITTING KIT FOR RS832 ROLLER SCREED Page 4-47 056840 - 10/2012...

  • Page 96: Hydraulic Fittings

    Hydraulic Fittings SECTION 4 Parts List PARTS PART # DESCRIPTION 044637 FITTING, F2403-8-8 045138 FTG., F2404-12-12-O 045142 FTG., F2404-10-12-0 045915 FTG, F6400-6-6-O STR JIC-SAE 045920 FTG, F6801-8-8-NWO 90° ELB 045921 FTG, F6400-8-8-O STR 045924 FTG, F6602-6-6-6-O TEE 045947 FTG, F6400-12-12-O STR 046354 F6400-08-10-0 FLARE-O FITTING 046362...

  • Page 97: Hydraulic Hoses

    Hydraulic Hoses SECTION 4 Parts List PARTS PART# HOSE DESCRIPTION HOSE END #1 FROM HOSE END #2 TO HOSE LENGTH HOSE SIZE 057788 RS832-16 #1 RETURN FILTER COOLER TOP 52” 057789 RS832-16 #2 PUMP TANK 32” 057790 RS832-16 #3 FRONT PUMP SUCT TANK 31”...

  • Page 98: Engine Electrical Schematic

    Engine Electrical Schematic SECTION 4 Illustration PARTS Page 4-50 056840 - 10/2012...
  • Page 99 Engine Electrical Schematic SECTION 4 Illustration PARTS Page 4-51 056840 - 10/2012...

  • Page 100: Machine Electrical Schematic

    Machine Electrical Schematic SECTION 4 Illustration PARTS Page 4-52 056840 - 10/2012...
  • Page 101 Machine Electrical Schematic SECTION 4 Illustration PARTS Page 4-53 056840 - 10/2012...

  • Page 102: Paving Tube Assembly

    Paving Tube Assembly SECTION 4 Illustration and Parts List PARTS ITEM PART NO. DESCRIPTION 057173-14 PAVING TUBE FOR RS800 SERIES, 14’ 057173-16 PAVING TUBE FOR RS800 SERIES, 16’ 057173-18 PAVING TUBE FOR RS800 SERIES, 18’ 057173-20 PAVING TUBE FOR RS800 SERIES, 20’ 057173-22 PAVING TUBE FOR RS800 SERIES, 22’...
  • Page 103 INTENTIONALLY BLANK 056840 - 10/2012...
  • Page 104 YOUR TOTAL SOURCE FOR CONCRETE EQUIPMENT 800-643-0095 or 870-236-7751 FAX: 800-643-0097 or 870-236-3934 P.O. Box 819 Paragould, Arkansas 72451 USA www.alleneng.com 056840 - 10/2012...
