Summary of Contents for XtraVac CM360

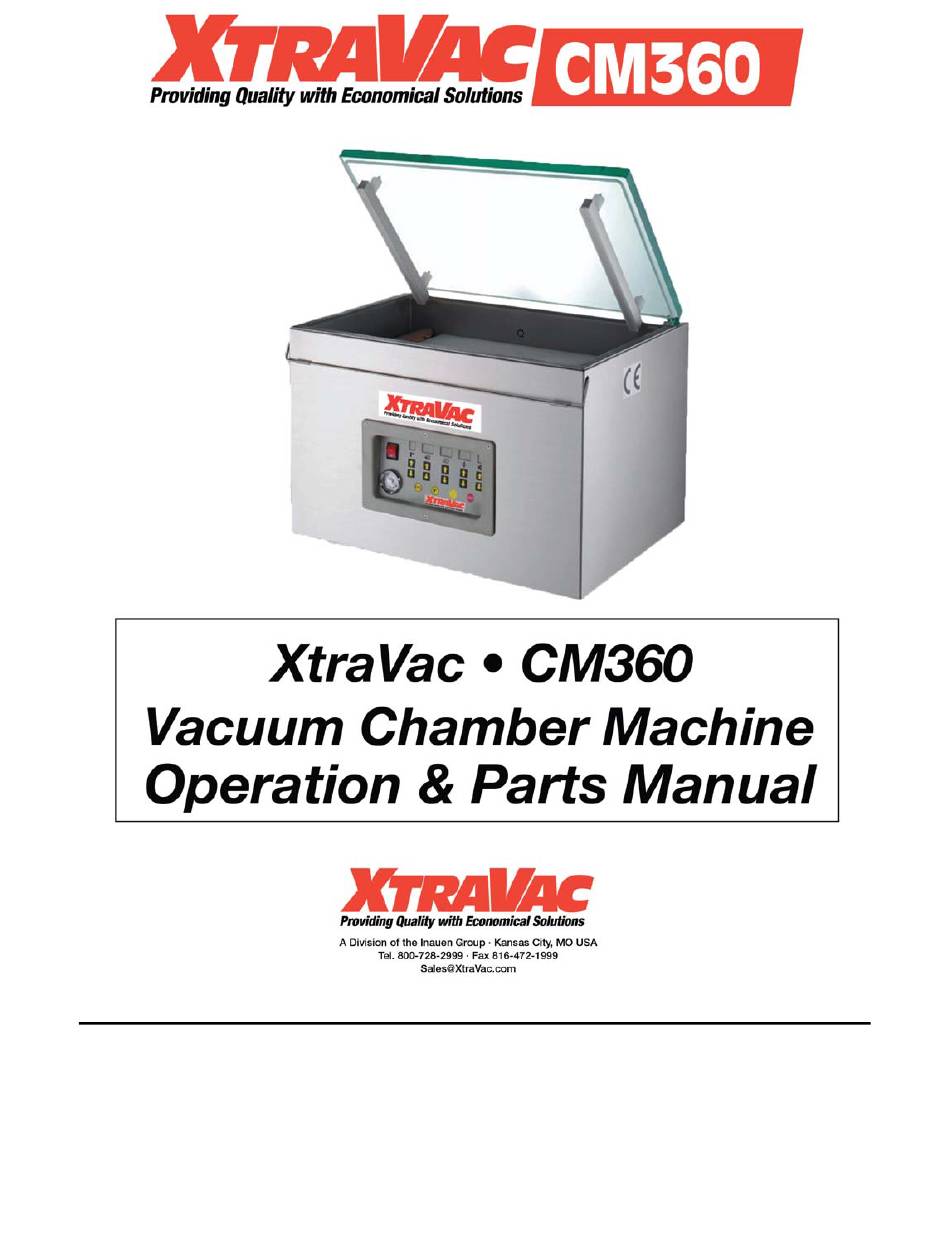

- Page 2 XtraVac CM360 Chamber Machine Operation and Parts Manual XtraVac CM 360 Safe Operation Practices General Operation ．Read, understand, and follow all instructions in the manual and on the machine before starting. Keep this manual in a safe place for further and regular reference and for ordering replacement parts.
-
Page 3: Table Of Contents
XtraVac CM360 Chamber Machine Operation and Parts Manual Content Chapter 1：Safety precautions 1.1 Precautions of transportation, installation and packing 1.2 Precautions before and after machine starting Chapter 2：Overall description of the machine 2.1 Features of the machine 2.2 Function of the machine 2.3 Product proper for this machine... -
Page 4: Precautions Of Transportation, Installation And Packing
XtraVac CM360 Chamber Machine Operation and Parts Manual V1.02 Chapter 1：Safety precautions 1.1 Precautions of transportation, installation and packing 1.1.1 Preparations before installation 1.1.1.1 Power requirement: Voltage: Look at the nameplate Current: Look at the nameplate Frequency: 50/60Hz Phase: 1Ø... - Page 5 XtraVac CM360 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM360 Chamber Machine...
-
Page 6: Precautions Before And After Machine Starting
XtraVac CM360 Chamber Machine Operation and Parts Manual 1.1.2 Preparations during transportation 1.1.2.1 The weight of this machine is 80kg, so that the loading capacity of any handling device is recommended to be more than 150kg. If you are not sure of the safe loading capacity, please contact the manufacturer of such handling device. - Page 7 XtraVac CM360 Chamber Machine Operation and Parts Manual 1.2.1.4 Check that whether all the safety related devices are normal, and notice that whether anyone within the danger zone. 1.2.1.5 Visual check that whether all mechanical and electric parts are normal, and also notice that whether the surrounding environment is clean.
-
Page 8: Chapter 2：Overall Description Of The Machine
XtraVac CM360 Chamber Machine Operation and Parts Manual Chapter 2：Overall description of the machine 2.1 Features of the machine 2.1.1 The machine main body is made of stainless steel with features of pretty appearance, well endurance and easy cleaning. 2.1.2 The machine adopts high vacuum pump specific for food packaging and micro- computerized auto control system with 10 sets of friendly memory function and independent display. - Page 9 XtraVac CM360 Chamber Machine Operation and Parts Manual 2.4.1 Nameplate: stuck on the right/upper side of the machine 2.4.2 Warning sign: stuck on the rear side of the machine XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com...
-
Page 10: Specification Of The Machine
XtraVac CM360 Chamber Machine Operation and Parts Manual 2.5 Specification of the machine Type Xtra Vac360LR Machine dimension 655*495*428mm Vacuum chamber 600*376*134mm dimension Sealing line dimension 360mm* 2 Optional accessory Nitrogen filling function Machine weight 70 kg Motor 0.5 kW Heater 0.9 kW... -
Page 11: Chapter 3：Function Description Of The Pushbuttons On The Panel
XtraVac CM360 Chamber Machine Operation and Parts Manual Chapter 3：Function description of the pushbuttons on the panel Ｐ Ｐ STOP REPROG Memory set display (10 sets) Vacuum time display Nitrogen filling time display Sealing time display Cooling time display Memory release key... - Page 12 XtraVac CM360 Chamber Machine Operation and Parts Manual 3.1 Memory set display(A): display the current memory set (e.g. ”3” means the 3 set) 3.2 Vacuum time display(B): display the current setting of vacuum time (unit: 1/s) 3.3 Nitrogen filling time display(C): display the current setting of nitrogen filling time (unit: 1/s) 3.4 Sealing time display(D): display the current setting of sealing time (unit: 0.1/s)
-
Page 13: Chapter 4：Instructions Of Operation, Maintenance And Troubleshooting
XtraVac CM360 Chamber Machine Operation and Parts Manual Chapter 4：Instructions of operation, maintenance and troubleshooting 4.1 Operation sequence: 4.1.1 Press power switch (057), then the indicator of the display screen is lit. 4.1.2 Press “memory release” key, then the display screen starts flashing. - Page 14 XtraVac CM360 Chamber Machine Operation and Parts Manual 4.2.5 The disposal of discarded material should be in accordance with the local environmental regulations. 4.2.6 Detail drawing of the oil pump 1. Oil filling hole 2. Oil sight glass 3. Oil draining hole 4.3 Troubleshooting...
-
Page 15: Chapter 5：Related Environment And Accessories Of The Machine
XtraVac CM360 Chamber Machine Operation and Parts Manual Chapter 5：Related environment and accessories of the machine 5.1 Accessory: 5.1.1 Standard accessory: 5.1.1.1 Heat-resistance cloth: 1 piece 5.1.1.2 Heating wire: 2 pieces 5.1.2 Optional accessory 5.1.2.1 Nitrogen filling function 5.1.2.2 Nitrogen container: 6000 liters. - Page 16 XtraVac CM360 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM360 Chamber Machine...
- Page 17 XtraVac CM360 Chamber Machine Operation and Parts Manual Xtra Vac360LR Description Part Number Description Part Number XVT462166 XVT466707 Foot pad PE pad XVT463016 XVT462167 Gland Fixing nut XVT467837 XVT466522 Upper lid Rubber pad XVT467839 Hex. Screw XVT467838 screw XVT468004 06-1 Hex.
- Page 18 XtraVac CM360 Chamber Machine Operation and Parts Manual XtraVac360LR Description Component No. Description Component No. XVT467851 XVT65823 70 Pump complete 110V Inner Hex. Screw XVT467852 XVT77387 Spring Pump complete 220V XVT467853 XVT70642 Hex. nut 110V Motor XVT464113 XVT69867 Limit switch...
- Page 19 XtraVac CM360 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM360 Chamber Machine...
