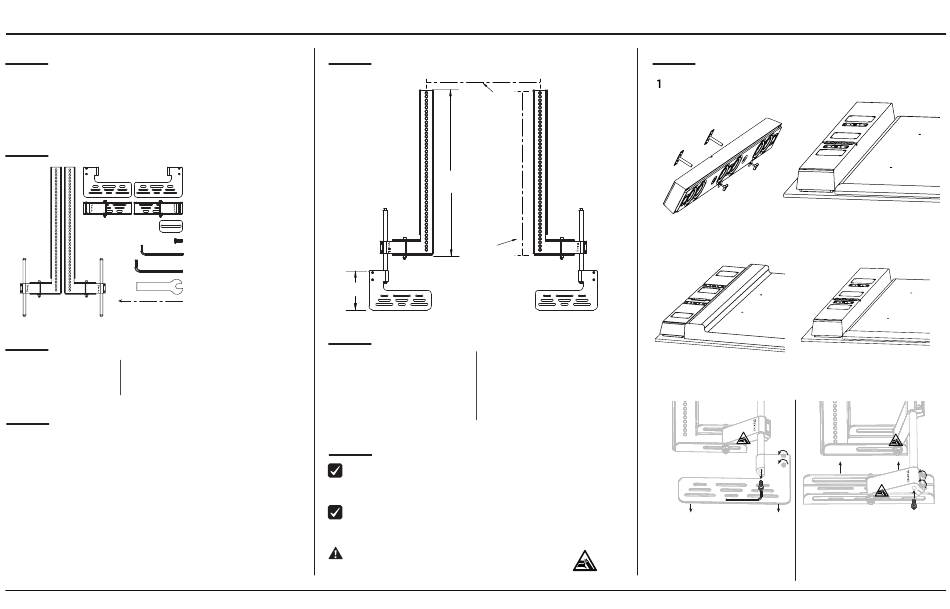

Triad TS-BKT-SBTV Installation Manual

TRIAD INSTALLATION GUIDE - SOUNDBAR TV BRACKET
INTRODUCTION
The Triad TS-BKT-SBTV Soundbar TV Bracket is designed to attach a Triad Micro
or Mini Soundbar to a flat-panel TV that is mounted to a wall with a VESA-
compliant articulating (full-motion) wall mount. The TS-BKT-SBTV allows the
soundbar to be positioned directly below the TV and move "as one" with the
movement of the TV. The TS-BKT-SBTV also allows for the soundbar to be
adjusted (forward, backward, left, and right) so that the front of the soundbar is
flush and in-line with the front edge of the flat-panel TV.
IN THE BOX
DEEP DEEP
SHALLOW SHALLOW
SUPPORTED MODELS
Model number Triad Soundbar TV Bracket, TS-BKT-SBTV
Supported soundbar models All full-size Triad Micro and Mini Soundbars
Supported TV mounts Most articulating (full-motion) UL-certified mounts
WARRANTY
Limited Hardware Warranty—Triad Speakers warrants its hardware product to be free
from defects in material and workmanship during the warranty period. If the hardware
proves to be defective in material or workmanship during the warranty period, Triad
Speakers will, at its sole option, repair or replace the product with a like product. The
warranty extends only to products purchased directly from Control4 Corporation or
an Authorized Control4 Dealer. For complete limited warranty information, including
details on purchaser legal rights as well as limited warranty exclusions, visit
http://triadspkrs.co/warranty.
Return Merchandise Authorization (RMA) information
For Sales RMAs contact your Inside Sales Associate. Your ISA information can be
found in the My Account section of the Dealer Portal under Control4 Contacts.
Technical Support information
Phone: 503-517-2668
Hours: 9:00 a.m. – 5:30 p.m. PST (Monday – Friday)
Email: service@triadspeakers.com
DIMENSIONS - Soundbar TV Bracket
Deep paddles (2, attached)
Shallow paddles (2)
Mounting shims (4)
1/4-20 x 0.75" screws (2)
9/64" Allen wrench
3/16" Allen wrench
7/16" open-end wrench
5 7/16"
[13.7 cm]

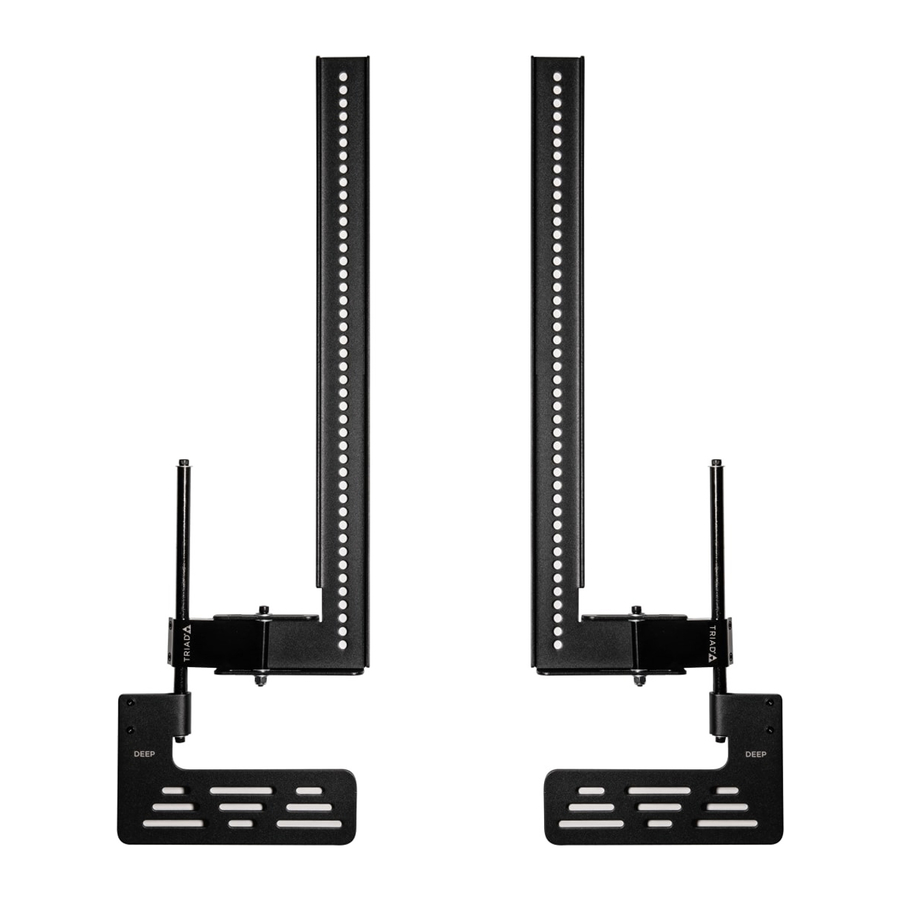

Soundbar bracket assemblies (2)
SPECIFICATIONS
NOTICE / CAUTIONS
Important: The TS-BKT-SBTV has been designed to hold and support the weight of
Triad's largest and heaviest soundbars. This bracket should only be used with
articulating TV wall mounts that have met a third-party safety certification
(example: UL Certified).
Important: The TS-BKT-SBTV physically attaches between the TV and the TV
wall-mount bracket. Carefully check the TV mount's manual for maximum weight
allowed / recommended. Add up the weights of all items: TV + Soundbar +
TS-BKT-SBTV and confirm before proceeding with the use of this bracket.
Warning! Pinch points—There are moving / hinged parts on the
TS-BKT-SBTV that can cause a pinch while installing. These will be
called out in this manual with the following indication:
VESA 200 - 600 mm
22 15/16"
[58.2 cm]
VESA 200 - 400 mm
DEEP
Supported VESA patterns 200 - 600 mm × 200 - 400 mm
Product weight 10 lb / 4.5 kg
Shipping weight 15 lb / 6.8 kg
Bracket material 3 mm P&O steel
Mounting shim dimensions 40 × 80 × 8 mm
INSTALLATION
Install the EZ Mount posts and
1
knobs supplied with the soundbar.
(If soundbar has 4 holes, use the
two center holes as shown.)
3
2
Decide if you need the deep paddles or the shallow paddles. The bracket is
shipped with the deep paddles installed.
DEEP
Shallow option: Soundbar is
thinner than thickest part of TV
4
Shallow only—Swap lower section of soundbar bracket over to shallow paddles.
a
c
a
Remove the nut on the end of the
bar using the provided wrench.
b
Loosen the nuts on the paddle if
needed.
c
Remove the deep paddle from the
rest of the bracket.
2
2 Lay TV and soundbar "face down"
on a protected work surface.
Deep option: Soundbar is thicker
than thickest part of TV
b
e
d
DEEP
f
d
Loosen the nuts on the shallow
paddle if needed.
e
Add the shallow paddle onto the
bar.
f
Secure the deep paddle by replace
the nut on the end of the bar and
tightening the nuts.
