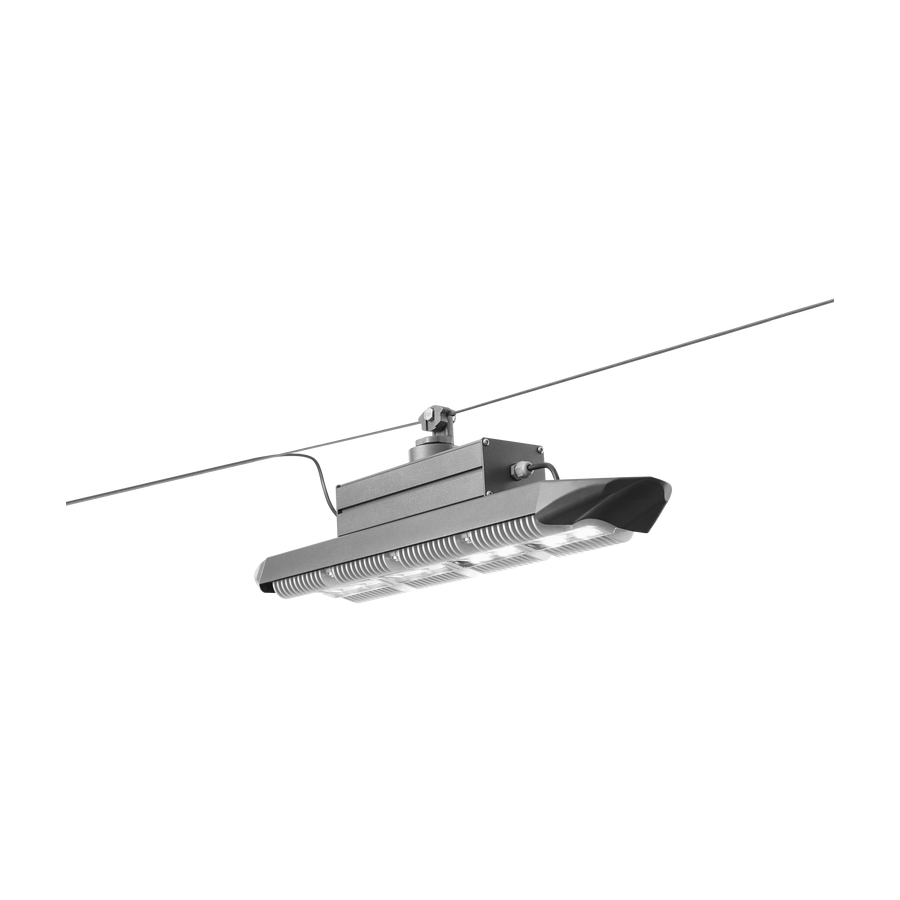

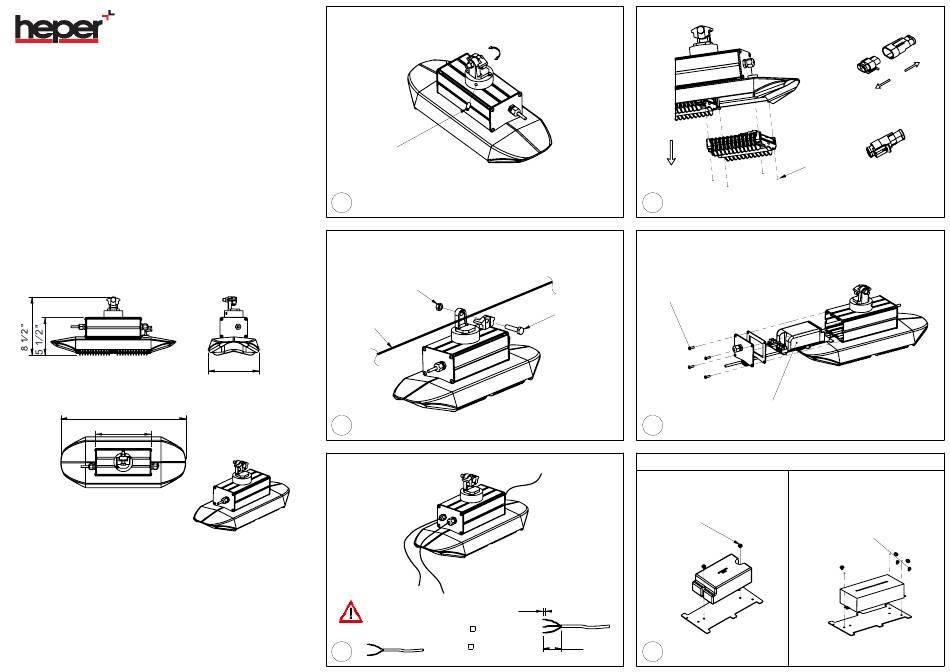

C-LIGHT
Installation and Maintenance Manual
18 1 ⁄ 2"
8 1 ⁄ 4"
M8
Fixing Screw
7,37 lb ft
1
M10 Nut
33 lb ft
Steel Rope
7 1 ⁄ 2"
2
Designates 1-10 V DIM connection.
3
M10 Hexagon Bolt
33 lb ft
1⁄4"
(1-10V) +
Brown
1 1⁄4"
(1-10V) -
White
4 x M4
Allen Screw
1,84 lb ft
4
4 x M5 Allen Screw
4 lb ft
Control Gear
5
Control Gear
2 x M5
Cross-slotted bolts 4 lb ft
6
4.1
4.2
3 x M5
Cross-slotted bolts
4 lb ft
