Telepro ISP-24 Inspection & Site Testing Procedure For Commissioning

Inspection &Site testing Procedure for Commissioning
Dear Customer,

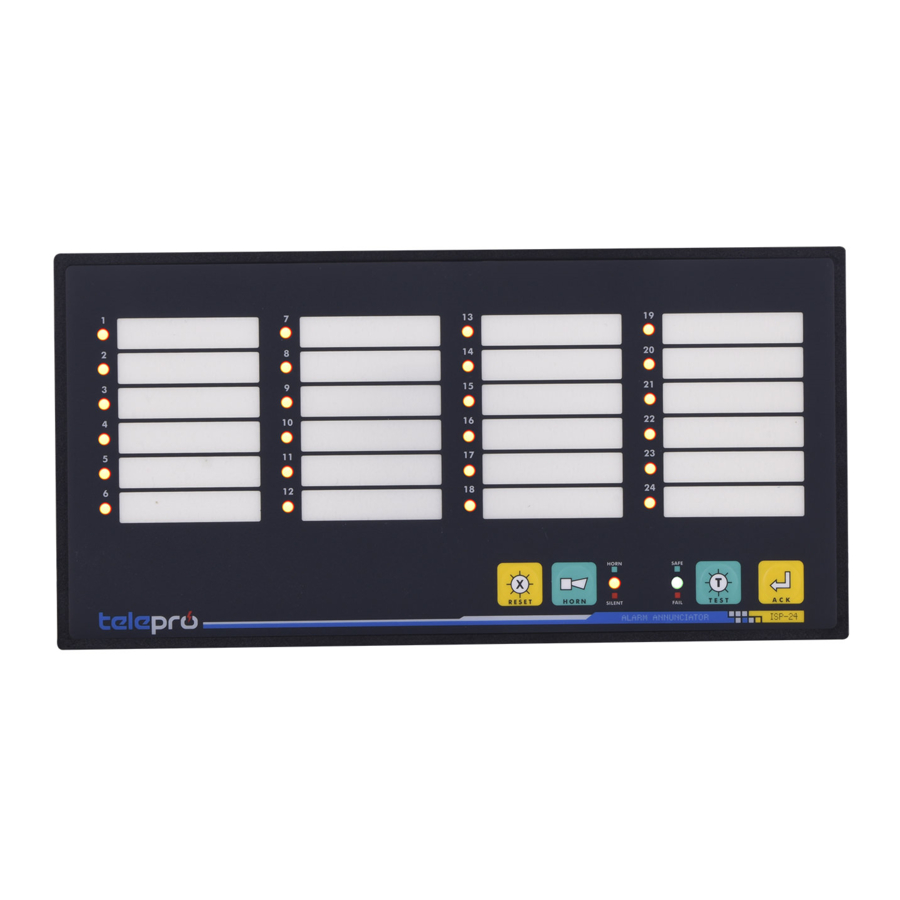

ISP Alarm Annunciator has been manufactured by TELEPRO ENERGY in Turkey.All functional tests of device that you
purchased are verified by our technical department. ISP Alarm Annunciator has 2 years warranty against manufacturing
faults.Before performing any electrical connection ,PLEASE Check the ISP Typical wiring at the back page.
Have a good work.
Your respectfully,
Contens of product package
1 Pc. ISP Alarm Annunciator
1 Pc. Front panel frame
4 Pcs. Connection terminal-8 input
1 Pcs. Connection terminal-10 input
1 Pc. Connection terminal-3 input
4 Pcs. Board connection equipment to be used for two side fixation.
Configuration;
I-UnPlug "A" terminal, "B" terminal,"C"terminal and "D"terminal
II- Plug in "K" terminal (Supply and relay output)
III- After Pluged "K" ternimal, ISP runs startup self test procedure
IV- Selft test steps are as follows;
a- In the first step;
All leds are solid and Internal buzzer turns on,
"Safe/Fail" led blinks green in 4Hz
b- In the second step;
Input channel leds and buzzer turn off
V- In order to enter config mode ; Press "Test Button" and "Horn buton" together for 3 sec.
VI- After 3 sec.
a- First input channel led blinks in 4Hz
b- Other input channels leds are off
c- "Horn/Silent" led turns off and "Safe/Fail" led blinks green in 4Hz
VII- Press "Horn Button" to setup alarm output type (Horn or Bell ) for input channel 1 while this led blinks red in this
step. When pressing "Horn Button", colour of channel 1 led changes to blinking green. (Blinking Red means Horn Output
/ Blinking green means Bell Output)
VIII- Press "Test Button" to skip to the next input channel. When pressing "test buton", next channel led blinks red.
IX- Press "Ack Button" to save input channel settings or Press "Reset Button" to cancel configuration settings. When
pressing "Ack Button", ISP will save your configuration and restart itself.
! If any button is not pressed for 60 sec in config mode, then ISP returns to the latest working Process Mode

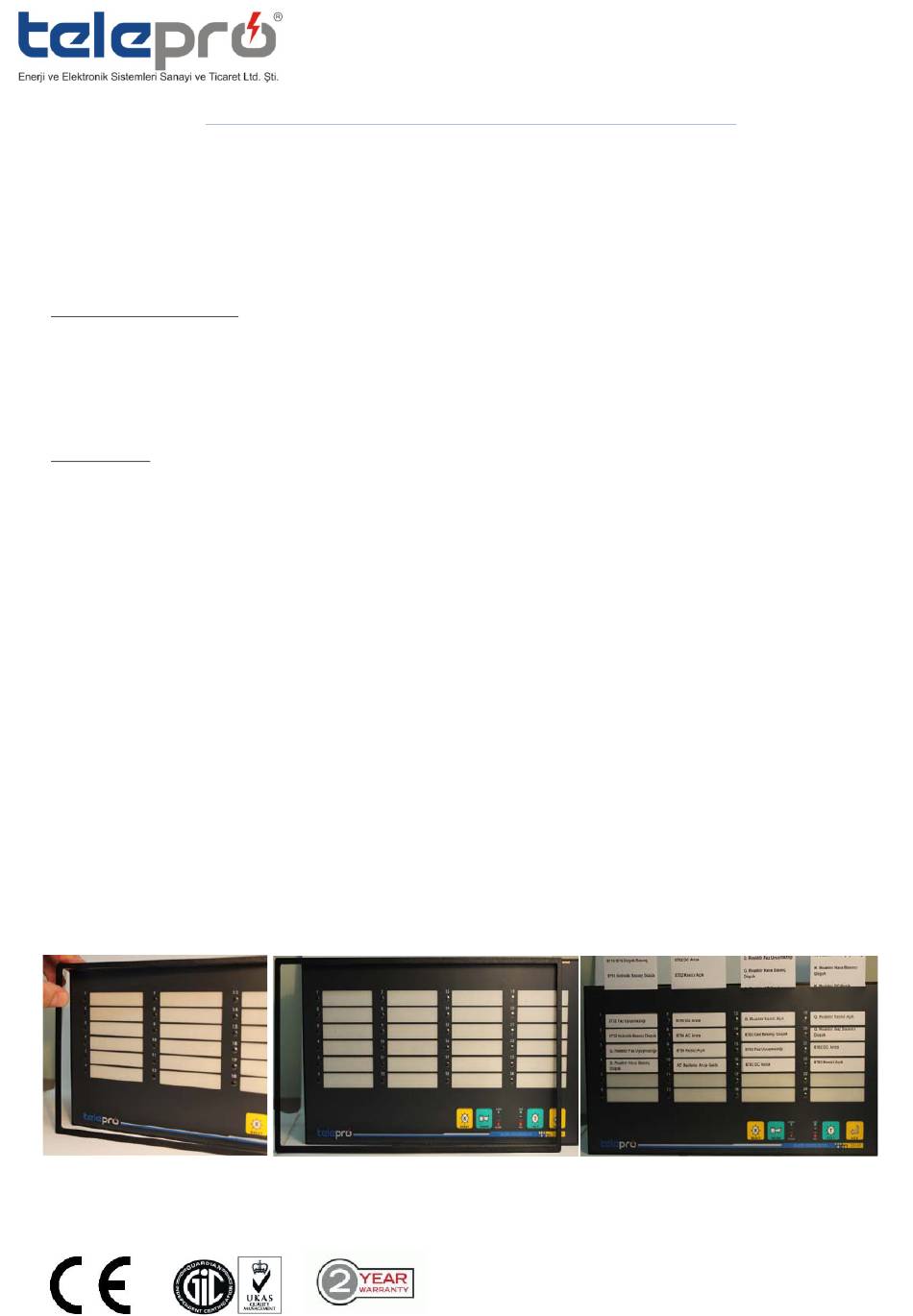

Picture1-Gently hold and
unlock front panel frame at one
side as shown
_______________________________________________________________________________________________________________
ISP-24 Alarm Annunciator
Picture2-Remove front panel frame from
the unit
Ferhatpaşa Mah. 99.Sok. No:46/5 ATAŞEHİR – İSTANBUL / TURKEY
Picture3-Insert tag label into slots as seen
below
