GENI PREMIUMa User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
α
PREMIUM
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREMIUMa and is the answer not in the manual?

Questions and answers

Summary of Contents for GENI PREMIUMa

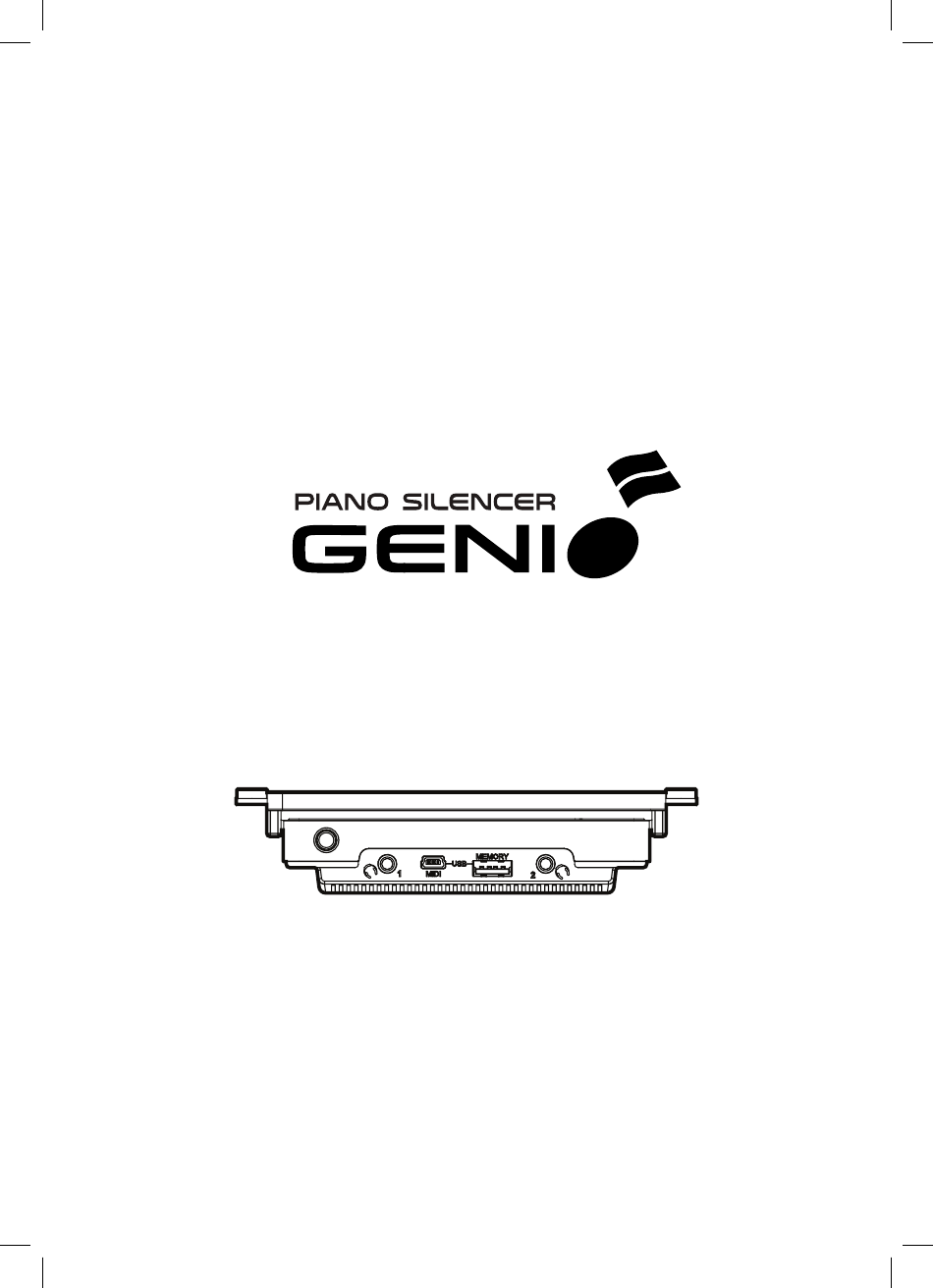

  • Page 1 α PREMIUM User’s Manual...

  • Page 2: Important Safety And Installation Instructions

    Important Safety and Installation Instructions Information related to the possible electric shock, fire hazard and personal injury has been included in this list. Please read the contents carefully and use the product safely. 1. Be well-acquainted with this user’s manual before using the product. 2.

  • Page 3: Table Of Contents

    α GENIO PREMIUM After the installation of GENIO PREMIUM α , while you keep the acoustic piano functions, and it becomes a new concept piano which enables you to play the piano without external sound and enjoy your own piano playing, it has multi functions of acoustic, silent and digital piano. You can select various sounds with various types of music in anytime, anyplace.

  • Page 4: Connection Diagram Of Genio Premium Α

    α Connection Diagram of GENIO PREMIUM Upright Piano Piano Keyboard Sensor Keyboard Sensor Power White Black Control Unit Headphones AC 100~240V Soft Damper/Sustain Grand Piano GRAND MODULE GRAND MOTOR Motor Motor MOTOR POWER KEYBOARD MainUnit Piano Keyboard Sensor Key Sensor Control Keyboard Sensor Power...

  • Page 5: Name & Function Of Each Part

    Name & Function of each part CONTROL UNIT Top View ① ② DISPLAY: Shows the selected mode and value. ① TOUCH BUTTONS ② FUNC. METRO. EFFECT SOUND Function Metronome Effect selection Sound selection START / STOP VOLUME / DATA RECORD For recording, Volume control / Data selection Record...
  • Page 6 CONTROL UNIT Front View POWER BUTTON ① Turns the system on and off HEADPHONES ② 2 headphones are available USB PORT ③ Connect with computer (Device : USB MIDI) USB HOST : ④ USB Stick terminal ① ② ③ ④ ②...

  • Page 7: Originating Information

    Originating information Make sure your power supply complies with the details listed on the accompanying power supply(12V DC plug). Ready to use After installation, the system should be optimized to be used by the initializing process (Page 16), and it can be used with adequate connection of power supply. α...

  • Page 8: How To Try Out Various Functions

    How to try out various Functions α You can enjoy GENIO PREMIUM as a digital piano with various sounds and effects, and also as a sound module with GM sounds contained. A. Sound select You can select one of 17 Preset sound,16 Userset sound and 128 GM Sound. * Preset sound can be changed only by the manufacturer(Users are not allowed to change it).
  • Page 9 Preset sounds Preset Preset Piano 1 Sound Track Piano 2 Strings E. Piano 1 Pan Flute E. Piano 2 Pipe Organ E. Piano 3 Church Organ Vibraphone Organ 3 Celesta Tubular Bell Tinkle Bell Drum Harpsichord Userset sounds Preset Preset Accordion Clarinet Nylon Guitar...
  • Page 10 B. How to edit Userset sound α The GENIO PREMIUM contains editable Userset sound. Each sound has 16 channels and each channel has 21 parameters. Change the parameter according to the list (Page 13) and you can get the desired sound and function. 1) Press [RECORD]+[SOUND] buttons together from the Home mode to get into edit mode.
  • Page 11 Global Parameter Global parameter is effective to all channels as under listed parameter. (Page 13) α GENIO PREMIUM Global Parameter Velocity Curve/Pitch/Reverb Type/Chorus Type/Cutoff Frequency/ Resonance/Name : The sounds of entire channels output during Global Parameter adjustment. C. How to change the name of Userset sounds 1) Press either [EFFECT] or [SOUND] button to find the name parameter USERSET EDIT USERSET EDIT...
  • Page 12 Return to Home mode after memorizing names and edited contents 1) Press [RECORD] button to memorize and return to home mode. 2) Press [ ] or [ ] button to select a Userset Number. Then press [RECORD] button for the selected ▼...
  • Page 13 D. Description of the Parameter of the User’s Edit mode Parameter Range Description of the parameter α The GENIO PREMIUM contains 128GM compatible sounds Program 000-127 which can be selected for each channel. Instrument Press either [ ] Value or [ ] button to select the sounds required ▼...
  • Page 14 Parameter Range Description of the parameter Smart Pedal is an unique function that we have invented for when Smart Pedal On/Off α a user plays GENIO PREMIUM set with organ sound. If user sets the smart pedal function to be a organ, then even such kind poor pedaling, organ sound will not be mixed up with former played chord.

  • Page 15: How To Use The Functions By The Keys

    How to use the functions by the keys Due to the limited button numbers, in order to use the various functions, press the key like below, while pressing and holding the [FUNC.] BUTTON, and then you can use various sounds, effects and transpose.
  • Page 16 & A B C D E F G H K L M N O P R S T U V W X Y Z P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 U1 U2 U3 U4 U5 U6 U7 U8 U9 C.
  • Page 17 & * < > < > v w x U10 U11 U12 U13 U14 U15 U16 D. Reverb, Chorus (Effects) 1) While pressing and holding the [FUNC.] BUTTON, press the below keys for selecting desired chorus and reverb type, and adjusting the depth of both types. Function Control Range Reverb Down...

  • Page 18: Metronome

    Metronome Using the built-in metronome function, you can practice with correct tempo and beat. 1) Metronome operation Press [METRO.] button to start or stop the metronome operation. METRONOME HOME * Tempo : 120 Preset Sound Beat : 4/4 P1 : Piano 1 Volume : 5 METRONOME HOME...
  • Page 19 Tempo It shows the speed of the beat in 1 minute. * Control range : 20 ~ 250 * Press both [▼] and [▲] buttons together, then tempo will set to default value 120. METRONOME METRONOME → * Tempo : 120 * Tempo : 120 Beat : 4/4...

  • Page 20: Effect

    Effect The GENIO PREMIU α can control the sound with various parameters. * Turn off and on the power to start from the default mode. HOME Preset Sound P1 : Piano 1 1) Press [EFFECT] button to move to effect setting mode. Then you can see ‘Reverb’ Letters on the screen.

  • Page 21: Record And Playback

    Record and Playback Your GENIO PREMIU α has Four built-in tracks for record and playback. After recording the first track, you can record the second track with the first track playing back. A. Record 1) Press [Record] button to get into record mode. RECORD RECORD →...
  • Page 22 B. Playback (USB Memory is not connected). 1) Press [START/STOP] button to get into Playback mode. PLAY PLAY 00:12 → ▶ □ □ □ ▶ □ □ □ Empty PLAY Stop Play 2) Press either [ ] or [ ] button to select the track. ▼...
  • Page 23 D. Using USB Memory Except Record & Play mode, then USB Memory is connected, you can select one among the following three processes. 1) Press [RECORD] button to copy the recorded song in the control unit. 2) Press [START/STOP] button to play the song saved in the USB Memory. 3) Press [SOUND] button to return to Home mode.

  • Page 24: Education Mode For Practice

    Education Mode for Practice GENIO PREMIU α has built-in 106 Bayer songs, 30 Czerny songs, 80 Sonatina songs for left, right hand or accompaniment. Please refer to the attached song lists. (Page 30) 1) Press [SOUND]+[START/STOP] buttons together to get into the Education mode. PRACTICE PRACTICE →...

  • Page 25: Initializing Of Genio Premium Α

    α Initializing GENIO PREMIUM α GENIO PREMIUM enables you to hear your own sound during the piano muting. The signals generated by actinography from the sensors underneath the keys convert into MIDI signals which are needed for generating the piano sound by control unit’s program. Since GENIO α...

  • Page 26: Pedal Positioning

    Pedal Positioning Pedal effect timing is automatically set during the initializing process, but the pedal depth timing can be adjusted from the System Setting Menu by the program, not by height adjustment of the pedal sensors. A. Pedal positioning Adjustment 1) Press [FUNC.] and [SOUND] button simultaneously.

  • Page 27: How To Adjust The Sensitivity Of Individual Keys

    How to adjust the sensitivity of individual keys The initialization procedure on the previous page should make all of the keys equally sensitive. If you find that some keys still play too loudly or softly, use the following procedure to adjust the sensitivity of individual key.
  • Page 28 Connecting with External Audio Equipment This product has audio input and output sockets, so it is possible to amplify the sound to the external audio device or to play the piano listening external audio performance. Please use with connecting the right audio cable and do not exceed the input and output ranges with correct nature A.

  • Page 29: Connecting With External Audio Equipment

    Please refer to the MIDI Implementation Chart for the Control Command of connection parameters with external MIDI device. The sound of playing this product can be played back from the other MIDI device or saved in computer using MIDI program. GM, Patch, volume or sound can be different from each manufacturer, the composed music with the other sound source can have different feeling.

  • Page 30: Gm Program Chart

    GM Program Chart Piano Chromatic Percussion 000 Piano 1 004 E.Piano 1 008 Celesta 012 Marimba 001 Piano 2 009 Glockenspiel 005 E.Piano 2 013 Xylophone 002 Piano 3 006 Harpsichord 010 Music Box 014 Tubular-bells 003 Piano 4 011 Vibraphon 007 Clavinet 015 Dulcimer Organ...

  • Page 31: 216 Education Songs (With Sonatina 80 Songs For Demo)

    216 Education Songs (Inclusive sonatina 80 songs for Demo) Beyer Op.101, No.1 ~ Op.101, No.106 / Total 106 songs Czerny Op.849, No.1 ~ Op.849, No.30 / Total 30 songs Sonatina 80 songs Sonatina List So1 Attwood, Thomas - Sonatina in G 1st movement So41 Gurlitt, Cornelius - Sonatina, Op.36, No.6 3rd movement So2 Attwood, Thomas - Sonatina in G 2nd movement So42 Haslinger, Tobias - Sonatina in C 1st movement...

  • Page 32: Drum Chart

    Drum Chart Standard Set Standard Set...

  • Page 33: Midi Implementation Chart

    MIDI Implementation Chart Function Transmitted Received Remark 1 ~ 16 MIDI Channels 1 ~ 16 Mode Note Number 21 ~ 108 0 ~ 127 Velocity 0 ~ 127 0 ~ 127 Note On 9n, V = 1 ~ 127 9n, V = 1 ~ 127 Note Off 9n, V = 0 8n, V = 0 ~ 127...

  • Page 34: Chart For User-Set Editing

    Chart for User-set Editing Channel Parameter Global Parameter...

  • Page 35: Specifications

    Specifications Item Description Silent Mechanism Universal Mute Rail by Manual Lever Sensor Keyboard Reflector Type Touchless Optic Sensor System Velocity 127 Level Touch Response 5 Curves Sensitivity of each Keys Individual Adjustment Range from 000 to 256 Sensor Pedal Sustain, Soft (Grand : + Sostenuto) Sounds 17 Pre-Set + 16 User-Set, 128 GM Sounds Sounds Memory...

  • Page 36: Trouble Shooting

    Trouble Shooting Phenomenon Possible cause and Trouble shooting • Check if AC plug is connected correctly with the outlet. No Power • Check if DC jack is connected correctly with the control unit. • If metronome works well with the sound, check the connection of key sensors and control unit.
