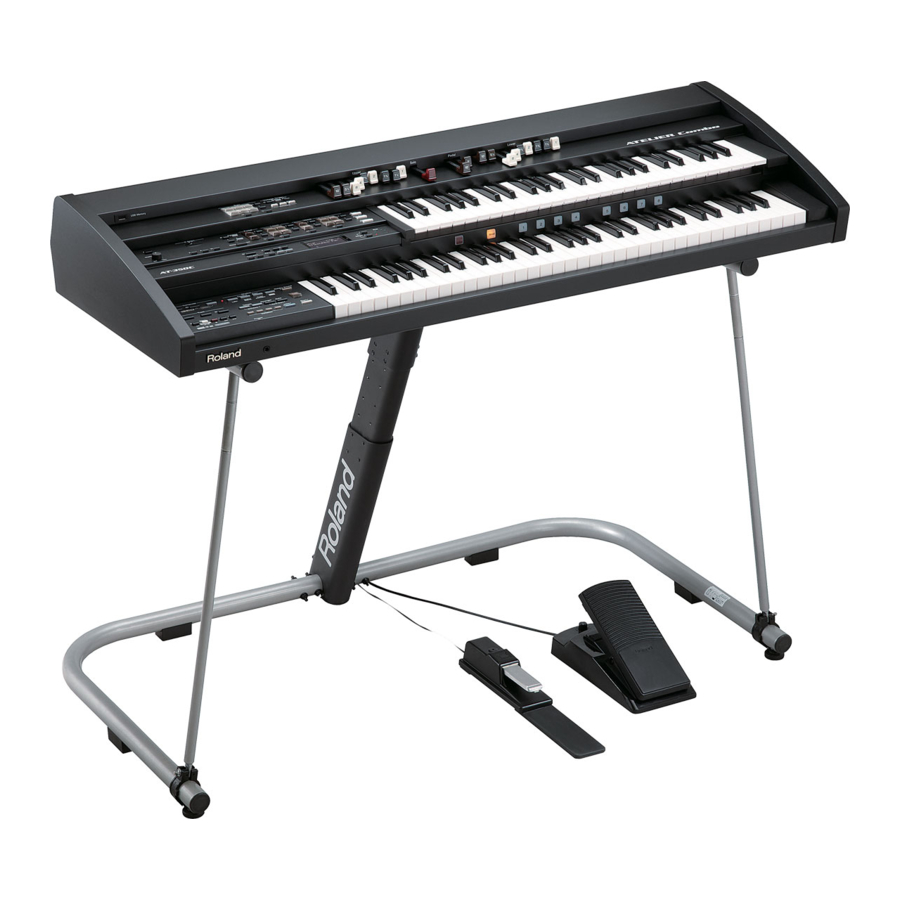

Roland ATELIER COMBO AT-350C Supplementary Manual

Hide thumbs Also See for ATELIER COMBO AT-350C:

Advertisement

Quick Links

Download this manual
Version 2 Supplementary Manual

Advertisement

loading

Related Manuals for Roland ATELIER COMBO AT-350C

Summary of Contents for Roland ATELIER COMBO AT-350C

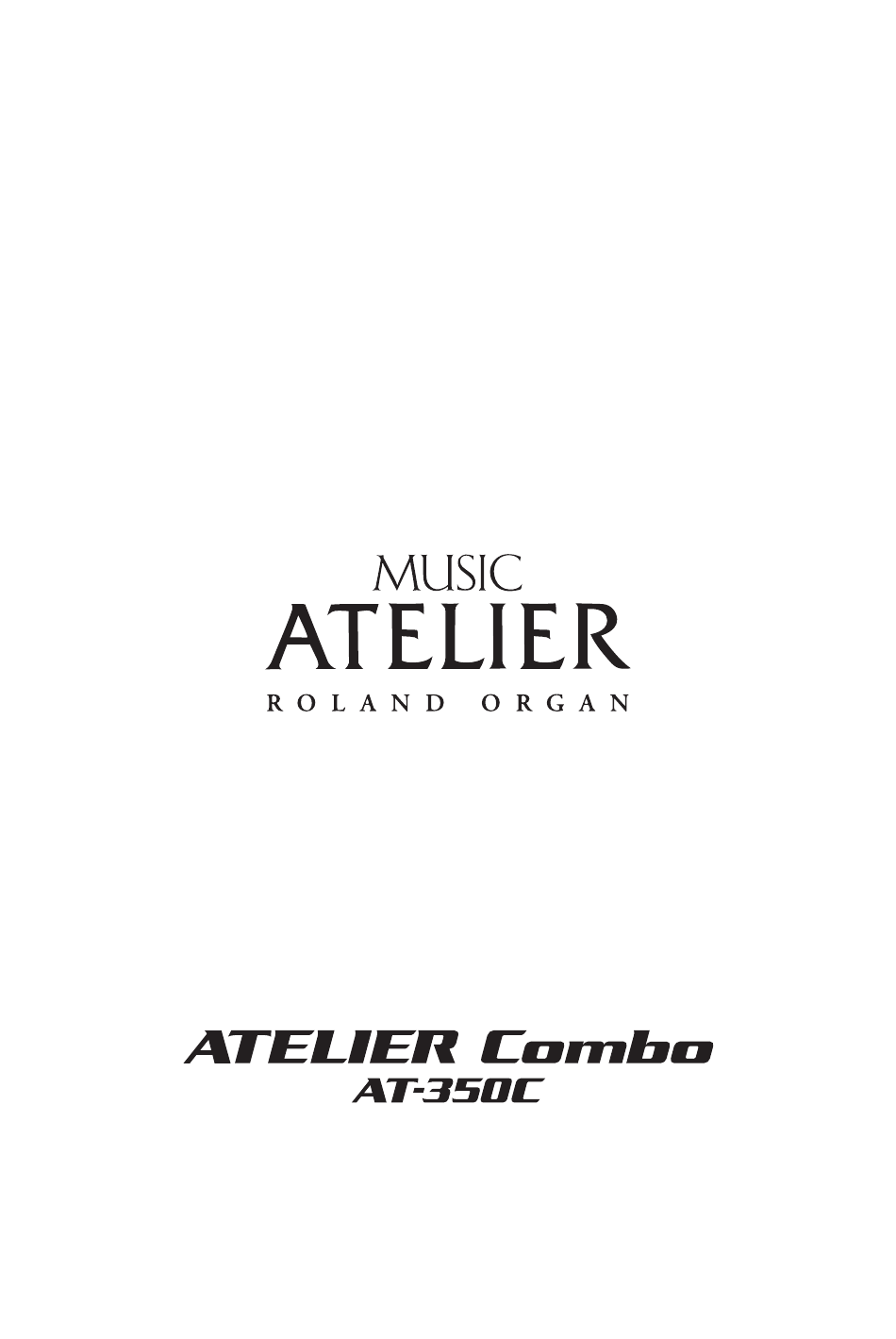

  • Page 1 Version 2 Supplementary Manual...

  • Page 3: About This Manual

    Introduction About this Manual This document (Version 2 Supplementary Manual) explains functions that have been added to the AT-350C, and changes (improvements) that have been made in the functions and operations described in the “Owner’s Manual. ” * Please refer to the “AT-350C Owner’s Manual” for an explanation of everything other than the newly added items covered here. New Functions Explained in This Manual Vintage organ (p.
  • Page 4 Using the New Functions Creating a Vintage Organ Sound You can create your own personalized organ sound by changing the type of organ or the settings of the rotary effect. Use■the■harmonic■bars■to■create■the■desired■organ■sound. Press■the■[Utility]■button. Press■the■Value■[-]■[+]■buttons■to■select■“Organ.” Press■the■Menu■[ ]■button. Press■the■Menu■[ ]■[ ]■buttons■to■select■the■parameter■that■you■want■to■edit. * If you want to edit the settings for the rotary effect, choose “Rotary” and then press the [Utility] button. Press■the■Value■[-]■[+]■buttons■to■change■the■value■of■the■setting.
  • Page 5 Using the New Functions Switching the D-BEAM Function We have added more functions and sound effects that can be controlled by the D-BEAM controller. Turning on/off functions and effects that have been added Simultaneously■press■the■D-BEAM■[Pitch]■and■[Volume]■buttons■so■that■the■[Pitch]■[Filter]■[Volume]■buttons■are■all■lit■orange. D-BEAM Assign is now on. Press■the■D-BEAM■[Pitch],■[Filter],■or■[Volume]■button,■so■its■indicator■goes■out. D-BEAM Assign is now off.
  • Page 6 Using the New Functions SuperNATURAL Voices In the following SuperNATURAL voices, the foot switch effect has been changed to an effect that is more suitable for the distinctive behavior of that specific instrument. Foot■switch■effect Voice■name Characteristics N.CONTROL■1 N.CONTROL■2 This is a realistic flute voice that includes the sound of the air that escapes when the instrument N.Flute Staccato Growl...

  • Page 7: Selecting A Voice

    Using the New Functions Selecting the Part Controlled by N.CONTROL 1/2 If N.CONTROL 1 or N.CONTROL 2 is assigned to the foot switch, you can specify the part(s) to which the effect will be applied. Press■the■[Utility]■button. Press■the■Value■[-]■[+]■buttons■to■select■“Controller.” Press■the■Menu■[ ]■button■to■move■to■the■category. Press■the■Menu■[ ]■[ ]■buttons■to■select■“N.Control.”...
  • Page 8 Using the New Functions Basic Operations in the Utility Screen Parameters are now organized by category, making it easier to select the parameter that you want to edit. Press■the■[Utility]■button. Use■the■Value■[-]■[+]■buttons■to■select■the■category. * With parameters for which “Press [Utility]” appears, press the [Utility] button to access detailed parameter settings.
  • Page 9 Using the New Functions Selecting the Keyboard Affected by Switching Between New Drum Sets the Damper Pedal (Damper Pedal) and Old Drum Sets (Drum Set Mode) You can specify which keyboard will be affected when you press the For rhythms that use “Pop” or “Rock” as the drum set, the Drum Set Damper (Sustain) pedal.
  • Page 10 Using the New Functions Assigning the SHIFT+LOAD NEXT Function to Using Aux Out for Monitor Speakers the [Manual] Button (Manual Button Assign) (Aux Out Mode) “SHIFT+LOAD NEXT” has been added to the functions that you can Now you can specify that the Aux Out jacks will output the same assign to the [Manual] button.

  • Page 11: Voice List

    Voice List Organ Strings Piano Brass/Sax Full Organ1 Strings1 NaturalPiano BrassSect.1 Full Organ2 Strings2 Grand Piano Orch.Tutti 1 Full Organ3 Strings3 Bright Piano Orch.Brs Ens Full Organ4 Strings5 Piano3 Power Brass Full Organ5 Orch.Str.Ens AEx PianoStr AEx Brass Full Organ6 DolceQuartet Honky-tonk Tp Section...
  • Page 12 Voice List Lead/Pad Percussion SuperNATURAL N.Violin Big Lead Timpani N.Cello MalletCymRol OSC SyncLd 1 N.Er Hu Crash Cymbal Dig-n-Duke N.NylonStrGt Ride Cymbal JP SuperSaw N.FlamencoGt Snare Drum SuperSawSlow N.Trumpet Bass Drum CC Solo N.Trombone Taiko Synth. Lead1 N.Alto Sax Small Taiko Synth.
  • Page 13 List of Added Rhythms Jazz Pop/Rock Ballad Latin S.Swing S.8-Beat S.Ballad S.Bossa■Nova S.16-Beat S.Samba S.Rock S.Funk S.Shuffle S.Triplet For the rhythms marked with *1 and *2, you can change the drum set. Refer to “Drum Set Mode” (p. 9) *1: Pop Set *2: Rock Set...

  • Page 14: Stored Items

    Stored Items Settings that are stored after the power is turned off Drum Set Mode Aux Out Mode Settings that are stored in the registration set Manual Button Assign Drum Set Mode Settings that are stored in the individual registration buttons Organ Type Leakage Level Percussion Level...
