Description
Application environment: indoor, outdoor

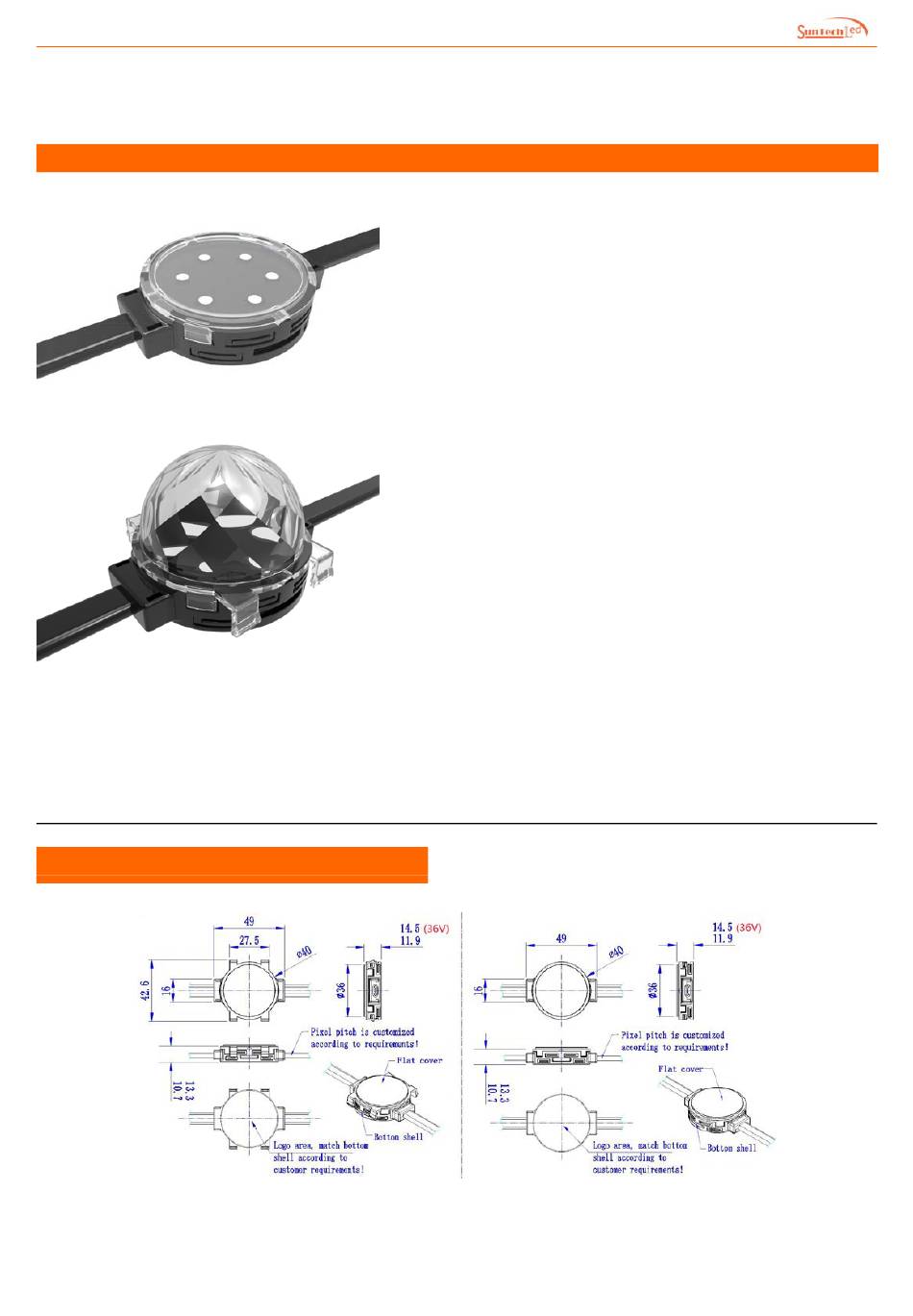

Measurement (Unit:mm)
1、Flat cover measurement
Frame installation with flat cover measurement
040 Pixel light
for outdoor landscape lighting. It adopts engineering grade
flame-retardant plastic PC shell, which is sealed and waterproof by
high thermal conductivity and weather-resistant PU glue; the lamp
point is small in size and exquisite in appearance; the light string is
connected by the national standard flexible cable, which can be bent
and deformed at will, and supports the installation of special-shaped
façade; The product spacing and color can be customized; it is
suitable for large-area display or lighting of building facades, bridges
and skylights.
★New generation dual channel real-time backup control protocol
★Standard DMX512 Control Protocol
★Industry-leading wireless button-type anti-smash connection design
★High thermal conductivity glue full potting waterproof design
★Outdoor lightning protection and Electrostatic (ESD)special protection
★Flexible, flexible application, multiple mounting methods
★Steel cable installation light transmittance up to 90%
★Support RGB/W current separately adjustable (low light and high gray)
wwww.suntechleds.com
The 040 pixel light is a low power LED string product designed
Features：
design
Base installation with flat cover measurement
sales@suntechleds.com
Advertisement
Summary of Contents for SunTech 040 Pixel light
- Page 1 Focus on customized architectural lighting 040 Pixel light Description The 040 pixel light is a low power LED string product designed for outdoor landscape lighting. It adopts engineering grade flame-retardant plastic PC shell, which is sealed and waterproof by high thermal conductivity and weather-resistant PU glue; the lamp point is small in size and exquisite in appearance;...
- Page 2 Focus on customized architectural lighting 2、Standard ball cover measurement Frame installation with standard Base installation with standard ball cover measurement ball cover measurement 3、Diamond ball cover measurement Frame installation with diamond Base installation with diamond ball cover measurement ball cover measurement wwww.suntechleds.com sales@suntechleds.com...
-
Page 3: Technical Parameters
Focus on customized architectural lighting Technical Parameters: Basic parameters Color/gray RGB/W each 4096 grayscale; RGB/W each 65536 grayscale; RGB/W each 256 grayscale Light source 3535 / 5050 / 2835 LED quantities 3pcs / 4pcs / 6pcs / 9pcs Material Flame retardant PC Cover material Flame retardant PC Lifespan... - Page 4 Focus on customized architectural lighting Dual channel CA040-06AU 6 PCS 3535 RGB/W 1.44W 15cd CA040-06AU-2 6 PCS 3535 RGB/W Dual channel 1.7W 15cd CA040-06AE 6 PCS 3535 RGB/W DMX512 1.44W 15cd CA040-06AE-2 6 PCS 3535 RGB/W DMX512 1.7W 15cd CA040-06XT 6 PCS 5050 RGBW...
- Page 5 Focus on customized architectural lighting PC single base installation method 1: ③installation is completed: ②pixel light installation: ①PC installation base installation: Schematic diagram after After the PC mounting base Use a suitable self-tapping screw to installation is complete. is firmly installed, the point secure the PC mounting base to the light source is stuck into the desired position, with the spacing...
- Page 6 Focus on customized architectural lighting Frame installation method 1 : ①installation carrier drilling: ②Install the expansion screw: Drill a hole in the position where the Use a suitable expansion screw to carrier is required to be drilled by knock the expansion screw into the hole selecting a suitable drill bit;...
- Page 7 Focus on customized architectural lighting Frame installation method 2: ② Install the carrier with expansion ① installation carrier drilling: Make a mark on the mounting carrier rubber plug: according to the hole position on the Knock the expansion rubber plug into the mounting profile, and drill the hole on drilled hole of the carrier with a hammer the carrier with a suitable drill bit;...
-
Page 8: System Connection
Focus on customized architectural lighting System connection 1、 The main controller is equipped with sub-controller and signal adaptor. The main control and sub-control working voltage is AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light. - Page 9 Focus on customized architectural lighting Notes: Please read the installation manual carefully before using the product. The product is handled gently and gently to avoid damage to the product. Installation, maintenance and maintenance must be handled by professionals; The external power supply must be cut off during wiring to prevent people from getting an electric shock or damaging the lamp;...
Need help?
Do you have a question about the 040 Pixel light and is the answer not in the manual?
Questions and answers
