Summary of Contents for Iddero DW-GSM

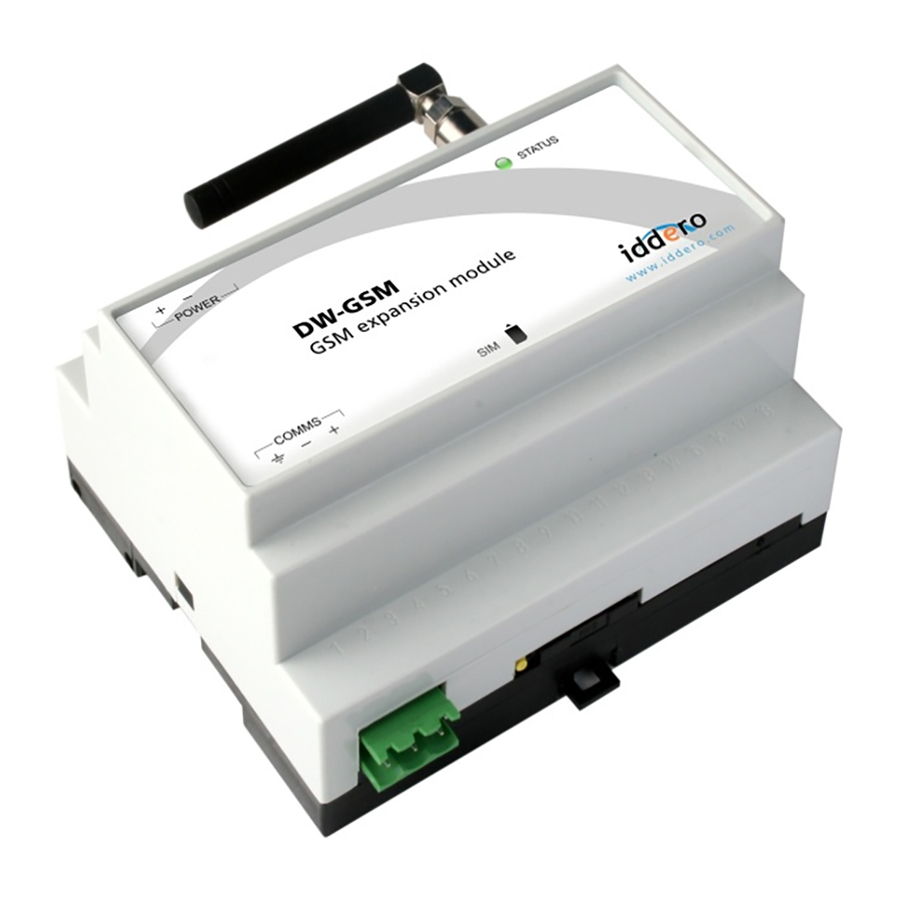

- Page 1 DW-GSM EXPANSION MODULE User Guide www.iddero.com 131212-02...
-
Page 2: Table Of Contents
APPENDIX II: TROUBLESHOOTING ....................13 © 2013 All Rights reserved. Iddero is a registered trademark of INGELABS, S.L. All other registered trademarks and trade names used in this document are the property of their respective owners. Other product and/or company names used in this document may be protected by copyrights, trademarks, or patents. -
Page 3: Introduction
KNX-based installation from any GSM terminal, providing functions such as notification of technical alarms and incidents, or remote control of devices connected to the KNX bus. This manual provides instructions for the configuration and use of the DW-GSM module in conjunction with Iddero touch panels. -
Page 4: Triggering Actions With "Missed Calls
When an event associated with a notification occurs, the system automatically sends a SMS message to all phone numbers registered and enabled for notifications. The notification message contains a configurable text, or a generic text (notification_name = value) if no text has been explicitly configured. www.iddero.com DW-GSM EXPANSION MODULE – User Guide... -
Page 5: Status Requests
You can manage the list of authorized phone numbers and adjust other GSM module settings from the touch panel itself. For this, go to the Settings page, then press the “GSM module” button. www.iddero.com DW-GSM EXPANSION MODULE – User Guide... - Page 6 Notif.: Notification messages should be sent to this user when the corresponding events occur. Call: Allow this user to execute the action associated with the “missed call” function. Otherwise, any voice calls from this phone number are ignored. www.iddero.com DW-GSM EXPANSION MODULE – User Guide...
- Page 7 If there is a problem with the GSM module, an error icon is shown in the status bar. Press the “Status” button in the GSM module settings page to get additional information about the problem. www.iddero.com DW-GSM EXPANSION MODULE – User Guide...
-
Page 8: Parametrization
PARAMETRIZATION General parameters Configuration of the GSM module is done through the Iddero configuration software, in the “GSM module” section of the project tree. Make sure you are using a recent release (1.3 or later) of both the configuration software and the touch panel’s firmware. -
Page 9: Actions
Default write value: Default value that will be written to the communication object if a SMS message is received for this action without explicitly specifying a value, or if this action is executed via the “missed call” function. www.iddero.com DW-GSM EXPANSION MODULE – User Guide... -
Page 10: Notifications
Notification trigger: Specifies when the notifications should be sent: a) When the value of the communication object changes b) Each time the communication object is written (regardless of whether this result in a value change) www.iddero.com DW-GSM EXPANSION MODULE – User Guide... - Page 11 Scenes No special configuration is required in order to support remote activation of scenes. www.iddero.com DW-GSM EXPANSION MODULE – User Guide...
-
Page 12: Appendix I: Sms Message Format Summary
Response to a status request notification_name = value Notification messages notification_text Notification message, when the “notification text” parameter is defined Notification message, when the “notification text” parameter notification_name = value is not defined www.iddero.com DW-GSM EXPANSION MODULE – User Guide... -
Page 13: Appendix Ii: Troubleshooting
APPENDIX II: TROUBLESHOOTING Please check the datasheet of the DW-GSM module for installation and handling instructions. If the unit does not work properly, please check if the problem is described in the following list of common problems. If this does not help, please contact your authorized distributor.
