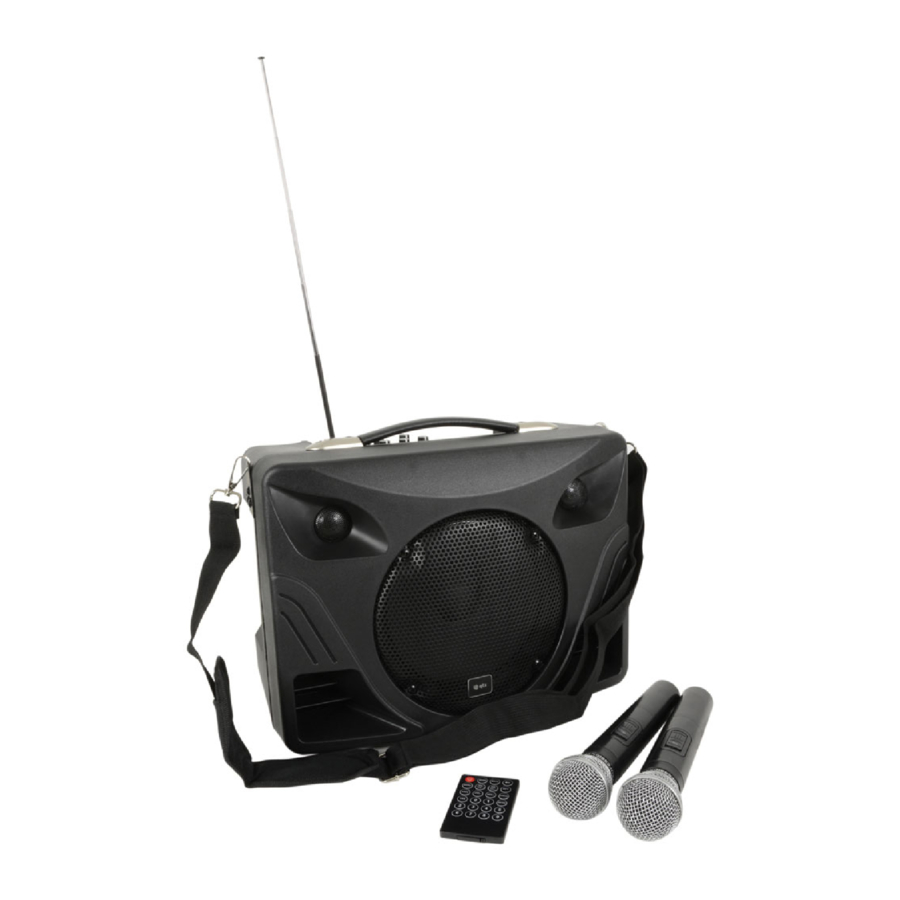

- Page 1 DELTA-200 Performance PA with Bluetooth ® Item ref: 178.812UK User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing the DELTA-200 performance PA unit. Please read this manual prior to use to gain the best from your product and to avoid damage through misuse. • Internal 12V rechargeable battery • 2 x UHF handheld microphones included •...
- Page 3 Top panel Media player USB port Instrument 1+2 echo EFFECT level Media player playback controls Instrument 1+2 VOLUME Media player SD card slot AUX IN 3.5mm jack input Media player LCD display TALKOVER VCV Voice Controlled Volume switch Audio recorder USB port and record button L+R RCA LINE IN Media player TREBLE EQ KEYBOARD / DRUMKIT 6.3mm jack input...
- Page 4 Operation Your new DELTA-200 portable PA unit may arrive with you with the internal battery charged. Before connecting the unit to the mains supply, switch the unit on and see if the power LED lights. If not, you will need to charge the battery before using away from a mains supply (see “Charging the battery”...
- Page 5 Additional Inputs In addition to the unit’s own wireless UHF microphones, a MIC/LINE IN combo XLR/jack input (32) is provided to connect an external microphone or line input. A MIC/LINE switch (33) sets the input sensitivity to suit which type of input is used. On the top panel, a VCV switch (16) activates the Voice Controlled Volume feature when pressed in.
- Page 6 To listen to FM radio, press the MODE button repeatedly until the display shows “RADIO” and then the FM frequency. There are 3 bands of FM memories – FM1, FM2, FM3, which can be selected in turn by a short press of the button.
- Page 7 Specifications Power supply 110-240Vac, 50/60Hz or 12-15Vdc, 5A Battery 12V, 7.2Ah sealed lead-acid Battery life Up to 6 hours HF driver 2 x 25mmØ (1”) balanced dome LF driver 300mmØ (12“) reinforced paper cone Output power : rms 200W S/N ratio 93dB Construction Injection-moulded polypropylene...
- Page 8 The full text of the EU declaration of conformity for 178.812UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/178812UK%20CE.pdf Errors and omissions excepted. Copyright© 2021. AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland 178.812UK User Manual...
