GXLD2QM
Digital Frequency Agile Dual Channel Wireless Microphone System
The GXLD2QM™ Digital frequency agile wireless system includes the following features:
•
Digital High Definition Audio
•
Frequency Agile Design
•

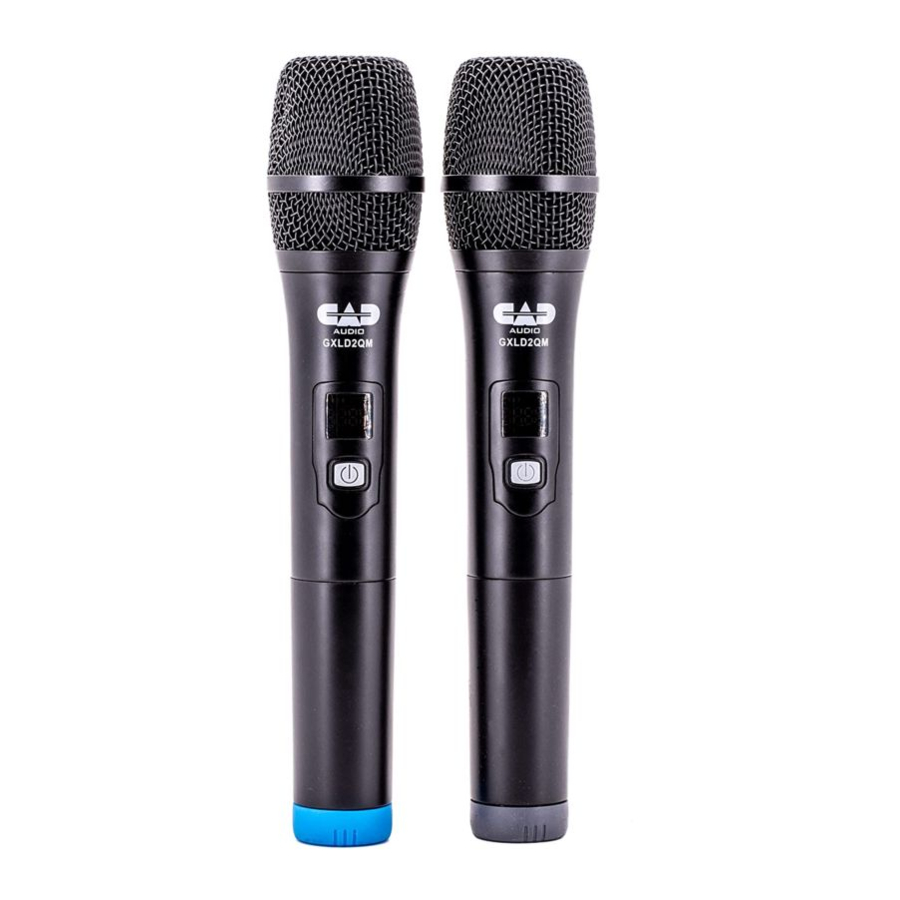

Dual Handheld System
•
QuickMic™ connection to your mixing board via integrated ¼" jack
•
QuickMic™ is supplied with USB and TRS 3.5mm adapters for added flexibility
•
Handheld transmitters feature the CADLive Style Neodymium capsules
•
Handheld transmitters and receiver feature low battery indicators
•
Handheld transmitters utilize AA Batteries with > 8 Hrs of operation
•
2 Year Warranty
Receiver
Power
5
1. ON/OFF Switch
2. Antenna
3. Charge indicator, Red charging, Green charged
4. DC 5V charging port
5. Low battery indicator, Blue on, Red needs charged
6. RF indicator, Red Ch A, Green Ch B
Owner's Manual
USB 5V
6
GXLD2QM Wireless Specifications:
Frequency Response 20Hz – 20kHz
Modulation
Transmitting Power
Sensitivity
Battery Life
Frequency Band
Transmitter
3
1. ON/OFF switch
2. Frequency Selection Button
3. Frequency Display
4. Battery Compartment
High Definition Digital QPSK
10mW
- 43 dBV (6.8mV) @ 1Pa
>10Hrs
500Mhz – 599Mhz
Adapters
4
USB adapter
3.5mm TRS adapter
©2020 CAD Audio Part No. 47830-59-00 PG1 Dec 2020
Part number 47830-59-00
Dec 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CAD Audio GXLD2QM
Summary of Contents for CAD Audio GXLD2QM
- Page 1 Owner’s Manual GXLD2QM Digital Frequency Agile Dual Channel Wireless Microphone System The GXLD2QM™ Digital frequency agile wireless system includes the following features: • Digital High Definition Audio • Frequency Agile Design • Dual Handheld System • QuickMic™ connection to your mixing board via integrated ¼” jack •...
- Page 2 3. Frequency Display 4. DC 5V charging port 4. Battery Compartment 5. Low battery indicator, Blue on, Red needs charged 6. RF indicator, Red Ch A, Green Ch B Part number 47830-59-00 12-15-20 ©2020 CAD Audio Part No. 47830-59-00 PG2 Dec 2020...
- Page 3 CAD Audio hereby warrants that this product will be free of defects in material and workmanship for a period of two years from the date of purchase. In the unlikely event that a defect occurs CAD Audio will, at its option, either repair or replace with a new unit of equal or greater value. Retain proof of purchase to validate the purchase date and return it with any warranty claim.
