Hydro digidoor 6 Installation Instructions And User Manual

Roll-up door opener
Hide thumbs
Table of Contents

Advertisement

Quick Links

7
digidoor
ROLL-UP
DOOR OPENER
Installation Instructions and User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the digidoor 6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hydro digidoor 6

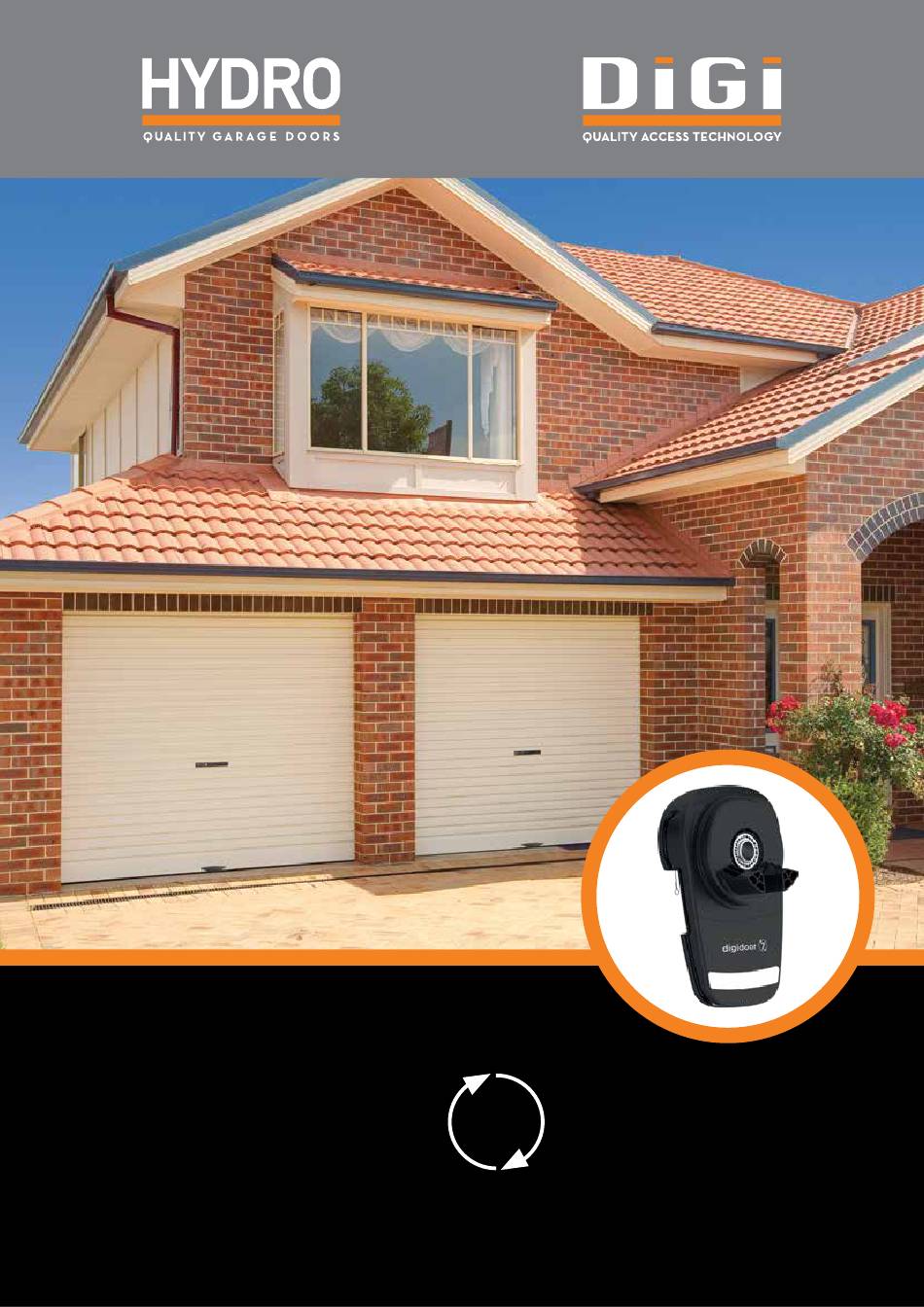

  • Page 1 digidoor ROLL-UP DOOR OPENER Installation Instructions and User Guide...
  • Page 2 WARNING • Please read the manual carefully prior to installation and use. • The installation of the door opener must be carried out by a technically qualified and licensed person. • Attempting to install or repair the door opener without suitable technical qualifications may result in property damage, severe personal injury or death.

  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFETY RECOMMENDATIONS PACKAGE CONTENTS TOOLS DOOR REQUIREMENTS PRE-INSTALLATION RECOMMENDATIONS ATTACHING THE WEIGHT BAR CURTAIN FIXING (IF REQUIRED) THE RELEASE HANDLE AND CORD OPERATING THE MANUAL RELEASE LEFT/RIGHT SIDE INSTALLATION ATTACHING EXTENSION BAR (IF REQUIRED) INSTALLATION PROCEDURE CONTROL PANEL INSTALLATION MANUAL FUNCTIONAL SPECIFICATIONS SAFETY REVERSE TEST DESCRIPTION OF EXTERNAL PORT...

  • Page 4: Important Safety Recommendations

    IMPORTANT SAFETY RECOMMENDATIONS WARNING: Failure to comply with the following safety recommendations may result in property damage, serious personal injury or death. Please read carefully and adhere to all safety and installation recommendations. The opener is designed and manufactured to meet local regulations. The installer must be familiar with the local regulations required in respect of the installation of the opener.
  • Page 5 10. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailers for recycling advice. 11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • Page 6: Package Contents

    1. PACKAGE CONTENTS 1. Instruction manual 2. Clamp bracket, plates, washers (2) and nuts (2) 3. Transmitter (2) 4. Warning label 5. Self-tapping screw (2, used for fixing door curtain) 6. Release handle 7. Motor...

  • Page 7: Tools

    2. TOOLS 1. Marker pen 2. Adjustable wrench for U-bolts already installed on the door (2) 3. Philips-head screwdriver 4. Rope 5. Drill and 6.5mm drill bit 6. Ladder 7. 8mm, 10mm, 13mm sleeve, 300mm extension sleeve (for narrow side mounting) and socket wrench 3.

  • Page 8: Pre-Installation Recommendations

    4. PRE-INSTALLATION RECOMMENDATIONS Please complete the following test under no other force than the torsion force of the door spring to ensure correct balance of the door: 1. Raise and lower the door to determine whether there are any sticking or binding points. (20kg is the absolute maximum allowable to raise or lower the door in any position).

  • Page 9: Curtain Fixing (If Required)

    6. CURTAIN FIXING (IF REQUIRED) Note: Check whether the curtain and drum wheel have been fixed with at least two screws. If not, insert the supplied self-tapping metal screws where the curtain leaves the roll to prevent ballooning. Secure these through the curtain into the drum wheel at each end of the roll.

  • Page 10: Operating The Manual Release

    8. OPERATING THE MANUAL RELEASE Note: Be careful when operating the clutch. If the torsion spring in the door fails, the door will instantly close when the clutch is released, which may cause personal injury and property damage. Release the clutch: While the clutch is in the locked position, pull the clutch handle down manually.

  • Page 11: Installation Procedure

    11. INSTALLATION PROCEDURE Note: The opener can be installed on either side of the door. The following instructions are for RIGHT HAND INSTALLATIONS. • Ensure the saddle U-bolts at the end opposite the opener side are securely fastened. • Completely open the roller door. Tie the safety rope in the middle of the door. Do not tie the rope too tightly, as this would damage the door.

  • Page 12: Control Panel Installation Manual

    12. CONTROL PANEL INSTALLATION MANUAL The first startup shows FC,99-00 countdown, and the R indicator is always on after the end of the countdown. Standby display: 1. No stroke standby display 2. Motor has stroke cycle display Buttons instruction: SET: Confirm enter menu settings CODE: Code the remote/cancel code/menu setting interface exit function UP: Open the door/stop/menu interface function option switch DOWN: Close/stop/menu interface function option switch...

  • Page 13: Functional Specifications

    13. FUNCTIONAL SPECIFICATIONS Note: Before setting the stroke, release the clutch and manually lift the door to the middle position. Once again confirm whether the left/right side of the motor is installed correctly, then lock the clutch. Locking the clutch will prevent the door body from being damaged in the process of setting the stroke as a result of incorrect installation setting of the left/right side of the motor, or the door body being in the upper/lower limit position.
  • Page 14 Motor slow stop function Slow stop function during motor operation (To reduce the impact of a sudden stop on the door body during normal operation.) Note: This function slows the motor down to a stop when the stop command is triggered to reduce the impact on the door’s mechanical Long-press the SET button until1.- structure when the motor running at full...
  • Page 15 Automatic closing time and Automatic closing function time condition setting Note: AUTO closing function switch is set by Long-press the SET button AUTO Closing. until 1.- appears on the display. • Long-press SET button until the display shows , then press UP or DOWN until the display shows (the automatic closing function main menu).
  • Page 16 Using UP or DOWN to switch to 3.2 means closing function is recommended automatic closing is available at any location. during the installation of infrared or Photo Cell. LED off delay time setting LED off delay time setting • Long-press the SET button until display Long-press the SET button until1.- appears on the display.
  • Page 17 Partial open/height setting Partial pen/height setting • Long-press the SET button until the Long-press the SET button until 1.- appears on the display. display shows , then press UP or DOWN until the display shows . (This is the menu for partial open/height setting). •...
  • Page 18 Photo cell on/off setting [ Photo cell on/off setting Long-press the SET button until 1.- Note: Our roller door opener requires appears on the display. the NC Photo Cell device, and must be connected to PE of the opener. Make sure the photo cell has been correctly installed, using normally closed contacts at the accessory terminals of...

  • Page 19: Safety Reverse Test

    14. SAFETY REVERSE TEST To test your door’s safety rebound system: Place an obstacle about 40mm in height on the floor under the garage door, and close the door. The door should start opening automatically when it comes in contact with the obstacle. If the door just stops, the safety rebound system is not active.

  • Page 20: Specification

    16. SPECIFICATION Input voltage AC220~240V/50-60Hz Max. tension 800N @Ø300MM Max. door size 20 m Max. door load 130Kg Max. door height Model 24V DC Working frequency 433.92MHz/868.35MHz (optional) Working temperature -20°c ~ 50°c Rated load 45Nm Maximum chuck speed 8.5r/min Code compatibility format Rolling code (HCS300/HCS301 data format) 17.

  • Page 21: Common Faults And Solutions

    18. COMMON FAULTS & SOLUTIONS Fault appearance Fault description Solutions Power head • Power supply failure. • Check whether the opener socket is energized. not working or • Plug wire is loose. • Check whether Fuse Tube is broken. switching on; •...

  • Page 22: Parts List

    19. PARTS LIST Item Description Item Description Item Description Sun gear assembly Transformer Power cable Upper housing Trolley release cord Extend arm (optional) Chassis sub-assembly Control board Fuse Drive board 24V power socket Front lower housing assembly Decorative cover Operation panel Rear cover (control box)

  • Page 23: Maintenance

    20. MAINTENANCE Daily maintenance 1. No special maintenance is required for the logic circuit board. 2. Check the door at least twice a year to ensure it is properly balanced, and that all working parts are in good condition. 3. Check the rebound/reverse sensitivity at least twice a year, and adjust it if necessary. 4.
  • Page 24 SBS is a supplier of specialised building products. As part of the Swartland Group, traditional values such as hard work, pride in our craft and continuous improvement are an integral part of who we are. These values are at the core of all our products, resulting in products that are manufactured to the highest standards and made to last.
