QZ -AD15 User Manual

User Guide

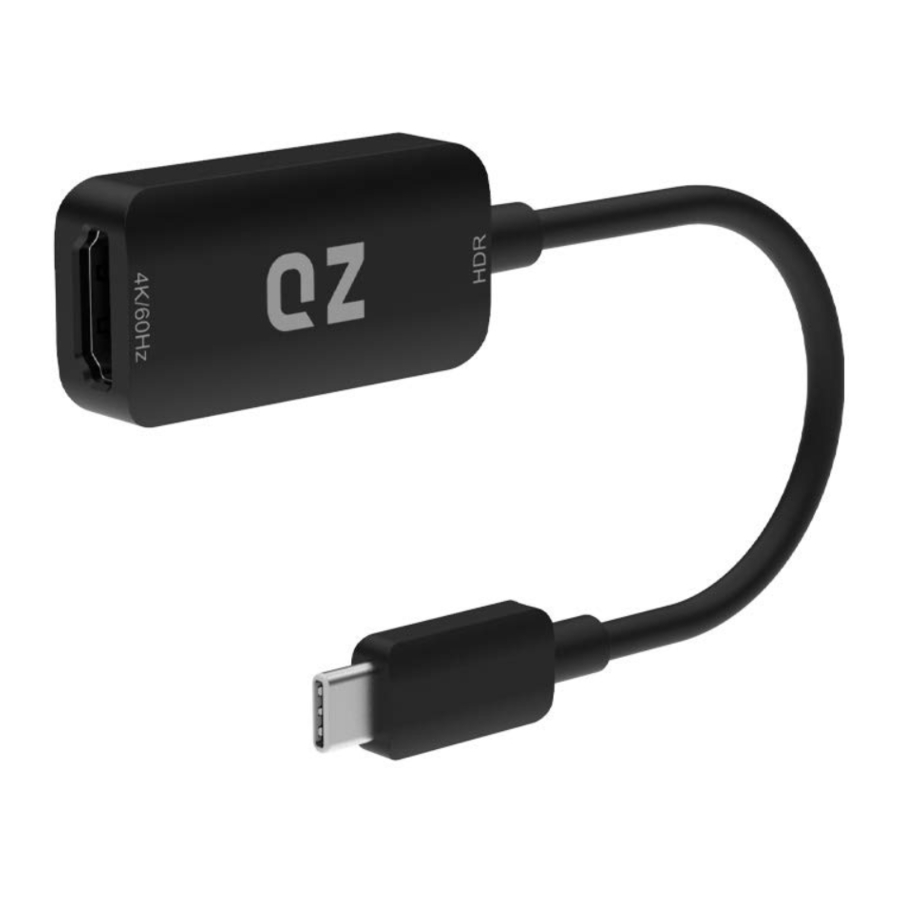

QZ USB 3.1 Type-C to HDMI Adapter
QZ-AD15
Introduction
The QZ USB 3.1 Type-C to HDMI Adapter allows you to transmit video signals from a DP Alt mode
enabled Type-C or Thunderbolt 3 source to a high definition HDMI display (TV sets, projectors, etc). It
works on Macbook or Google new Chromebook Pixel and other DP Alt mode enabled Type-C or
Thunderbolt 3 devices. You can watch videos or slideshows together on the big screen
Package Content
QZ USB 3.1 Type-C to HDMI Adapter
Welcome Guide
Specifications
Product Name
Product Model
Material
Output Interface
Input Interface/Power Source
Alt Mode over USB Type C
HDMI Support
Dimensions
Weight
Color
Operating Temperature
Operating Humidity
QZ USB 3.1 Type-C to HDMI Adapter
QZ-AD15
ABS Plastic
HDMI Female
USB-C 3.1 Male/Bus Power
DP 1.2 Alt Mode
4Kx2K@60Hz
4:4:4, 8bit with 18Gbps Bandwidth
6/8/10/12 bit color depth output
Output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
HDCP 2.2 & HDCP 1.4
HDR
43.85 x 22.5 x 11.5 mm
19 g
Black
0℃ to 45℃
10% to 85% RH (no condensation)
Questions? We're here to help!
support@qzonline
QZ is registered trademark of Yugadi Electronics. All rights reserved.
All other trademarks are the property of their respective owners.
