Summary of Contents for Foamit APW20HT

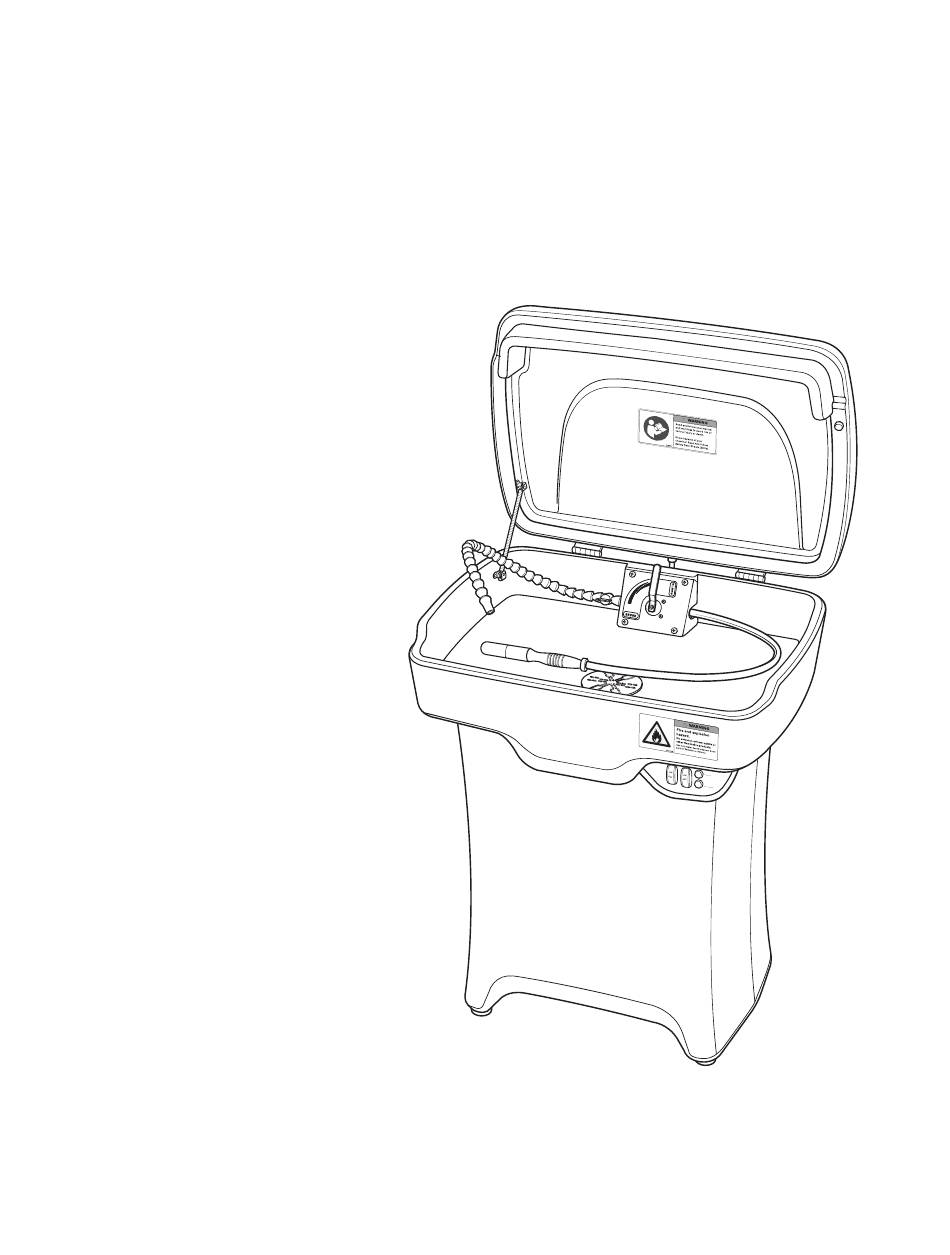

- Page 1 Heated Aqueous Parts Washer User Manual APW20HT READ ALL INSTRUCTIONS BEFORE USING, OR SERVICING, THIS EQUIPMENT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. English (Original Instructions)
-
Page 2: Table Of Contents
Parts ..........13 Model: APW20HT Model: APW20HT V20190916 •... -
Page 3: Safety
400 pounds. Always arrange the parts so their weight is evenly distributed. Contact with hot surfaces may result in serious burns. Never touch the heating element while it is hot. Always allow the heating element to cool down before handling. Model: APW20HT V20190916 • Page 3... -
Page 4: Safety Labels
Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Safety Labels The location of safety labels are shown here. Important! Immediately replace missing or damaged safety labels. REV20190503 Model: APW20HT V20190916 • Page 4... -
Page 5: Product Overview
17 . Supply Hose Quick Connect 8 . Base 18 . Sink Hose Quick Connect 9 . Mounting Feet (x4) 19 . Pump 10 . Control Box Assembly 20 . Low Fluid Switch 21 . Heating Element Model: APW20HT V20190916 • Page 5... -
Page 6: Installation
30 x 18 x 5 in. (76.2 x 45.7 x 12.7 cm) Work surface height 36 in. (91.4 cm) Foot type Four adjustable leveling feet Certifications Conforms to UL Std. 1204, Certified to CSA Std. 22.2# 68 Model: APW20HT V20190916 • Page 6... -
Page 7: Assembling The Equipment
4 . Place the control box assembly onto the base. 5 . Connect the sink quick connect hose from the sink to the supply hose quick connect from the pump. 6 . Place the sink on top of the base. Model: APW20HT V20190916 • Page 7... - Page 8 10 . Connect the electrical plug to a properly-grounded 120V 15A outlet. Important! Always unplug the electrical plug from the 120V outlet before servicing the equipment! Model: APW20HT V20190916 • Page 8...
-
Page 9: Use
On. when the solution fill level temperature Place the parts in the sink. reaches 105° F (40.5° C) Important! Do not overfill the sink. Maximum weight of the part(s) should not exceed 400 lbs. Model: APW20HT V20190916 • Page 9... - Page 10 12 . Press the heater on/off switch and turn the heater Off when In-line Valve finished cleaning the parts (or servicing the equipment). 13 . Tap the lid spring towards the front of the equipment and close the lid. Model: APW20HT V20190916 • Page 10...
-
Page 11: Cleaning & Maintenance
. Lift up on the right side of the sink to access the quick release button on the hose connected to fluid supply connector on the control box assembly. b . Undo the connection by pressing the quick release button. Model: APW20HT V20190916 • Page 11... -
Page 12: Troubleshooting
Repair or replace if necessary. • Check the pump is functioning. Repair or replace if necessary. Check the Drain Grate and Filter Bag for sediment buildup or blockage. Solution doesn’t drain. Clean or replace if necessary. Model: APW20HT V20190916 • Page 12... -
Page 13: Parts
Includes Flexible Rinse Line, Brush Hose, Control Valve and Faceplate with Decals, and PW-HV3-A Connection Hose to Control Box PW-SINK Includes Sink PW-BASE Includes Base LVFT200 Leveling Feet PW-FLTBG Filter Bag APW20HT-CB Air Control Box Model: APW20HT V20190916 • Page 13...
