TECH Twinn Rexx CH47 Assembly Instructions Manual

See this manual online at www.techmodelproducts.com/support.htm

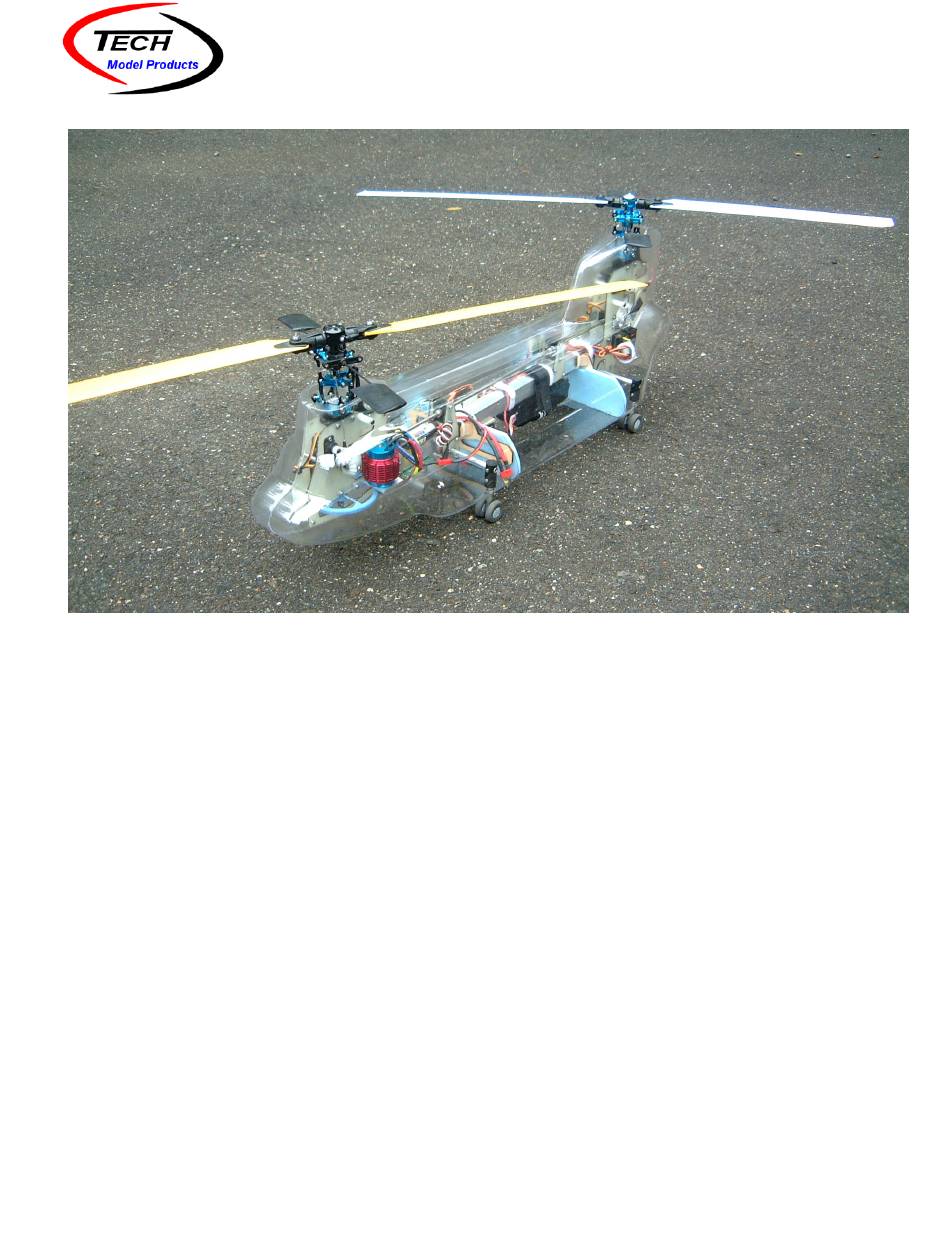

This is a sport scale replica of the famous CH47 Chinook tandem rotor helicopter. It is designed to attach to
the Twinn Rexx frame with only four screws. The body halves can be screwed/taped together or a
combination of both. A cutout or hatch underneath allows access to the battery etc. The body is about
68.5cm (27 inches) and weighs 230 grams (8.2 ounces) unpainted.

Kit Contents:

Left body panel
Right body panel
Body to frame mounting hardware
Body support kit

Tools Required:

Lexan scissors (curved)
Drill with #34 bit (0.11") & 2mm bit (0.078")
Rotary tool - carbide cutter, sanding drums
Hobby knife #11 blade
Paper punch
2mm tap and drill set (0.062" drill bit)
Sanding block 220 grit
Tech Model Products L.L.C. • www.techmodelproducts.com • Rev A 5/20/18
Twinn Rexx CH47 Body Assembly Instructions
Qty:
1
1
1
1

Materials Required:

Acetone (used as glue)
5 minute epoxy
Wood glue/White glue (optional)
Tape
Thin CA
M2x6 button head screws
