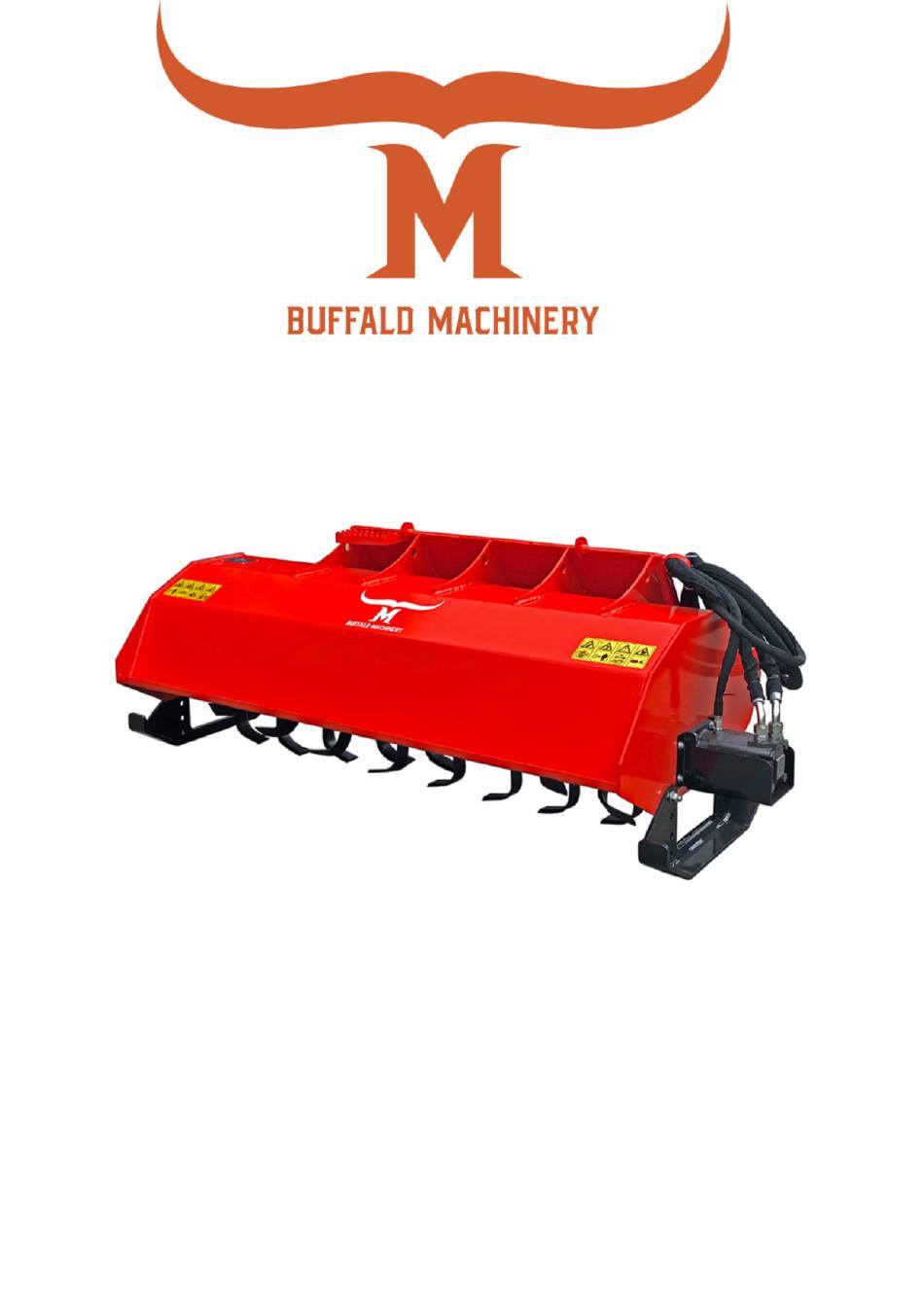

- Page 1 Rotary Tillers Operation Manual RTS72 IMPORTANT READ THESE INSTRUCTIONS BEFORE INSTALLING AND USING THIS IMPLEMENT...
-
Page 2: Safety At All Times
Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look For The Safety Alert Symbol Thoroughly read and understand The SAFETY ALERT SYMBOL indicates there is a the instructions given in this potential hazard to personal safety involved and extra manual before operation. -
Page 3: Important Safety Information
Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. I MPORTANT: Do not tow a load Transport Safely ▲ That is more than double the weight Shutdown and Storage C omply with state and local laws. - Page 4 Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Avoid High Prepare for Emergencies Wear Pressure Fluids Hazard Protective Equipment B e prepared if a fire starts. ▲ ▲...
-
Page 5: Skid Steer Requirements
Skid Steer Requirements The Rotary Tiller is designed to attach to skid steer loaders with the following minimum requirements: SAE lift capacity......1200lbs. Hitch type....Universal Quick Hitch Hydraulic flow rates RTS72lowflow ....14-23gpm RTS72highflow ..23-40gpm Hydraulic pressure rates (min. - max. psi) RTS72lowflowmotor...2800-4500psi RTS72highflowmotor..2300-4500psi Hydraulic hoses . - Page 6 RTS72 PARTS LIST Part No. Part Description HRT72.1 ROTOR ASSEMBLY HRT72.1.1 ROTOR WELDMENT HRT72.1.2 TINE, BI-DIRECTIONAL TILLER GB/T 889.2 LOCK NUT M16*1.5 GB/T 97.1 WASHER 16 GB/T 5786 BOLT HEX M16*1.5*50 HRT72.2 FRAME WELDMENT Rotary Tiller SRT72...
- Page 7 HRT72.3 AXLE HEAD(LEFT) HRT72.4 SNAP RING(LEFT) HRT72.5 AXLE HEAD(RIGHT) HRT72.6 COVER(LEFT) HRT72.7 AXLE COVER WELDMENT HRT72.8 MOTOR PROTECTOR HRT72.9 SKID SHOE NON DRIVE HRT72.10 BEARING ASSEMBLY(LEFT) HRT72.11 DUST COVER HRT72.12 HYDRALIC COMPONENTS 12-1 HRT72.12-1 OIL PIPE 01 12-2 GE18LR34ED END STRAIGHT JOINT G3/4“-M27X1.5 12-3 GE18LRED END STRAIGHT JOINT G1/2“-M27X1.5...
