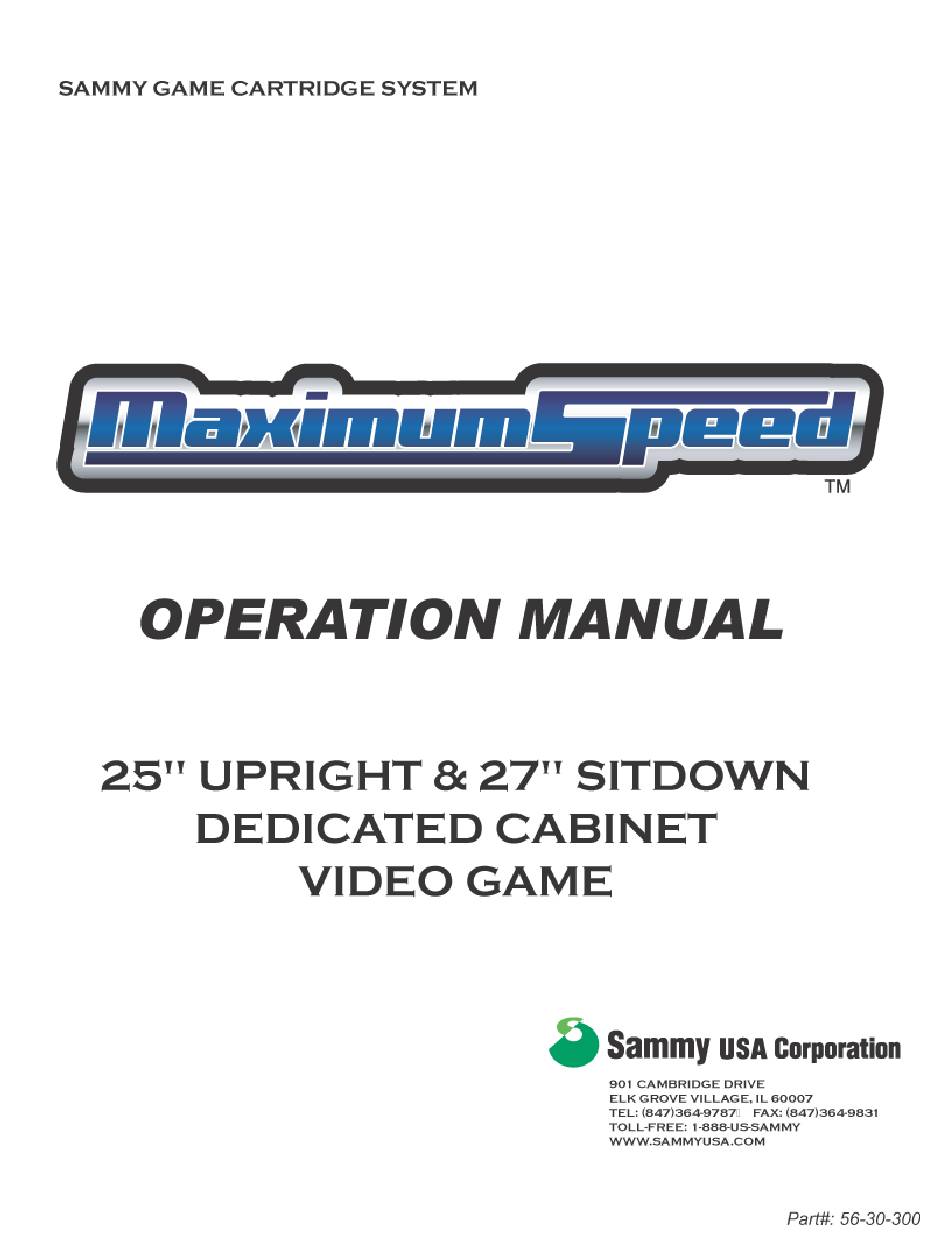

Sammy Maximum Speed Operation Manual

Defdicated cabinet video game
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for Sammy Maximum Speed

  • Page 2: Table Of Contents

    CONTENTS SPECIFICATIONS OF CABINET......2 to 6 GAME PLAY............. 7 to 8 GAME SETTING............CALIBRATION OF STEERING & PEDALS.... SYSTEM BOARD ........... 11 to 15 EXPANSION CARTRIDGE SLOT 1 ..........JAMMA CONNECTOR TABLE ..........SPEAKER VOLUME (SOUND) ..........MODEM CONNECTOR (SRL) >>> OPTION .......
  • Page 5 INSIDE VIEW OF BACK DOOR (UPRIGHT) Motor Driver Board Part#: 56-20-175 Cash box (Back view) 120VAC IN / 24VAC OUT Transformer (For Feedback Motor) Part#: 56-60-201 INSIDE VIEW OF COIN DOOR (UPRIHGT) Test & Service Switch Bracket Coin-in counter meter Mars DBA AE2451 (OPTION)

  • Page 8: Game Play

    2. GAME PLAY Maximum Speed game has SINGLE (Stand alone 1 player game) play or LINK play (Link 2 games using Link cable [option] for 2 player competition). SINGLE PLAY JOIN-IN RACE , LAP TIME AND RANKING TRIAL!!! HOW TO START THE GAME 1) Select the RACE TYPE.
  • Page 9 GAME SCREEN REMAINING TIME Shows the remaining lap time. GAME OVER when time reaches 0 (Zero). POSITION Displays your current Ranking. Displays your current Lap number. LAP DATA Displays previous lap times. "REC" = Best lap time of current course. "NOW" = Current lap time. ODOMETER Displays your current speed.

  • Page 10: Game Setting

    3. GAME SETTING MAXIMUM SPEED has the following settings. Press TEST switch to display SYSTEM MENU screen. Select CONFIGURATION and next select GAME SETTING. You can adjust the following game settings: GAME DIFFICULT 3 kinds. (EASY, NORMAL or HARD) Default is NORMAL.

  • Page 11: Calibration Of Steering & Pedals

    4. CALIBRATION OF STEERING & PEDALS For Steering Wheel & Pedal calibrations, go to TEST MENU and select I/O TEST. Screen shows calibration screen. (Fig.1) Fig.1 Turn Steering wheel to Left stop and Right stop. Press Accelerator pedal down to stop. Press Brake pedal down to stop.

  • Page 12: System Board

    5. SYSTEM BOARD DIMENSIONS: 10 2/3" (W )x 9" (D) x 2 1/2" (H) WEIGHT: 3 lbs GAME CARTRIDGE EXPANSION CARTRIDGE SLOT 2 (OPTION) SPEAKER VOLUME (SOUND) MODEM CONNECTOR (SRL) VGA OUTPUT (VDO) STEREO SPEAKER OUTPUT & SERIAL TERMINAL (CN3) DIPSW (TV RESOLUTION AND TEST MODE) MOUNTING BRACKET...

  • Page 13: Jamma Connector Table

    JAMMA CONNECTOR TABLE The other side of PIN1 is "PIN A" JAMMA EDGE CONNECTOR (56 PINS) FUNCTION FUNCTION N.C. N.C. N.C. N.C. 1P COIN COUNTER 2P COIN COUNTER 1P COIN LOCKOUT 2P COIN LOCKOUT MONO SPEAKER MONO SPEAKER AUDIO OUT AUDIO GND VIDEO RED VIDEO GREEN...

  • Page 14: Speaker Volume (Sound)

    SPEAKER VOLUME (SOUND) Use for adjusting game sound HIGH SOUND MODEM CONNECTOR (SRL) >>> OPTION JST 9PIN SUB, CONNECTOR (MALE) FUNCTION N.C. RXD2 TXD2 N.C. N.C. DIP SWITCH (2 POSITIONS) SW-1: Change Frequency of TV signal. Default is OFF = 15KHz* *For Standard = Low resolution monitor SW-2: Change ON position to go to...

  • Page 15: Stereo Speaker Output Connector >>> Option

    STEREO SPEAKER OUTPUT CONNECTOR >>> OPTION NOTE: Cannot use JAMMA speaker output & STEREO speaker output at same time. STEREO SPEAKER OUTPUT & EXTENSION SERIAL CONNECTOR, PIN LAYOUT (JST, 10 PIN PHD CONNECTOR) FUNCTION FUNCTION STEREO SPEAKER L + STEREO SPEAKER L - STEREO SPEAKER R + STEREO SPEAKER R - N.C.

  • Page 16: Game Cartridge

    GAME CARTRIDGE HOW TO MOUNT GAME CARTRIDGE GAME CARTRIDGE Hook Check position of connector for both game cartridge and slot in MAIN PCB. Then insert Game Cartridge. Make sure that Game Cartridge is locked by hooks. Connector Hook HOW TO REMOVE GAME CARTRIDGE Pinch both Hooks on game cartridge, then pull game cartridge out.

  • Page 17: System Menu

    6. SYSTEM MENU Press TEST switch to enter SYSTEM MENU. (TEST switch can be activated anytime. Game play will cancel when you press a test switch during game play. Credit[s] will be lost.) FLOW CHART BOOKKEEPING HOW TO CONTROL Press TEST switch to move cursor. Press SERVICE switch to select. (If there is no TEST switch in your cabinet, change DIPSW #2 ON, re-power on to go to SYSTEM MENU.

  • Page 18: Test Mode

    TOP PAGE OF SYSTEM MENU Move cursor to contents then select to go to next menu. Move cursor with TEST switch to EXIT and select to go back to normal game mode. Credit(s) are memorized. TEST MODE Use for function test of game. Select EXIT to go back to top page of SYSTEM MENU.
  • Page 19 SOUND TEST Use for checking Speaker output. When MONO SPEAKER setting, select START to output sound. Select STOP to stop sound. Select EXIT to go back to TEST MODE screen When STEREO SPEAKER setting (OPTION), select RIGHT to output sound from right speaker.

  • Page 20: Coin Setting

    COIN SETTING WARNING: ALL CREDIT DATA WILL BE LOST WHEN MAKING THE FOLLOWING CHANGES! GAME MODE Select FREE PLAY or NORMAL. Move cursor to GAME MODE then press SERVICE switch to select NORMAL (COIN OPERATION) or FREE PLAY. (Refer Fig.B and C) COIN CHUTE TYPE Select COMMON or INDIVIDUAL.
  • Page 21 PRESET SITUATION There are 53 kinds of coin settings. When PRESET SITUATION is NORMAL, you can select from 14 kinds. (#00 to #09 and #45 to #48.) This is basic coin settings line-up. When PRESET SITUATION is ADVANCE, you can choose from all 53 kinds as shown below.

  • Page 22: Configuration

    CONFIGURATION 4 kinds of contents. Contents of COMMUNICATION is unavailable when game has no COMMUNICATION feature. SYSTEM SETTINGS AREA: Select country of operation. (JAPAN, NORTH AMERICA, EUROPE or OTHER) This setting effects factory defaults. LANGUAGE: Select from following: (English or Japanese) ADVERTISE SOUND: Select to output sound in attract mode.

  • Page 23: Bookkeeping

    BOOKKEEPING SRAM on Main PCB records & saves following data. TOTAL TIME: This is length of time when game is powered on. TOTAL PLAY TIME: Play time. COIN #A: Total coins of COIN CHUTE 1. COIN #B: Total coins of COIN CHUTE 2. TOTAL COIN: Total coins of COIN #A + COIN #B.

  • Page 24: Link Cable (Option) & Settings

    7. LINK CABLE (OPTION) & SETTINGS MAXIMUM SPEED needs a LINK CABLE to LINK 2 games. (OPTION) CONTACT YOUR LOCAL AUTHORIZED DISTRIBUTOR TO PURCHASE. HOW TO CONNECT UPRIGHT game: 1) Open control panel and Instruction bracket to locate Main PCB.
  • Page 25 COMMUNICATION SETTING Set up LINK play in this mode. Go to "CONFIGURATION" then select "COMMUNICATION SETTING." Do the following. COMMUNICATION 2 kinds of settings. ("ON" or "OFF") "ON" to "LINK PLAY". Default is "OFF." WAIT TIME 4 kinds of settings. ("10 SEC", "15 SEC", "20 SEC"...
