Summary of Contents for HellermannTyton Cable Scout Cam

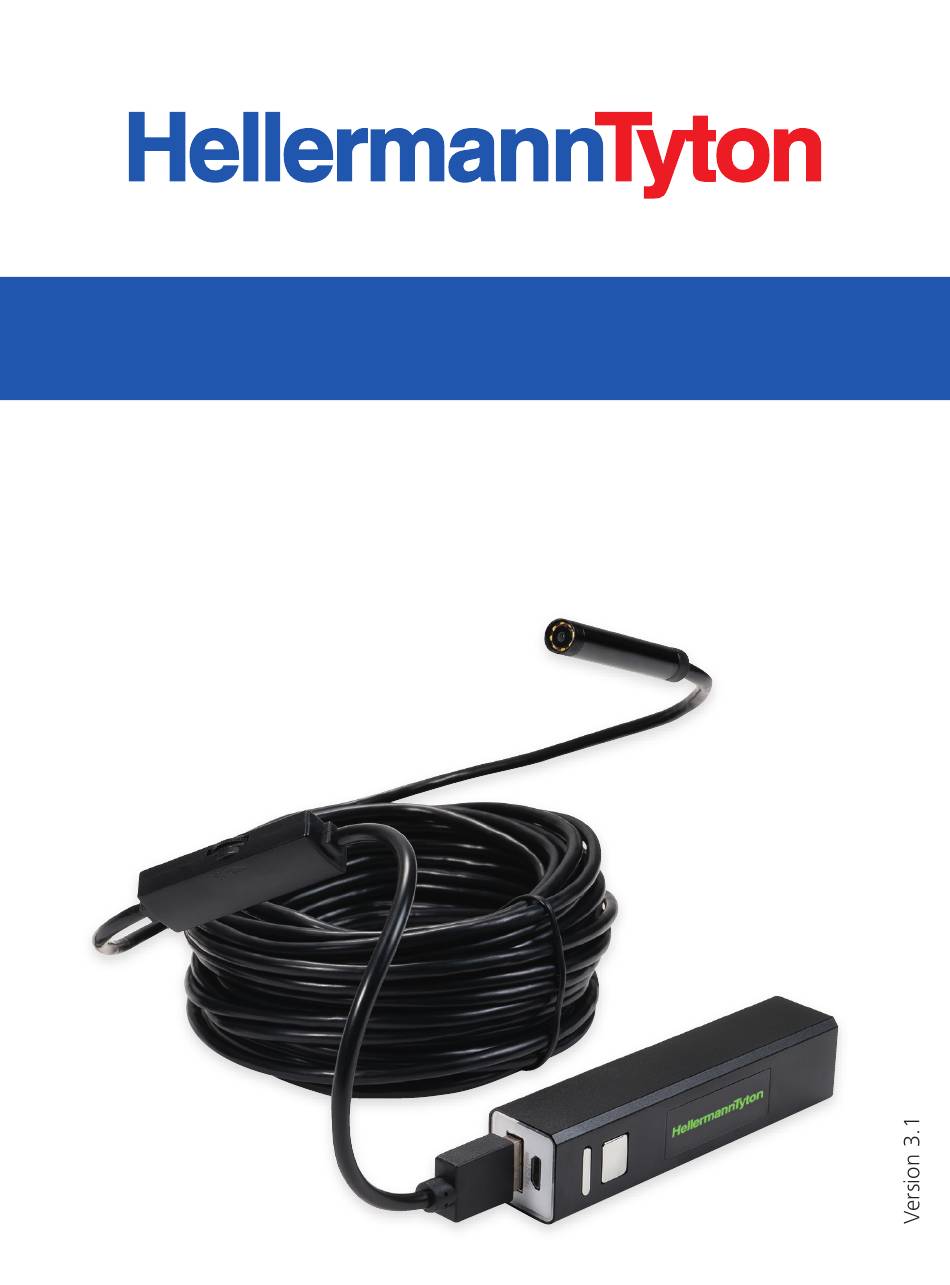

- Page 1 User manual Cable Scout Cam WiFi inspection camera...
- Page 2 • Charge the device with a suitable 5 Volt USB charger. • Please observe the local regulations for safe disposal. • Do not expose the device to high temperatures or fire as this may cause the battery to explode. Rennbahnweg 65 1120 Vienna, Austria E-mail: office@HellermannTyton.at www.HellermannTyton.at...
- Page 3 1. Introduction Thank you for choosing Cable Scout Cam. Please read all the instructions carefully before using this device. With the Cable Scout Cam you can transmit video images in real time and make video and picture recordings in confined spaces that are otherwise hard to see into.
- Page 4 3. Package contents USB charging cable Wireless transmitter HD camera unit Camera accessories 4. Parts Charging Charging cable input indicator Power switch Camera USB input Splash-proof LED lens Semi-rigid cable LED light switch...
- Page 5 5. Operating instructions Basic operation 1. First, connect the USB jack of the camera to the Wireless transmittor. Press the power switch for three seconds. The indicator lamp on the base unit will light. Turn the LED light switch to adjust the brightness of the LEDs in the camera head.
- Page 6 Hook Mirror 6. Application scenarios Cable Scout Cam use is primarily intended for visual inspection in conduits, suspended ceilings, dry construction walls, and air shafts. HellermannTyton does not recommend this product for use in application scenarios where the product is immersed in liquids.
- Page 7 7. App Downloading For Android Version 4.2 or higher: Search “Inskam” in the Google Play Store and install the app or download it from www.inskam.com/download/inskam1.apk With Android turn off mobile data connection. For iOS Version 9.0 or higher: Search “Inskam” in the Apple App store and install the app.
- Page 8 Note: If your device does not find “inskam***-xxx” then please check the battery level and turn the camera off then on again. After the connection is successful, click on the Inskam icon to launch the app and view the live video transmission. Notice: If your network adapter prompts you to switch to a different WiFi, please select “Decline”.
- Page 9 9. App operation Zoom in and out using thumb and forefinger on touchscreens. You can also rotate the image via the app interface. The function “Compared” enables to display a picture on one side of the screen and to keep filming on the other side. 10.
- Page 10 How to use on Windows PCs: Please download the zipped software file from www.kkmoom.com/camera.rar and then install the software. Switch on the wireless transmitter, plug in the camera USB cable and open the software. You can now use the camera. How to use on MACs: On MacBook OS please use “Photo Booth”, “Quick Time Player”...
- Page 11 Technical Parameters: Model YPC110 Active pixel sensor CMOS Image resolution 1600x1200 Horizontal angle of view 72° Transmitting frequency 2412-2612 Mhz Minimum illumination 0 Lux Power Supply 3.7V 600mAh lithium battery Unobstructed effective range 5–10 m Waterproofing grade IP68 (lens tube only with supplied lens cover) Lens diameter 5.5–8.0 mm...
- Page 12 Declaration of conformity (CE) This product is in compliance with the essential requirements and other relevant provisions of §3 of EC directive 1999/5/EG as long as it is used for its intended purpose. EU environmental regulations Electrical products may not be disposed of with household waste.
