Summary of Contents for Metro DataVac Mux4

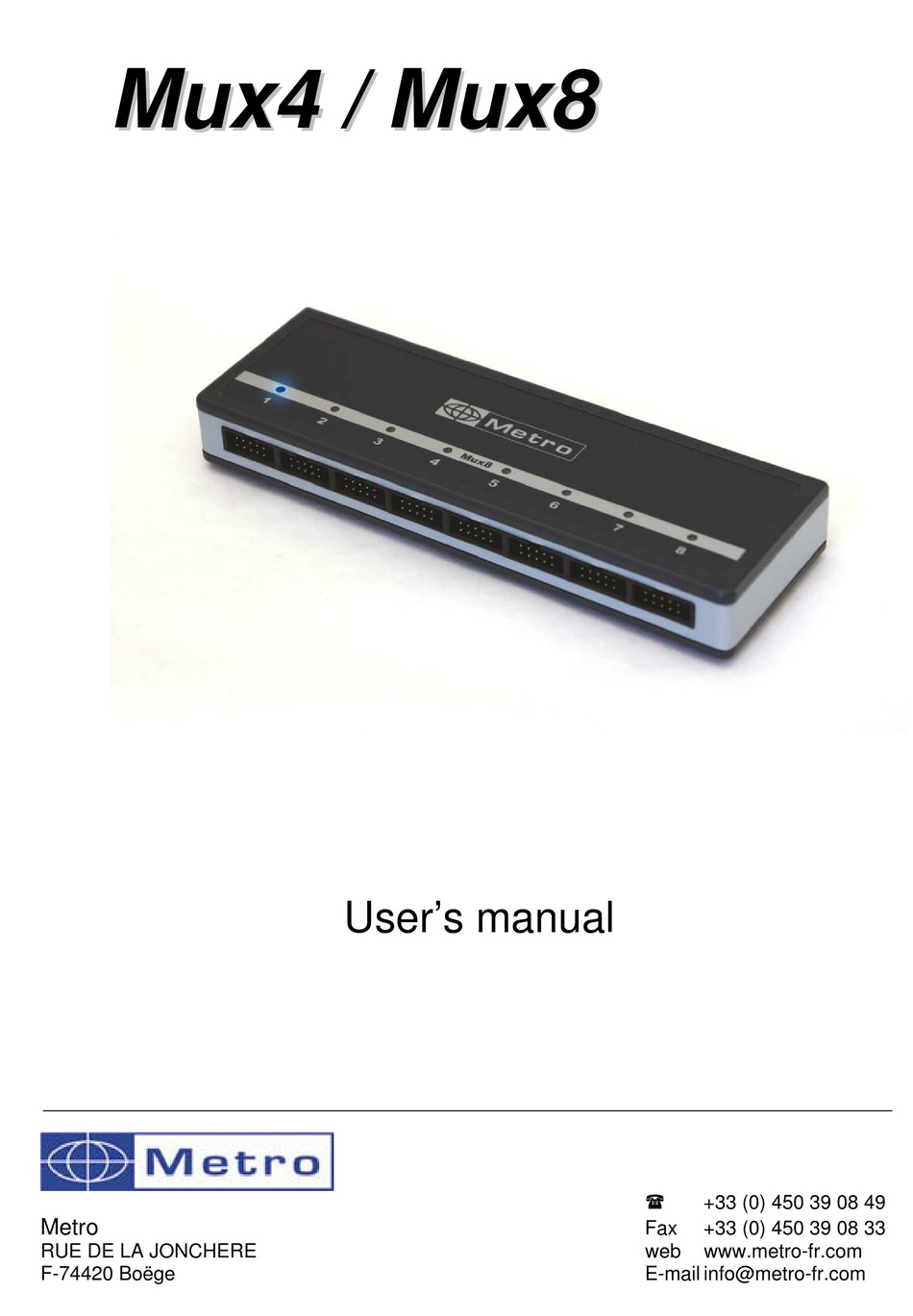

- Page 1 User’s manual +33 (0) 450 39 08 49 Metro +33 (0) 450 39 08 33 RUE DE LA JONCHERE www.metro-fr.com F-74420 Boëge E-mail info@metro-fr.com...
- Page 2 Mux4 / Mux8 BEFORE USING THE MULTIPLEXER, PLEASE READ THE SAFETY RULES IN THE APPENDIX B VERY CAREFULLY 1. WARNING The information contained in this document can be modified without notice. The manufacturer does not give any guarantee regarding the guarantees for commercial quality of this material or for its ability to fit to a particular use.
- Page 3 Mux4 / Mux8 4. CONTENTS OF THE BOX CD with the drivers to be installed USB cable for Multiplexer connection to the 5. BASIC TECHNICAL DATA 1 USB port for connection to a computer and power supply 1 external release input (pedal or contact) ...
- Page 4 Mux4 / Mux8 6. INSTALLATION Please follow the following procedure before using your Mux 4 or 8: 1- Launch the file « driver USB.exe » located on the directory « Driver USB » that is on the CD. The installation is automatic.
- Page 5 Mux4 / Mux8 7. THE USB PORT Data are transmitted according to the following format: 9600 baud, 8 data bits, no parity, 1 stop bit Checking messages on the USB port Under mentioned ‘n’ can take the values 2, 4, 8, according to the Mux channel number.
- Page 6 Character @ or Esc Decimal 64 or 27 49 to 56 Hexadecimal 40 or 1B 31 to 38 The x character represents the number of the selected input, i.e. 1 to 4 (Mux4) or 1 to 8 (Mux8). Page 6...
- Page 7 Instrument reading command This command causes the previously selected instrument reading and then the transmission of the value to the USB port. Command format: Character @ or Esc Decimal 64 or 27 Hexadecimal 40 or 1B When an instrument has been selected, the transmission of its value can also be triggered through the external trigger input (foot switch) or with the instrument «...
- Page 8 Mux4 / Mux8 from the manufacturer, including electrical or mechanical modification, removal of serial numbers or of the manufacturer's trademarks or of any other identification. THE SOLE RECOURSE UNDER THIS GUARANTEE SHALL BE THE REPAIR OR THE REPLACEMENT OF DEFECTIVE PARTS AS INDICATED ABOVE. UNDER NO...
