Quick Start Guide

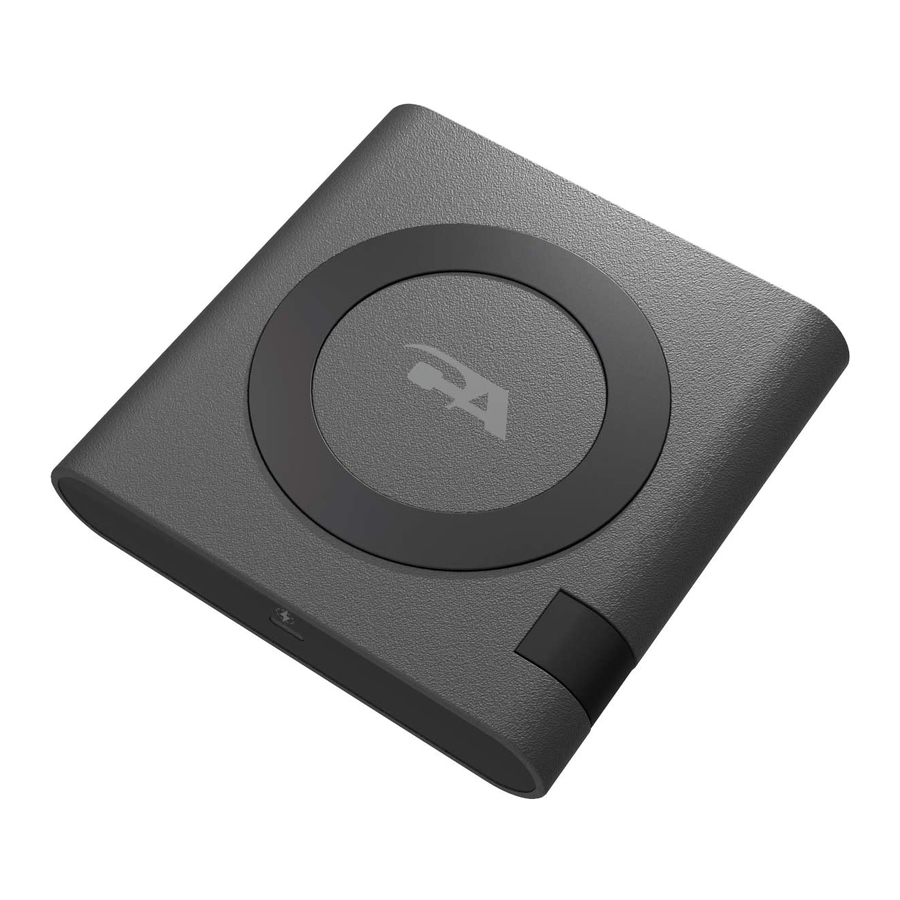

Micro Docking Station
www.CyberAcoustics.com
CA P/N: DS1500 Rev. A01
2021-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Essential and is the answer not in the manual?

Questions and answers

Summary of Contents for Cyber Acoustics Essential

  • Page 1 Quick Start Guide Micro Docking Station www.CyberAcoustics.com CA P/N: DS1500 Rev. A01 2021-01...
  • Page 2 In the Package Quick Start Guide Micro Docking Station www.CyberAcoustics.com CA P/N: DS1000 Rev. A00 2020-09 Quick-Start Guide CA Essential Micro Docking Station Micro Docking Station...

  • Page 3: Table Of Contents

    Table of Contents Pages Using the CA Essential Micro Docking Station 1 - 2 Using CA Essential Micro Docking Station with your Laptop 3 - 4 USB Type C AC Power Adapter Using CA Essential Micro Docking Station a USB Type C...

  • Page 4: Using The Ca Essential Micro Docking Station

    Using CA Essential Micro Docking Station - The CA Essential Micro Docking Station will get its power when connected to the Laptop’s USB Type C port. The functionality will vary based on the power available from the Laptop’s USB Type C port.

  • Page 5: Using Ca Essential

    Using CA Essential Micro Docking Station - Continued Step 1: Connect CA Essential Micro Docking Station to your Laptop. USB Type A USB Type C HDMI Connection Step 2: Connect your Peripherals to the Connection Gen 2 Port to a TV or Monitor CA Essential Micro Docking Station.
  • Page 6 CA Essential Micro Docking Station as well as slowly charge the battery on your laptop. Step 1: Connect CA Essential Micro Docking Station to your Laptop USB Type C AC Power Adapter as shown on. Step 2: Plug your Laptop USB Type C AC Power Adapter to a power source.

  • Page 7: Using Ca Essential

    Gen 2 Port to a TV or Monitor Step 5: Place your device supporting Wireless charging on the top of the CA Essential Micro Docking Station. Note: The CA Essential Micro Docking Station will support standalone charging of your smartphone when the CA Essential Micro Docking station is not connected to your Laptop.

  • Page 8: Power Adapter (Not Included)

    15W Power Adapter (Not Included) Step 1: Insert the USB Type C Charging Cable into the USB Type C port on the CA Essential Micro Docking Station. Step 2: Insert the other end of the USB Type C Charging Cable into the connector of a USB Type C 15W Power Adapter as shown and plug the USB Type C 15W Power Adapter into a power source.
  • Page 9 Gen 2 Port to a TV or Monitor Step 5: Place your device supporting Wireless charging on the top of the CA Essential Micro Docking Station. Note: The CA Essential Micro Docking Station will support standalone charging of your smartphone when the CA Essential Micro Docking station is not connected to your Laptop.

  • Page 10: Technical Speci Cations

    Technical Speci cation - USB Type A: Supports USB3.1 Gen1 and Gen2 - USB Type C: Supports USB3.1 Gen1 and Gen2 (Power Delivery Interface with USB Data and DP Alt mode) Speci cation - HDMI: Support HDMI2.0 with HDCP2.2 - Power Delivery: Supports PD3.0 without Fast Power Role Swap - Video output maximum resolutions: - 1 x HDMI 2.0b (2 lanes DP HBR3, 3840 x 2160 @ 60Hz) Video Output...

  • Page 11: Frequently Asked Questions

    - Make sure the device you are using supports Qi wireless charging. does not charge your phone. - Make sure the CA Essential Micro Docking Station is plugged into a power source. - Make sure your phone is centered in the center of the Circle Coil on the top of the CA Essential Micro Docking Station.
  • Page 12 No video on the monitor attached to the CA - Check the video connection cables. - Disconnect the monitor from the CA Essential Micro Docking Station and wait Essential Micro Docking Station. for 10 seconds, then re-connect the monitor again.
  • Page 13 Customer Support If you have a question about your CA Essential Micro Docking Station our Customer Support Team wants to assist you. Contact us at: www.cyberacoustics.com/support/contact Page 10...

  • Page 14: Safety And Precautions

    - Do not expose to excessive heat (e.g. from storage in direct sunlight, re or the like) - Use with Listed Information Technology Equipment only. 2020 Cyber Acoustics or its subsidiaries. All rights reserved. Cyber Acoustics and other trademarks are trademarks of Cyber Acoustics or its subsidiaries. Other trademarks may be trademarks of their respective owners.
  • Page 15 Safety and Precautions (Continued) Please take attention that changes or modi cation not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 18 of the FCC Rules. FCC Caution This transmitter must not be co-located or operating in conjunction with any other Antenna or transmitter.
  • Page 16 Safety and Precautions (Continued) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
