Bazooka BTM100 Installation Instructions

BTM100
BTM100

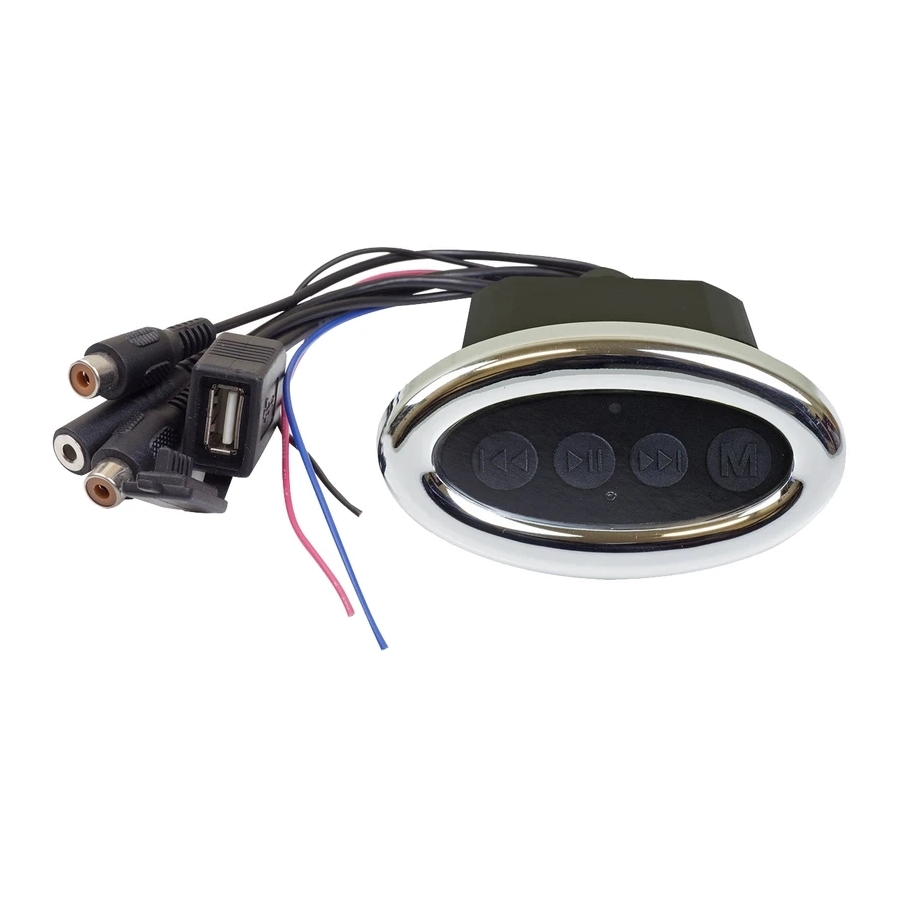

Bluetooth Module

Ground Wire

LED light status indicator:

LED Light Description
Blinking: Bluetooth module is pairing
Solid blue: Bluetooth module is paired
Blue/Red: Bluetooth module is in AUX input mode

Bluetooth module audio indicators:

Audio Response Description
Power on: Module is turned on
Power off: Module is turned off
Beep: After LED light stops blinking means module is paired
Beep: When play/pause button
module is unpaired from Bluetooth device.
Double Beep: When forward button
module has reached maximum volume.

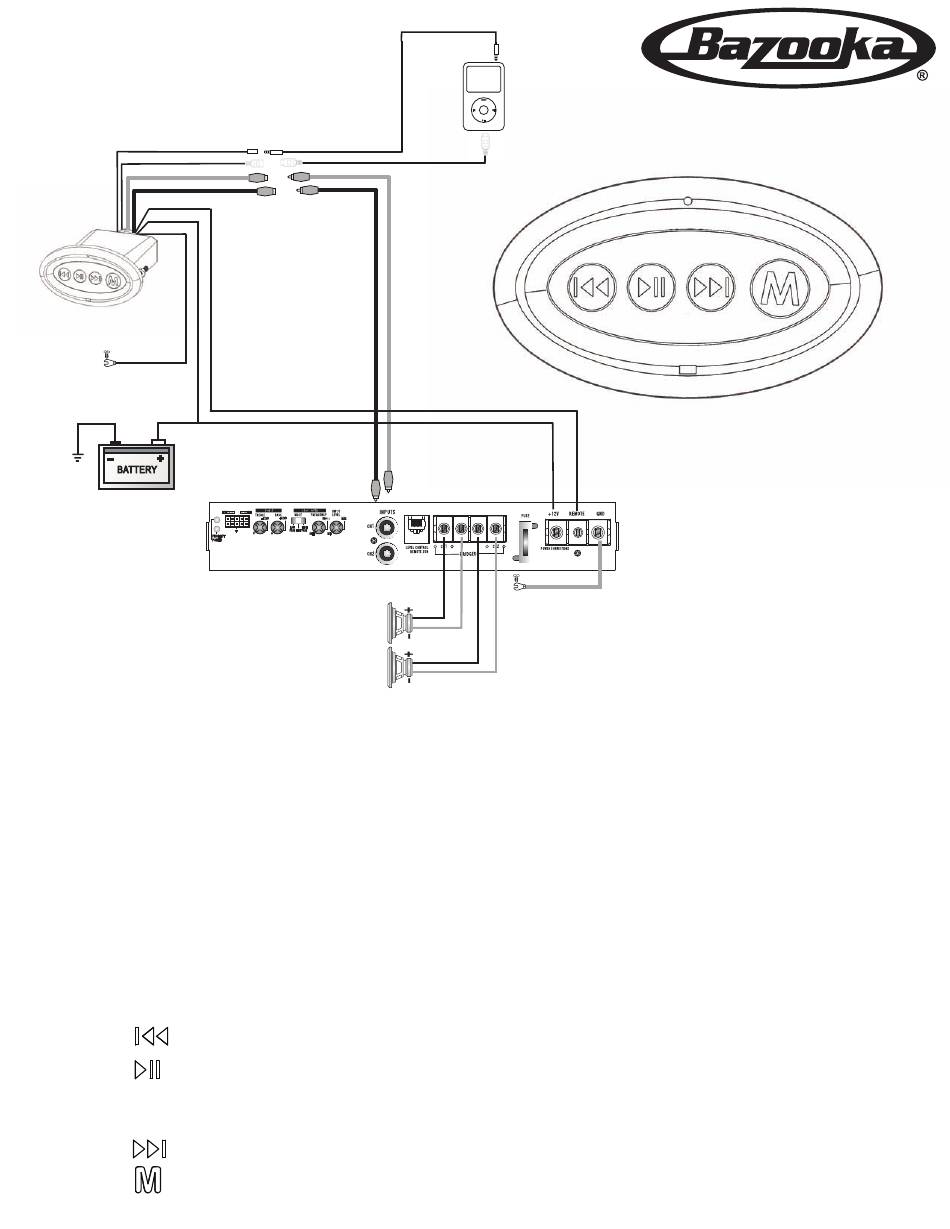

Button 1
Press to go back one track, Press and hold to decrease volume.
Button 2
Press to play/pause, Press to answer/hang up phone, Double
press for last number radial or open Siri on Iphone, Press and
hold to unpair bluetooth device.
Button 3
Press to go forward one track, Press and hold to increase volume.
Button 4
Press to power on, press while power is on to switch input between
aux. and bluetooth inputs, Press and hold to power off.
3.5 mm
Stereo input
Left & Right
line Level Out
Blue Remote Turn On Wire
Red12 vdc Positve
MAA265D
is pressed and held means

Aux Input

Device
USB Output For
Charging Only
is pressed and held means
Installation Instructions
