Summary of Contents for Burmester InWall
- Page 1 OWNER´S MANUAL inwall loudspeaker inwall...
-
Page 3: Table Of Contents
A brief Overview of the InWall Speakers . . . . . . . . . . . . . . . . . -

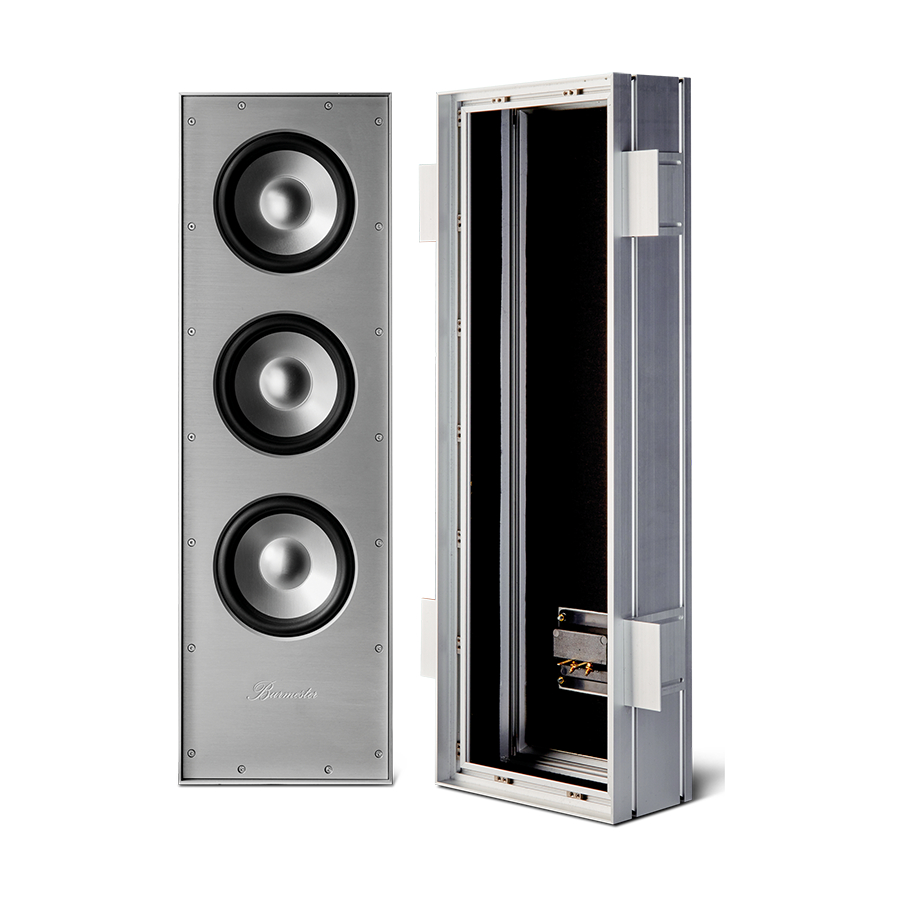

Page 5: A Brief Overview Of The Inwall Speakers
The Burmester InWall Woofer is a bass reflex loudspeaker with a nominal load capacity of 120 W and complements the existing InWall system in an ideal way and turns the setup into a complete 3-way system with the same acoustic niveau of a stand-alone speaker . -
Page 6: About This User Manual
AbOut thIS uSer mAnuAl About this user manual This user manual describes the operation of the InWall speakers by the user . In addition, it provides information on the installation and connection for installers of the system . Sections which exclusively concern the installer are marked accordingly in the heading . -
Page 7: Important Safety Information
Loud output signals may damage your hearing . ► Set the connected amplifier to a low volume before turning it on . Operation ► Do not listen to music at a high volume for extended periods . Very loud signals can cause hearing damage . InWall... -
Page 8: Unpacking The Speakers
. Instead, contact your authorized specialist dealer . Scope of delivery The scope of delivery includes: • InWall speaker • Speaker cover with fabric cover • Mounting kit: — 4 x mounting brackets —... -
Page 9: The Speaker At A Glance
SpeAkerS The speaker at a glance InWall Satellit 1 Tweeter 2 Low-mid speaker 3 Mounting bracket 4 Wiring terminal InWall... -
Page 10: Inwall Center
SpeAkerS InWall Center 1 Tweeter 2 Low-mid speaker 3 Mounting bracket 4 Wiring terminal... -
Page 11: Inwall Woofer
SpeAkerS InWall Woofer 1 1 x woofer, 2 x passive driver 2 Mounting bracket 3 Wiring terminal InWall... -
Page 12: Installation Of The Speakers (For Installer)
Correct positioning The following figure shows the positioning of the loudspeakers in the wall recommended by Burmester . The tweeters of the loudspeakers should be at ear level . Step 1 - Installation of the framework . Decouple the framework of all adjacent surfaces . Various solutions are available from different manufacturers . - Page 13 Step 3 - Fill all hollow spaces with insulating material Filling all hollow spaces serves, among other things, to avoid cavity resonances which might be caused by the InWall loudspeaker . Please save the area where the InWall loudspeaker is to be installed .
- Page 14 unpAckIng the SpeAkerS Step 4 - Mounting the mounting kit Please pay attention that there are different ways of mounting the speaker in the wall . Depending on your decision the correct position of the mounting brackets must be chosen . Inserting the locknuts: Positioning of the mounting brackets: Fastening the mounting bracket:...
- Page 15 SpeAkerS Adjust the distance of the pink colored surface of the mounting brackets so that the surrounding edge of the InWall loudspeaker is flush with the wall surface after installation . Step 5 - Installing and connecting the speaker cables Please pay attention to the polarity of the wiring! Use the supplied socket wrench for installation .
- Page 16 Step 6 - Mounting the InWall speakers in the wall Rear mounting You can mount the InWall speakers on the rear wall . Use the mounting brackets as shown in the following pictures . The mounting brackets have slots with which the InWall loudspeaker is aligned in such a way that the front frame is flush with the wall .
- Page 17 Installation from the front into a cutout (for double-skinned walls and retrofitting) The InWall speaker can be mounted from the front into a cutout . Cut a cutout using the appropriate dimensions (see “Cutout dimensions (mm)” on page 21) . If no additional plasterboard is planned in front of the mounting bracket, it must be countersunk at least 3 mm deep .
- Page 18 (mm)” on page 21) . Mount the plasterboard to the framework according to the manufacturer’s instructions . nOte: Cut-out templates for marking the cutout are included in the scope of delivery . Plasterboard with cutout for the InWall loudspeaker: Attachment of the plasterboard to the framework:...
- Page 19 . Step 9 - Choosing the front cover The InWall speaker offers two possible front covers . These are attached to the speaker front by integrated magnets . The following variations are possible: 1 .
-
Page 20: Dimensions
DImenSIOnS Dimensions Speaker dimensions (mm) Satellit: Center: Woofer:... -
Page 21: Mounting Brackets Dimensions
DImenSIOnS Mounting brackets dimensions (mm) Cutout dimensions (mm) Cutout Cutout minimum Dimensions minimum dimensions for InWall speaker for InWall speaker for double-skinned walls and retrofitting InWall... -
Page 22: Connecting The Loudspeakers (For Installers)
. Connection cables Burmester recommends the use of cables with a large cross-sectional area to connect the speakers to the power amplifiers . The large cable cross-sectional area preserves the damping factor of the amplifiers for optimal speaker control . -
Page 23: Individual Connection
(fOr InStAllerS) Individual connection This is the connection method recommended by Burmester . Each speaker is connected to a separate amplifier . The amount of amplifiers needed equals the amount of speakers that are built into the wall . -
Page 24: Operating The Loudspeakers
. Warranty All Burmester loudspeakers come with a five-year warranty . The warranty requires proper connection without overloading, the mechanical integrity of the loudspeakers, and the submission of a warranty claim . -
Page 25: Troubleshooting
700 x 220 x 100 mm Weight 8 kg Woofer Transmission range (±3 dB) 38 Hz - 150 Hz Rated power 120 W Efficiency (2 .83V, 1m) 89 dB Impedance 3 Ω Dimensions (WxHxD) 220 x 700 x 100 mm Weight 10 kg Subject to technical changes InWall... - Page 28 Burmester Home Audio GmbH Wilhelm–Kabus Straße 47 ∙ 10829 Berlin, Germany www.burmester.de BA-Version 1.0 / 1611...
