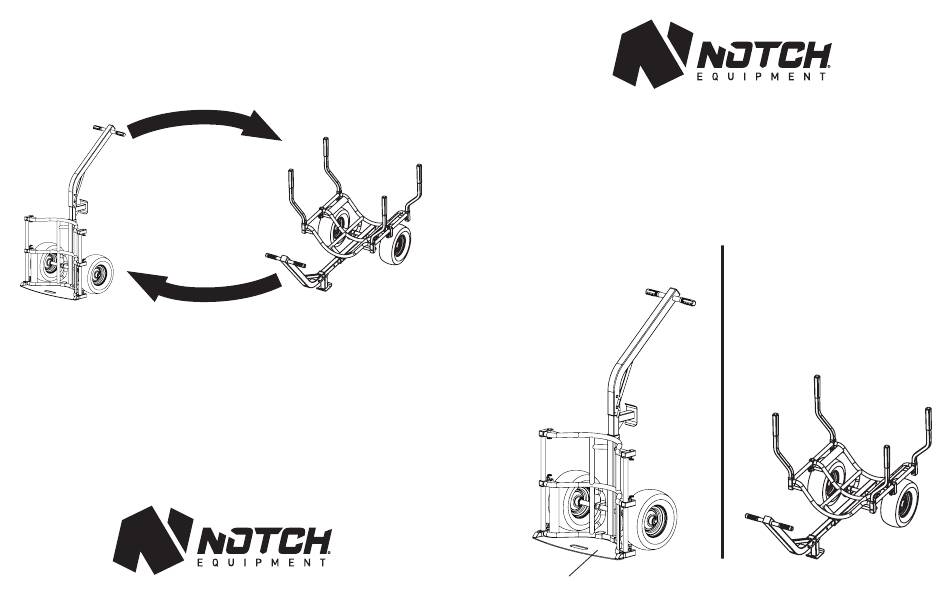

MODULAR CART
CONVERSION INSTRUCTIONS
DOLLY TO CART CONVERSION
1. Remove uprights (d) from bottom frame (a)
2. Insert lift-plate (f) into bottom frame (a)
3. Release and rotate top handle (b), ensure
the handle is facing towards the operator
Made in Taiwan to Notch Equipment's exact specifications.
Notch Equipment, 496 Gallimore Dairy Road, Ste. D, Greensboro, NC 27409
NotchEquipment.com PID:NMC20171110
CART TO DOLLY CONVERSION
1. Release and rotate top handle (b),
ensure the handle is facing up
2. Remove lift-plate (f) from bottom frame (a)
3. Insert uprights (d) into bottom fame (a)
MODULAR CART
40708
DOLLY CONFIGURATION
Lift-plate
sold separately
CART CONFIGURATION
Advertisement
Table of Contents
Summary of Contents for Notch 40708
- Page 1 3. Release and rotate top handle (b), ensure the handle is facing towards the operator 3. Insert uprights (d) into bottom fame (a) Lift-plate sold separately Made in Taiwan to Notch Equipment’s exact specifications. Notch Equipment, 496 Gallimore Dairy Road, Ste. D, Greensboro, NC 27409 NotchEquipment.com PID:NMC20171110...
- Page 2 A (1) B (1) C (1) MODULAR CART MODULAR CART Allen wrench ASSEMBLY INSTRUCTIONS included PARTS LIST CART CONFIGURATION (Horizontal transportation) D (4) E (1) F (1) G (2) H (4) 1. Unpack contents of box onto a flat surface 2.
