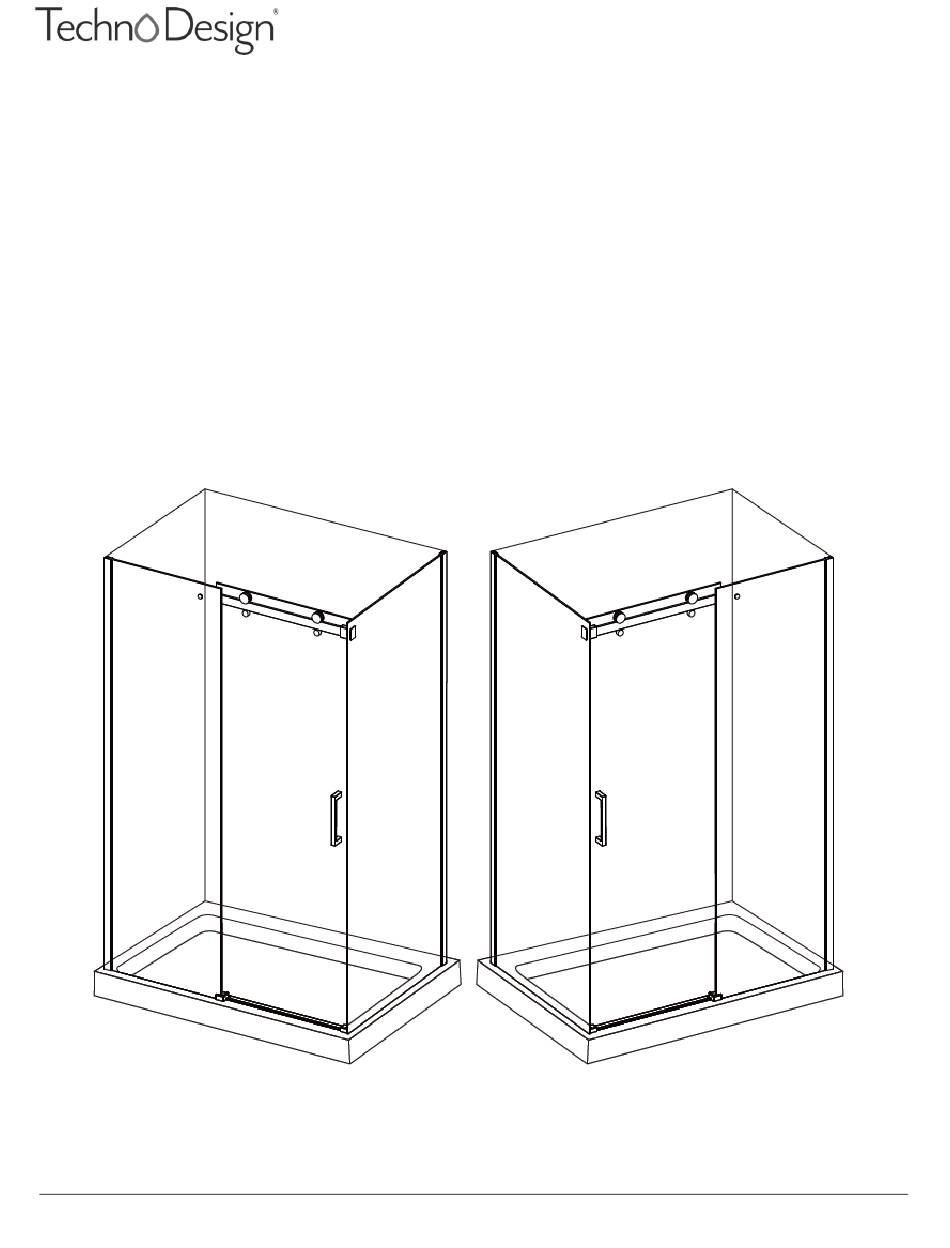

Portes et panneaux de douche rectangulaire
INSPIRATION & CELEBRATION
Rectangular Shower Doors and Side Panels
MANUEL D'INSTALLATION
INSTALLATION MANUAL
MODÈLES | MODELS:
ISD48CC - ISD60CC - ISP32CC - ISP36CC - CSK4832 - CSK4836 - CSK6032
FABRIQUÉE EN CHINE ET IMPORTÉE PAR | MADE IN CHINA AND IMPORTED BY
CISDP201612-02
INDUSTRIES TECHNOFORM LTÉE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Technoform ISD48CC
Summary of Contents for Technoform ISD48CC
- Page 1 Rectangular Shower Doors and Side Panels MANUEL D'INSTALLATION INSTALLATION MANUAL MODÈLES | MODELS: ISD48CC - ISD60CC - ISP32CC - ISP36CC - CSK4832 - CSK4836 - CSK6032 FABRIQUÉE EN CHINE ET IMPORTÉE PAR | MADE IN CHINA AND IMPORTED BY CISDP201612-02 INDUSTRIES TECHNOFORM LTÉE...
- Page 2 • Ne PAS utiliser de la force excessive pour ouvrir et fermer les panneaux de verre. • This guide covers the installation process as well as the maintenance of your new Technoform shower door. Please read it carefully prior to installation. You should then keep it in a safe place for future reference.
- Page 3 Clef d'ajustement | Adjustement key Roulette | Roller Vis plate Robertson M4X12 flat head screw Joint d'étanchéité pour bas de porte | Bottom Rail | Track door gasket CISDP201612-02 ( 450.699.2424 – 1 877.377.4494 7 450.699.8484 - info@technoform.ca ü www.technoform.ca...
- Page 4 19). We recommend that you put a drop of silicone prior to permanently fixing them in place. D. Secure the wall jambs (no. 1) using M4X35 screws (no. 20). CISDP201612-02 ( 450.699.2424 – 1 877.377.4494 7 450.699.8484 - info@technoform.ca ü www.technoform.ca...
- Page 5 (no. 2). Complete the assembly by fixing one of the track end blocks (no. 14) on the side panel (no. 2) using M4X12 screws (no. 25). CISDP201612-02 ( 450.699.2424 – 1 877.377.4494 7 450.699.8484 - info@technoform.ca ü www.technoform.ca...
- Page 6 19). We recommend that you put a drop of silicone prior to permanently fixing them in place. C. Fix the track end block (no. 14) using M4X35 screws (no. 20A) CISDP201612-02 ( 450.699.2424 – 1 877.377.4494 7 450.699.8484 - info@technoform.ca ü www.technoform.ca...
- Page 7 D. Déposez la porte (no. 3) sur le rail (no. 13). Roulette (no. 12) Roller (no. 12) Panneau fixe (no. 22) Fixed panel (no. 22) Panneau de côté (no. 2) Side panel (no. 2) CISDP201612-02 ( 450.699.2424 – 1 877.377.4494 7 450.699.8484 - info@technoform.ca ü www.technoform.ca...
- Page 8 F. Put the sliding block (no. 10) in place. Fix the end block (no. 9) and sliding block (no. 10) using M4X35 screws (no. 20A). We recommend that you put a drop of silicone prior to permanently fixing them in place. CISDP201612-02 ( 450.699.2424 – 1 877.377.4494 7 450.699.8484 - info@technoform.ca ü www.technoform.ca...
- Page 9 (no. 16). Percez les trous à partir de l'intérieur de la douche. Intérieur de la douche. Drill holes from the inside of the shower. Inside the shower. CISDP201612-02 ( 450.699.2424 – 1 877.377.4494 7 450.699.8484 - info@technoform.ca ü www.technoform.ca...
- Page 10 IMPORTANT : Le silicone doit être appliqué à partir de l'extérieur de la douche seulement. HEURES IMPORTANT: The silicone must only be put from the outside of the shower. HOURS CISDP201612-02 ( 450.699.2424 – 1 877.377.4494 7 450.699.8484 - info@technoform.ca ü www.technoform.ca...
-
Page 11: Nettoyage | Maintenance
Our products are guaranteed against any manufacturing defect from the date of purchase indicated on the consumer sales receipt. Technoform Industries Ltd offers a limited warranty of ten (10) years on its shower doors. This warranty is limited to the original owner and is not transferable to another consumer. The warranty is applicable for the product only and does not cover labour charges, travel expenses, the cost of installation or removal, as well as carrier fees.
Need help?
Do you have a question about the ISD48CC and is the answer not in the manual?
Questions and answers
what are the dimensions and placing of the hole in the panel that attaches to the wall the same side as the sliding glass door
The Technoform ISD48CC panel attaches to the wall using wall jambs (no. 1). For installation:
- Drill 8 holes using a 3.2 mm (1/8'') bit at marked positions in the drywall.
- Insert plastic anchors (no. 19) into the holes.
- The center of the wall jamb (no. 1) must be positioned 1 inch from the front edge of the shower base.
- The wall jamb is fixed with M4X35 screws (no. 20).
- Additionally, drill 4 equally spaced holes of 3.2 mm (1/8'') inside each wall jamb to secure the structure.
Exact panel dimensions are not provided.
