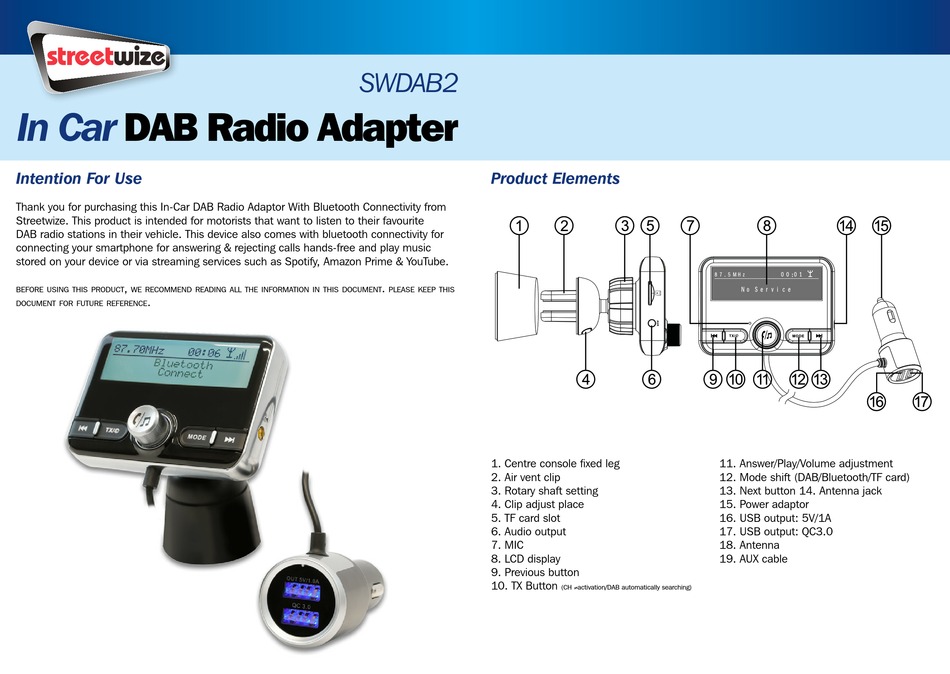

DAB Radio Adapter
In Car
Intention For Use

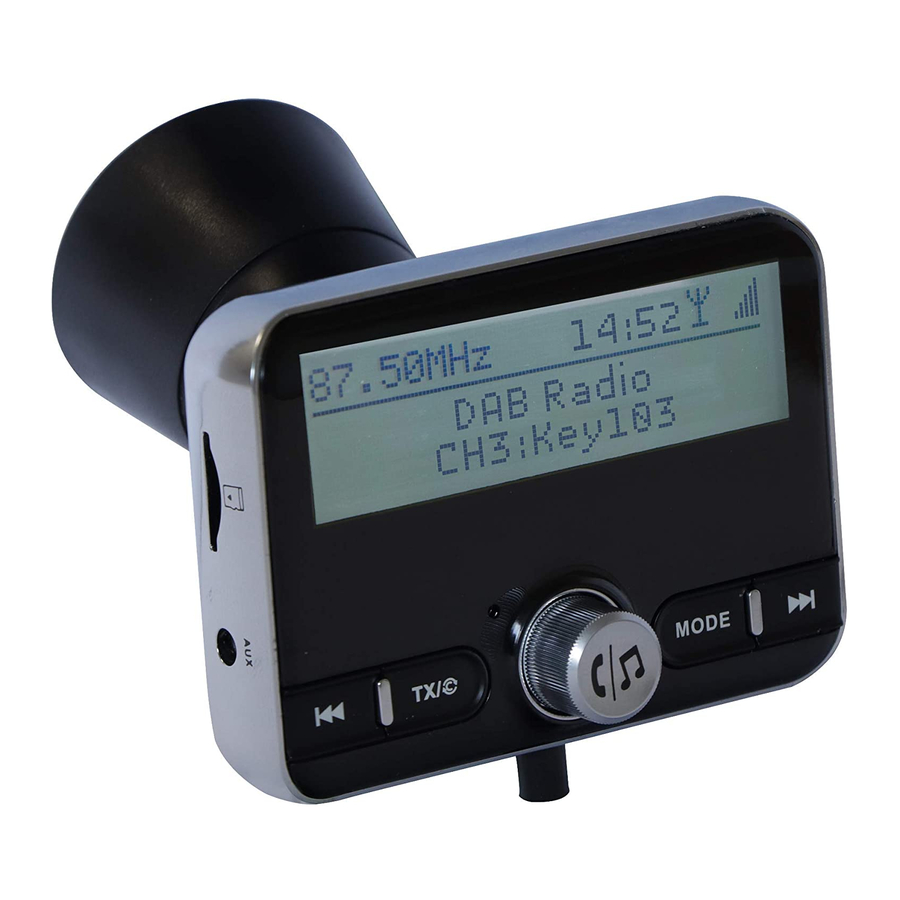

Thank you for purchasing this In-Car DAB Radio Adaptor With Bluetooth Connectivity from
Streetwize. This product is intended for motorists that want to listen to their favourite
DAB radio stations in their vehicle. This device also comes with bluetooth connectivity for
connecting your smartphone for answering & rejecting calls hands-free and play music
stored on your device or via streaming services such as Spotify, Amazon Prime & YouTube.
,
before using this product
we recommend reading all the information in this document
.
document for future reference
SWDAB2
Product Elements
.
please keep this
1. Centre console fixed leg
2. Air vent clip
3. Rotary shaft setting
4. Clip adjust place
5. TF card slot
6. Audio output
7. MIC
8. LCD display
9. Previous button
10. TX Button
11. Answer/Play/Volume adjustment
12. Mode shift (DAB/Bluetooth/TF card)
13. Next button 14. Antenna jack
15. Power adaptor
16. USB output: 5V/1A
17. USB output: QC3.0
18. Antenna
19. AUX cable
(CH ≠activation/DAB automatically searching)
Advertisement
Summary of Contents for Streetwize SWDAB2
- Page 1 Thank you for purchasing this In-Car DAB Radio Adaptor With Bluetooth Connectivity from Streetwize. This product is intended for motorists that want to listen to their favourite DAB radio stations in their vehicle. This device also comes with bluetooth connectivity for connecting your smartphone for answering &...
-
Page 2: Setup And Installation
Set Up & Installation Mounting the DAB Adaptor To operate this DAB adaptor, you will need to securely fit the antenna Vent Clip onto your vehicle’s windscreen, and then connect the antenna to the To attach the vent clip, loosen the rotary shaft, DAB adaptor via anthenna jack. - Page 3 Using The DAB Adaptor Using The DAB Adaptor Setting FM Frequency To Link The DAB Adaptor 1. With the DAB adaptor switched on, press & hold the TX button for the adaptor to prompt you to set the FM frequency to link the adaptor to your vehicle’s FM stereo. See Figure 1.
- Page 4 Connecting Your Smartphone to the DAB Adaptor Via Bluetooth Handsfree Calling Table 1 To link your smartphone or tablet device to the DAB adaptor via Bluetooth, please follow When your phone is connected Action Command the instructions below: via Bluetooth, you can answer, Answer incoming call reject, hang up and redial the Short press...
-
Page 5: Technical Specification
FM Frequency 87.5MHx to 108MHz Emission distance 0.5m to 2m Bluetooth emission distance <10m Streetwize: Ashburton Road West, Trafford Park, Manchester, M17 1RY For Product Support: For Trade Enquiries: E: support@streetwizeaccessories.com E: sales@streetwizeaccessories.com T: +44 (0)161 447 8597 T: +44 (0)161 447 8580 www.streetwizeaccessories.com...
