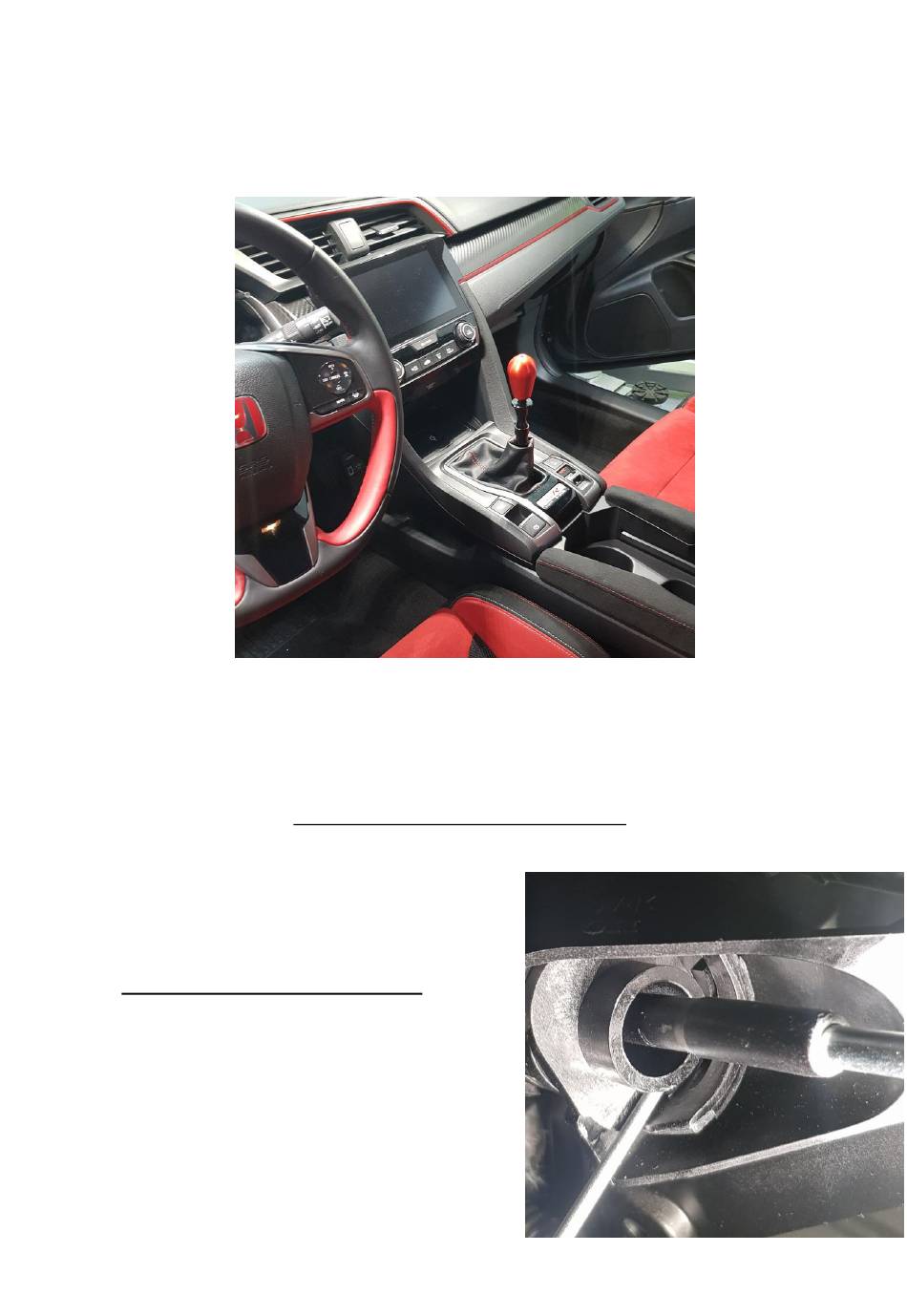

CAE ULTRA-SHIFTER
The shifter is intended for cars with complete interior equipment.
The center console must be removed and reinstalled for installation.
center console needs to be trimmed just minimally
Lubricate all moving parts regularly with good spray grease, e.g.
To clean the aluminum parts, we recommend commercially available alcohol.
Never spray degreaser into the bearing
points, this will cause the bearings to seize
Removing the stock shifter:
• Remove the center console completely.
Shift the transmission into neutral
• Detach the shift cables from the balls and
the bulkhead. To release the cables from the
shifter housing, the pawl must be pushed
back, then turn the cables 90º and remove
• Unscrew and remove the original shift lever
f
t
i
n
g
T
e
f
t
i
n
g
T
e
Installation Manual
Lift the rubber caps on the ball heads.
We recommend Würth HHS 2000
immediately
them
c
h
n
o
l
o
g
c
h
n
o
l
o
g
HONDA Civic FK8 Type R
for
y
G
m
b
H
y
G
m
b
H
Alte Bottroper Strasse 103
45356 Essen
Phone +49 201 8777 802
e-mail: service@cae-racing.de
Advertisement
Summary of Contents for CAE ULTRA-SHIFTER
- Page 1 45356 Essen Phone +49 201 8777 802 e-mail: service@cae-racing.de Installation Manual CAE ULTRA-SHIFTER HONDA Civic FK8 Type R The shifter is intended for cars with complete interior equipment. The center console must be removed and reinstalled for installation. center console needs to be trimmed just minimally Lubricate all moving parts regularly with good spray grease, e.g.
- Page 2 Machining the shift cables • The original ball sockets of the shift cables must be sawn / separated exactly 12mm away from the plastic part. • Deburr the 6mm core of the shift cables.
- Page 3 • Push the supplied steel ball pans onto the ropes and tighten the grub screws; here too we recommend using a small drop of screw adhesive. • In neutral, at least space must remain on the ball socket "W" to the black sleeve CHECK: Push the cable all the way in...
- Page 4 > 80mm bar at the back Pay attention to the correct alignment of the base bars, see picture • Position the CAE shifter and insert the shift cables into the shifter housing; Immediately insert the cables into the respective bracket and fasten by turning 90º.
- Page 5 Pay attention to the position of the lugs on the shift cables:...
- Page 6 • Then place the CAE Shifter on the bars and screw it tight with the 4 nuts. • Grease the ball pans and press them onto the balls of the gear lever and selector lever • The pan of the selector cable "W" must fit without moving the lever or the cable, otherwise readjust the spring stop or change the position of the ball socket on the selector cable.
- Page 7 Adjustment of the Shifter - 6-speed • • Adjust / check the middle position of the shift lever, it should be inclined approx. 3-5º to the left, this is position 3/4 (middle position) The side Unibal connecting rod should not be adjusted!! •...
- Page 8 • Now use the gear lever to shift gear in level 1/2 and adjust the stop screw until the gears in level 1/2 can be changed cleanly. (When the gear is engaged, the screw has no contact with the bolt (approx. 0.5 mm play) •...
- Page 9 Mount the cotter clips on the ball sockets: Check all functions and settings in the driving test and adjust if necessary. Incorrect or inaccurate setting can lead to gearbox damage, damage to the shifter or the shift cables !!! For an optimal shifting experience, the shifter must be set correctly.
- Page 10 If problems occur during installation, please contact us. We rely on your feedback to continuously optimize our products. CAE wish you a good trip If the shifter is being reassembled, the supplied connection sleeves hast o be mounted as shown...
