- Page 1 MPX-S Multimode network splitter User's manual Author A.Tomassini Version 3.1.0 - 21/03/2017 Copyright © 2017 ITEL SNC...
-
Page 2: Table Of Contents
MPX-S Multimode network splitter Table of contents Section 1 Introduction 1 List of changes ........................... 4 2 Warnings ........................... 5 3 Front panel ........................... 6 4 Rear panel ........................... 6 5 EXT CNT connector ........................... 7 6 Editing and navigation ........................... - Page 3 Section Introduction...
-
Page 4: Section 1 Introduction
MPX-S Multimode network splitter Introduction SPLIT MKII is an audio switcher for splitting advertising or regular programming over different areas. It is realized with fully solid state switches in order to maximize reliability. It can handle, using two 8- channels boards, up to 16 different zones and allows two network inputs. -
Page 5: Warnings
• The power cutting device is the power cord, so this should be easily accessible and the socket must be positioned close to the apparatus. • Any operation involving the access to internal parts must be performed only by trained service personnel. © 2017 ITEL SNC... -
Page 6: Front Panel

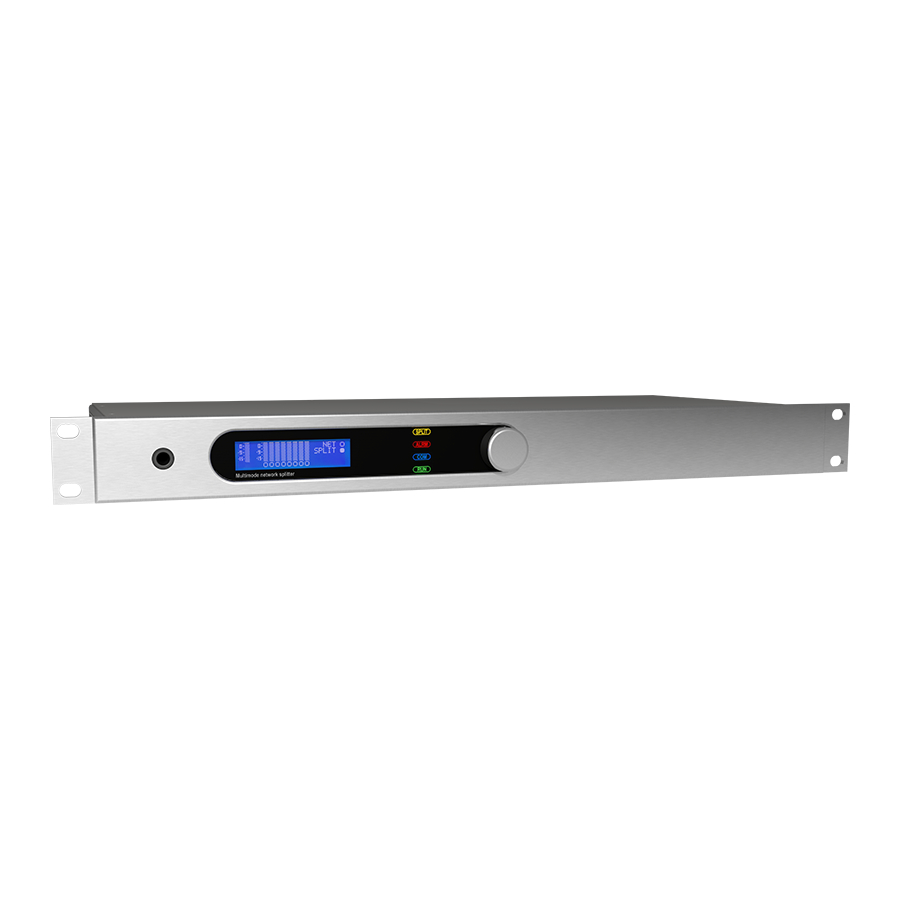

MPX-S Multimode network splitter Front panel Front panel leds SPLIT: lit when network splitting is taking place. ALRM: alarm condition detected. COM : data communication active RUN: system heartbeat. Menu navigation and parameters editing is done through the front panel knob. -
Page 7: Ext Cnt Connector
The Mpx output switching, from network to local mpx, is done when the "Par" control is selected under System menu > Split Control and when its corresponding switching control input is driven to ground. Yellow pins are the switching controls for module 1, red pins are for module 2. © 2017 ITEL SNC... -
Page 8: Editing And Navigation
MPX-S Multimode network splitter Editing and navigation Menu navigation and parameters editing is done by the front panel knob. On the main menu which appears after firmware boot, is possible to select the submenu for the various settings. Pressing the knob, will enter the selected submenu. - Page 9 Inside any submenu, pressing the knob for more than 3 seconds, will cause a jump to the main menu. When pressing the knob for 1 seconds, will appear the Headphone Level regulation. © 2017 ITEL SNC...
- Page 10 Section Front panel display...
-
Page 11: Section 2 Front Panel Display
Output was switched back to main network input, because of muting condition detected. 2.1.2 Level monitor Fine MPX input level monitor for network inputs and splitting outputs, RDS and MPX Audio monitor MPX stereo and RDS decoder monitor menu. © 2017 ITEL SNC... -
Page 12: Mpx Source Selection And Stereo Levels
MPX-S Multimode network splitter 2.2.1 Mpx source selection and stereo levels MPX input selection and decoded audio level display. 2.2.2 RDS flags On this page are displayed the main RDS parameters: :Program service name :Program identification :Program type :Traffic program :Traffic announcement on air. -
Page 13: Af Tables
The stereo decoder is active when this value is above 4KHz. Pilot fq.Err Frequency error on pilot tone. Rds level RDS subcarrier level Alarms If one or more alarms are active, the front panel led is lit and, into this page, the alarm description is displayed. © 2017 ITEL SNC... -
Page 14: System Setup
MPX-S Multimode network splitter Using the "RESET" function, it is possible to clear the stored alarms, if they are not longer active. System setup 2.4.1 Display and Mpx inputs Contrast display contrast setup MpxInput main network input selection. MpxAutoSw Min Lev dB: enable/disable channel auto-return if muted input is detected. -
Page 15: Parallel Status
CIDR notation. APPLY apply current setup and restart network. 2.4.5 System info Sys: operating firmware revision Hw: hardware revision BL: bootloader revision SN: serial number. 2.4.6 System manteinance From this menu is possible to reboot the equipment. © 2017 ITEL SNC... -
Page 16: Headphones Level
MPX-S Multimode network splitter Headphones Level The headphone level can be adjusted using the front panel knob. Pressing the knob for more than 1 second, will show the adjustment level menù. After 3 seconds the level menù will close automatically.
