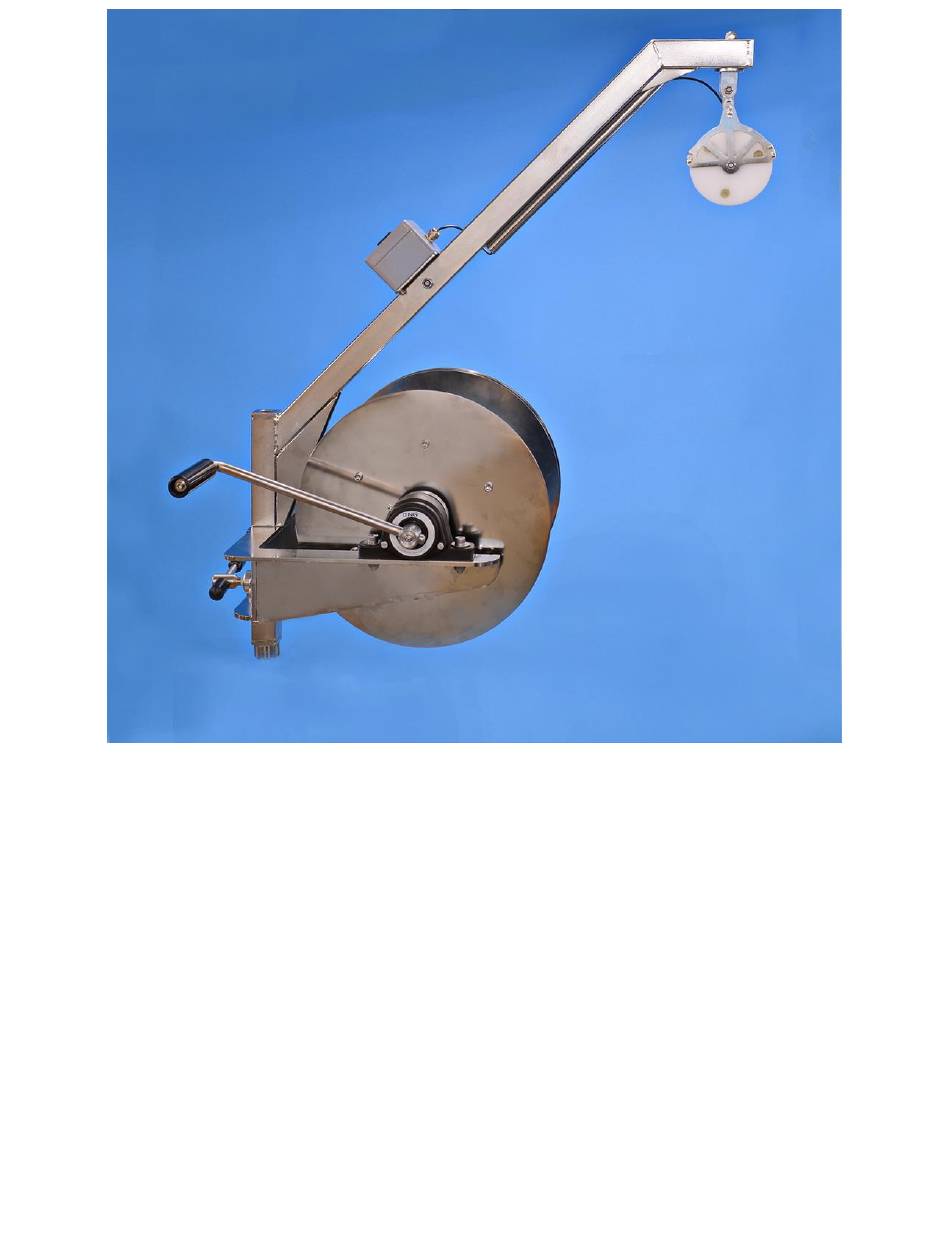

- Page 1 Portable Winch Model 30.040 Manual Denmark A/S Research Equipment Limnology Oceanography Hydrobiology ⚫ ⚫...
- Page 2 Use of the winch may under certain circumstances, constitute a potential risk of injury. Take serious precautions to avoid any accidents. KC Denmark A/S is not, and cannot be held, responsible for any damage(s) made to equipment or to operators who ignore safety precautions or because of misuse, any modifications or wrong operation.
- Page 3 This model offers several options for adjustment, so it will fit for almost any mounting. The bracket for 30.040 comes without the circular plate shown on the photo. Remove the plate on the drum. Insert the wire as shown and fasten it to the bolt using an appropriate eye at end of the wire.
-
Page 4: Operating The Winch
Never attempt catching the handle to stop the winch, you must only use the brake handle. For a wire speed exceeding 3 m/sec. approx, the counter may have an incorrect read-out of length. 30.040 – Portable Winch - Manual... -
Page 5: Maintenance
The counter has an internal Lithium battery with a battery life up to 7 years. Maintenance A bearing housing is located on left and right side of the winch. Grease at the least every 6 months or as required. 30.040 – Portable Winch - Manual... -
Page 6: Battery Replacement
1 pc Ø25 mm. Shaft required for mounting on bulwark: Ø20 AISI 316 stainless steel Weight and dimensions L x W (depth) x H: 58 x 76 x 95 cm Weight, exclusive wire Approx.: 20 kg 30.040 – Portable Winch - Manual... - Page 7 Oceanography Hydrobiology ⚫ ⚫ sales@kc-denmark.dk http://www.kc-denmark.dk/ E-mail: website: Holmbladsvej 17-19, DK 8600 Silkeborg, Denmark. Tel. +45 86 82 83 47 Bank: Sydbank. SWIFT: SYBKDK22 - IBAN DK5070460000104832 VAT no. DK 29 61 96 62 30.040 – Portable Winch - Manual...
